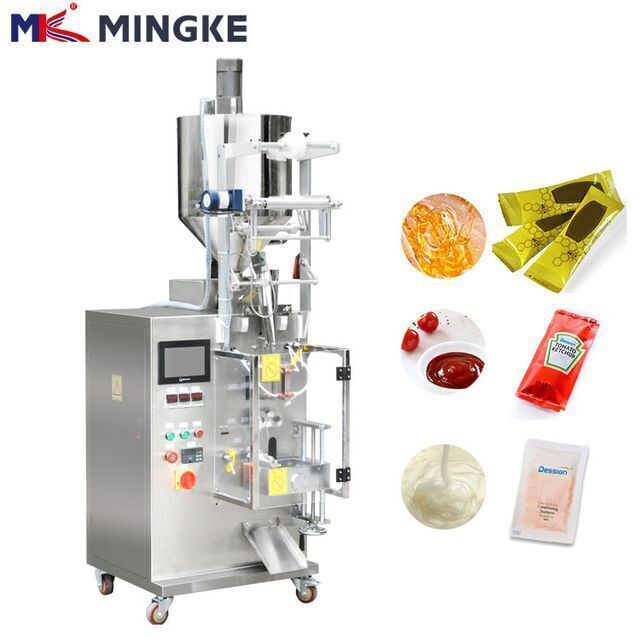

Automatic 3/4 sides sealing sauce honey sachet ketchup liquid packing machine
-
Supplier: Guangdong Mingke Packaging Machine Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Wency Huang -
Price: $3000.00 /set -
Min. Order: 1 set
| Certification: | CE/ISO; | Packing speed: | 30-60 Bags/min; |
| Application: | Chemical,Food,Machinery & Hardware,Liquid sauce honey ketchup; | Sealing type: | 3/4 sides sealing; |
| Condition: | New; | Machinery Test Report: | Provided; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Production Capacity: | 50bag/min; |
| Showroom Location: | United States,Thailand,Malaysia; | Bag size: | L:40-140mm W:30-110mm; |
| Automatic Grade: | Automatic; | Local Service Location: | United States,Thailand,Malaysia; |
| Material: | Product touching parts using 304 Stainless Steel; | Packaging Detail: | waterproof PO film+wooden case 1) Dedust & Cleaning 2) Lubricate Drive Parts 3) Divide Machine Into Modules 4) Wrap Modules With Plastic Film 5) Packing Modules Into Plywood Cases 6) Mark Shipping Mark In The Cases If Any Special Requirements, We Will Pack It As Requested.; |
| After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; | Dimension(L*W*H): | L800*W700*H1600; |
| Marketing Type: | Ordinary Product; | Core Components: | Motor,PLC; |
| Power: | 1200w; | Video outgoing-inspection: | Provided; |
| Driven Type: | Electric; | Packaging Type: | Bags,sachet; |
| Warranty of core components: | 1 Year; | Packaging Material: | Plastic,paper/PE,Polyester/aluminum foil/PE etc.; |
| Key Selling Points: | High-accuracy; | After-sales Service Provided: | Engineers available to service machinery overseas,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support; |
| Voltage: | 220V/50HZ; | Place of Origin: | Guangdong China; |
| Brand Name: | Mingke; | Warranty: | 1 Year; |
| Applicable Industries: | Manufacturing Plant,Food & Beverage Factory,Food Shop,Food & Beverage Shops; | Function: | FILLING,Sealing,cutting,lot number; |
| Supply Ability: | 100 Set/Sets per Month; | Type: | sauce honey sachet ketchup liquid packing machine,Multi-Function Packaging Machine; |
| Port: | Guangzhou; |
Automatic 3/4 sides sealing sauce honey sachet ketchup liquid packing machine
| Type | MK-60Y | MK-60YZ | MK-60YB |
MK-60YBR |
MK-388Y |
| Packaging speed | 30-60bags/min | 30-60bags/min | 30-60bags/min | 30-60bags/min | 20-60bags/min |
| Measuring range | 1-70ml | 1-70ml | 1-90ml | 1-80ml | 30-500ml |
| Bag size(mm) |
L:40-140 W:30-110 |
L:40-140 W:30-110 |
L:40-160 W:30-110 |
L:40-160 W:30-110 |
L:40-200 W:30-150 |
| Max film | 220mm | 220mm | 240mm | 240mm | 320mm |
| Sealing type | 3/4 sides sealing | 3/4 sides sealing | back sides sealing |
back sides sealing (round corner bag) |
back sides sealing |
| Power | 1200W | ||||
| Net weight | 200kg | 250kg | 250kg | 250kg | 350kg |
| Voltage |
220V,380V/50Hz,60Hz |
||||
| Packaging film |
Paper/PE,PP/Aluminum foil(all heating material) |
||||
| Overall size(mm) | L800*W700*H1600 | L800*W700*H1600 | L800*W700*H1700 | L800*W700*H1800 | L1000*W800*H1900 |
Scope of application:
Liquid packing machine is suitable for pharmacy,food,household chemicals ,pesticides materials,such as shampoo,body foam,oil grease,cosmetics,chemical fertilizer,seasoning oil,chili sauce,ketchup,etc.
Feature:
1.Automatic granule packing machine can finish the process like conveying bag,bag making,filling,weighing,sealing,cutting,counting,lot number,etc.
2.Bilingual display screen control system,stainless steel cabinet.Set up the required data(include filling,weighing,bag size,etc) in the visuable settings,the control system automatic optimization match with all the program so that achieve the best packing speed precisely.
3.Stepper Motor control,this system has the advantage of precise,needless to adjust the other parts.
4.It has color system controller,so that can get the complete trade mark design.
5.Suitable for the complex film and tin foil and other packing material.Fine packaging performance,low noise,clear sealing texture and strong sealing performance.
6.Mitsubishi PLC control,customize details according customer’s requirement.
Optional Equipment:
Thermal Printer

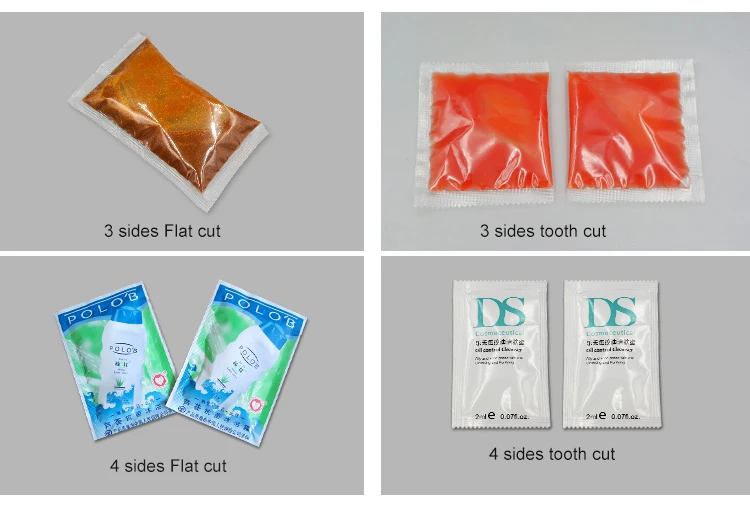

Flat cutter,Tooth cutter,continuous point cutter
1.14 years experience,quality assurance and solving solution will be available within 24 hours.
2.CE ROHS ISO900:2008 standards,all of the machines through 6 times test before selling.
3.MINGKE engineers & technician are available send to your countries for services if you agree pay the expenditure.
4.The machine will have 1 year warranty of machine,2 years warranty of electric part. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
Please send us a message on the web of alibaba if you are interested in the product,we will reply you soon.If you want to learn more about us,please click on our home page
1. Q : Which packing machine is suitable for us ?
A : Dear, before quoting, please kindly consult us and providing:
1.your product name,product picture.
2.your bag size,such as bag width and bag height.
3.ideal bag shape.
For there is over 100 kinds of packing machine,different on bag size.
In order to recommend u the best,we need know that information.
If u just start this business,no bag size,we can help u to find similar weight bag for your reference.
2. Q: Is that packing machine ok for our product?How to operate it?
A : If you donnot mind,you can send u sample.we will use existing packing machine to test for u.
During that time,we will take video and clearer picture for you.If chance,we can take video online and show u.
3. Q: Is that pack many bag size in the same packing machine?
A:That is the common question from our customer.Every packing machine has its range for bag length and bag width.can u send us full details,i will calculate for u and give u exact reply.
