trunk type wire take-up machine XBXJ 400

Product details
Key Selling Points:Competitive Price;Local Service Location:None;
Brand Name:Sanlian;product:trunk type wire take-up machine XBXJ 400;
Marketing Type:Hot Product 2019;After-sales Service Provided:Engineers available to service machinery overseas;
Warranty:1 year;Showroom Location:None;
Application:wire take-up;Dimension(L*W*H):according to your demand;
Place of Origin:Jiangsu China;Supply Ability:200 Set/Sets per Year;
Warranty of core components:1 Year;Applicable Industries:Manufacturing Plant,Construction works ;
Port:shanghai;Core Components:PLC,Bearing,Gearbox,Motor;
Power:according to your demand;Condition:New;
Machinery Test Report:Provided;Voltage:according to your demand;
After Warranty Service:Video technical support,Online support;Packaging Detail:Standard (water proof,damp proof,rust proof) wooden packing for export;
Weight:according to your demand;Payment Terms:L/C,T/T;
Video outgoing-inspection:Provided;



Trunk type wire take-up machine XBXJ 400



1. Detailed Description

Product Name:     trunk wire take-up machine XBXJ400

Company established:   1992

Business Type:     Manufacturer

Number Of Employees:   100-200 people

Place Of Origin:    Jiangyin, Jiangsu, China

Port:     Shanghai

Package:    wooden case

Delivery Time:      30 days

Feature: XBSJ series trunk take-up machine are used for the take-up of heavy coil of low carbon steel wire, copper wire, aluminium wire and so on, and mainly used along with wire drawing machine to ensure the whole drawing and taking-up work can go on continuously. Characteristics of the machine: electromagnetic speed adjusting motor driving, dynamic balance excellent, fixed speed matching with the wire drawing machine, heavy coil, manpower saving.



2. Main technical parameter:

Model

XBSJ-750

XBSJ-650

XBSJ-400

Drum diameter

Φ750mm

Φ650mm

Φ400mm

Wire diameter of finished product

Φ2.2-5.5mm

Φ1.6-4.0mm

Φ0.8-1.6mm

Take-up speed

300-600m/min

300-640m/min

400-800m/min

Note

The mechanical speed ratio and the diameter of drum all can be designed according to customers' needs.

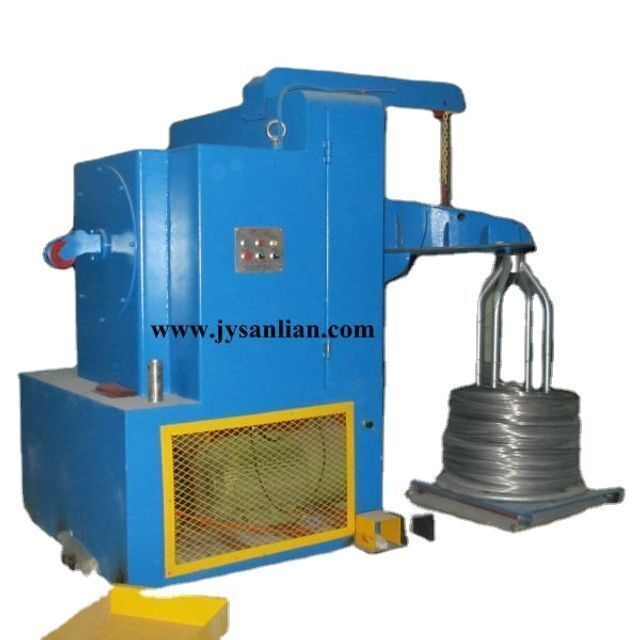

3. Picture of the machine:
