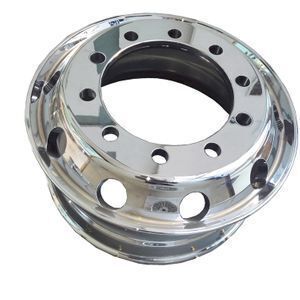

Alcoa similar wheel 22.5x8.25 inch forged aluminum truck rims alcoa---we are rims factory

Supplier: Qinhuangdao New Light Vehicle Wheel Engineering & Technology Co., Ltd.
Region: Hebei, China
Contact: Mr Tiger Gao
Price: $125.00 / >=12 pieces
Min. Order: 12 pieces

Click here to contact

Product details

Thickness:	23mm;	Single gross weight:	27 KG;
ET:	144mm;	Truck model:	volvo,man, mack,;
Finishing:	Bright;	P.C.D.:	335mm;
Model Number:	JDH00X-225825;	Selling Units:	Single item;
Place of Origin:	Hebei China (Mainland);	Package Type:	carton and pallet;
OEM No.:	JDH00X-225825;	Brand Name:	JASTOO;
Truck Model:	VOLVO,MAN,FODEN,IVECO,MACK,SISU,KENWORTH,WESTERNSTAR,etg.;	Material:	Aluminum;
Delivery Detail:	0 days after payment;	D.B.H.:	10-26;
Single package size:	60X60X30 cm;	Color:	silver;
C.H.D.:	281.2mm;	Max. Load:	3650KG;
Package Preview:	https://sc01.alicdn.com/kf/HLB1WvAdX2fsK1RjSszbq6AqBXXaq.jpg_640x640.jpg;	Diameter:	22.5;

Alcoa similar wheel 22.5x8.25 inch forged aluminum truck rims alcoa---we are rims factory

Wheel type

The wheel rims specification:

Commercial car wheel : Truck wheel; Bus wheel ;Semi-trailer wheel ; Goods vehicle wheel ;

Trailer wheel ; Draw-bar trailerwheel ; Center axle trailer wheel ; Combination vehicle wheel .

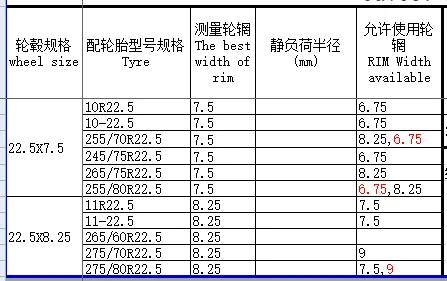

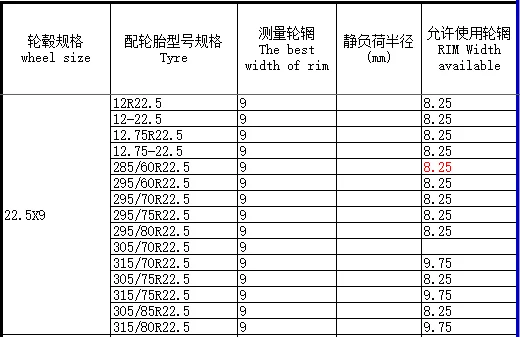

The matched tires

This is the tires type mounted on our 22.5x8.25 and 22.5x9.0 wheel.

Product Overviews

No.	Type	Wheel Size	P.C.D	C.H.D.	D.B.H	Hole Type	Offset	Thickness	Air Hole
			mm	mm	mm		mm	mm
1	JDH001-22590	22.5X9.00	335	281.2	10-φ26	straight/ISO	152	24	10-φ58
2	JDH001-22590	22.5X9.00	335	281.2	10-φ32	straight/ISO	152	24	10-φ58
3	JDH002-225825	22.5X8.25	335	281.2	10-φ26	straight/ISO	144	23	10-φ60
4	JDH002-225825	22.5X8.25	335	281.2	10-φ32	straight/ISO	144	23	10-φ60
5	JDH003-22575	22.5X7.50	335	281.2	10-φ26	straight/ISO	140	22	10-φ63
6	JDH003-22575	22.5X7.50	335	281.2	10-φ32	straight/ISO	140	22	10-φ63
7	JDH009-19575	19.5X7.50	275	221.1	8-φ24.5	straight/ISO	134	22	8-φ54
8	JDH012-225825	22.5X8.25	285.75	220	10-φ26	straight/ISO	144	23	10-φ60
9	JDH012-225825	22.5X8.25	285.75	220	10-φ32	straight/ISO	144	23	10-φ60
10	JDH013-22575	22.5X7.50	285.75	220	10-φ26	straight/ISO	139	23	10-φ63
11	JDH013-22575	22.5X7.50	285.75	220	10-φ32	straight/ISO	139	23	10-φ63
12	JDH022-225825	22.5X8.25	285.75	222	10-φ26	straight/ISO	144.9	22.76	10-φ60
13	JDH022-225825	22.5X8.25	285.75	222	10-φ32	straight/ISO	144.9	22.76	10-φ60
14	JDH023-22575	22.5X7.50	275	214	8-φ32.5	straight/ISO	139	23	10-φ63
15	JDH101-22590	22.5X9.00	335	281.2	10-φ26	straight/ISO	152	25	10-φ58
16	JDH101-22590	22.5X9.00	335	281.2	10-φ32	straight/ISO	152	25	10-φ58
17	JDH102-225825	22.5X8.25	335	281.2	10-φ26	straight/ISO	145	23	10-φ58
18	JDH102-225825	22.5X8.25	335	281.2	10-φ32	straight/ISO	145	23	10-φ58
19	JDH103-22575	22.5X7.50	275	221.1	10-φ32	straight/ISO	138	24	8-φ45
20	JDH104-17560-1	17.5X6.00	222.25	164	6-φ32.5	straight/ISO	115	20	6-φ45
21	JDH104-17560-2	17.5X6.00	203	146	5-φ32.5	straight/ISO	115	20	10-φ45
22	JDH104-17560-3	17.5X6.00	203	146	5-φ19	straight/ISO	115	20	10-φ45
23	JDH108-195675	19.5X6.75	275	221.1	8-φ24	straight/ISO	125	22	8-φ56
24	JDH108-195675	19.5X6.75	275	221.1	8-φ32	straight/ISO	125	22	8-φ56
27	JDH111-2251175	22.5X11.75	335	281.2	10-φ26	straight/ISO	0	24	10-φ40
28	JDH112-2251175	22.5X11.75	285.75	220	10-φ26	straight/ISO	0	24	10-φ40
29	JDH113-22513	22.5X13	335	281.2	10-φ26	straight/ISO	-14	28	10-φ40
30	JDH114-22514	22.5X14	285.7	221	10-φ32.5	straight/ISO	22	31	10-Ellipse
31	JDH202-225825	22.5X8.25	285.75	220.1	10-φ26.75	straight/ISO	146	23	10-φ63
