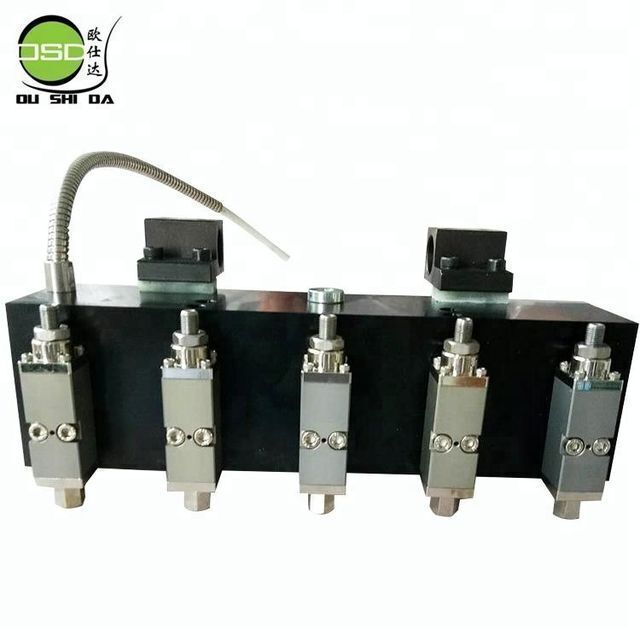

High Quality Hot Melt Spray Glue Gun For Nonwoven fabric composite

Product Application

Suzhou Oushida Hot Melt Machinery Equipment Co., Ltd. mainly suppply the hot melt glue machine/equipment directly, our machine also can do as one part of your whole produce process when you need the glue process.

The output gluing way is dot spraying, strip spraying, mist spraying or scraper nozzle gluing. You can choose which one is best working for your products.

Our hot melt glue machine/applicator is used for footwear, packaging, woodwork, textile, toy-making, leather wares, non-woven, electronics, electrical instruments and other industry.

Saving production costs, saving labor costs and improve production efficiency for the client.

FEATURES:

Gas-on & Gas-off Module

Beam shape, strong bonding

APPLICATIONS:

PE film packing seal of sanitary napkin,

Back film of pet pad, adult diaper, bed pad

Leak guard fixation of baby diaper, adult diaper

Widely used in packing industry.

Oushida strips gun for packaging adopts accurately technological manufacturing. Redesigned gun body puts to use multiple sealing structure to prevent glue leakage from pollution after a long time of work. Equipped with special design of a pad below the mouth of extruded glue, it ensures that the switch for extruded glueis high sensitivity and accuracy. Meanwhile, it could achieve high stability in glue spraying and reach the desired effect of adhesion. Due to its engineering design, various scraping guns could be made according to customer’s requirements to ensure that it could be competent any production line.



Features:
1, optimal reverse control module can significantly increase the speed of material and effectively reduce impact of glue leakage and broken glue on the quality of product.

2, Equipped with special design of a pad below the mouth of extruded glue, it ensures that the switch for extruded glueis high sensitivity and accuracy.

3, integrated modules and scraping gun body enable fast reaction.

4, with built-in filter, it could effectively prevent blockage.

5, using mini nozzle for dripping and leaking, it could maximumly prevent trailing.



Technical specifications:
Operating frequency: Max 2000 times
Working temperature: Max 200 °C
temperature sensor: PT100 or K-shape
air pressure: 2 kg/ cm² ------4 kg/ cm²
working voltage: 220V AV, 50/60HZ, single phase
control voltage: 24 V DC

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
