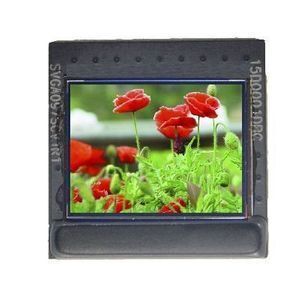

0.97inch,SVGA OLED

Supplier: Yunnan Olightek Opto-Electronic Technology Co., Ltd.
Region: Yunnan, China
Contact: Mr Allen Wang
Price: $1530.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Brand Name:	olightek;	Packaging Detail:	Packed in 1 Carton with 20 OLED each. Carton size:24.5cm18cm3 cm;
Supply Ability:	100000 Piece/Pieces per Year;	Model Number:	SVGA097;
Format:	0.97inch,800*600;	Uniformity:	>85%;
Pixel:	24.6μm*24.60μm;	Delivery Detail:	3 days after money is paid;
Viewing area:	19.78mm*14.86mm;	Place of Origin:	Yunnan China (Mainland);
Payment Terms:	T/T;	Port:	GUANGZHOU;
Grey levels:	256;

OLiGHTEK’s SVGA097 is a low power consumption AM-OLED microdisplay which is 0.97 inch and has SVGA (800×600) resolution. The product series comprise full color, mono white, mono green and mono red display. Full digital video signal process and 804×3×604 driver units are integrated on the silicon substrate which is fabricated in 0.18μm CMOS technology. Input video signal is compatible with ITU-R BT.601/656 standard and supports 8/16/24 bit video format. The display mode, direction, position, brightness, contrast, R/G/B offset and gamma correction can be controlled by a 2-wire serial interface. I/O level is compatible with 1.8~3.3V CMOS standard. SVGA097 can be used in various near-to-eye systems.

Features

Low Power Consumption 0.18μm CMOS Si-Base AM-OLED
804 (×3) 604 Total Pixels
8/16/24 Bit Digital Video Interface
Video Signal Enhancement
Gamma Correction
8 Bit/256 Grey Levels
Support Binocular Stereovision
H/V Direction & Position Adjustment
Embedded Temperature Sensor
Integrated DC-DC Converter
Built-in Test Patterns
2-Wire Serial Communication Interface

Technical Parameters

Format	800 (×3) × 600
Pixel Aspect Ratio	Square
Pixel Pitch	24.6μm
Color Pixel Layout	Vertical RGB stripe
Viewing Area	19.78mm ×14.86mm
Gray Levels	8Bit / 256Levels
Typical Luminance	≥100cd/m²(Mono White) ≥70cd/m²(Full Color)
Uniformity	≥85%
Work Temperature	-40°C ~ +65°C
Video Signal interface	ITU-R BT.601/656
I/O Interface	CMOS Standard
Mechanical Envelope	26mm × 26mm×4.7mm
Weight	≤ 3.8g
