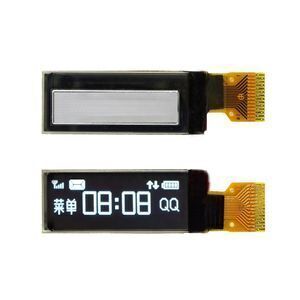

Shenzhen TCC(12832B01)0.91 oled monochrome graphic screen 128x32 oled display module 14 pin I2C serial ssd1306 mini oled display

Supplier: Shenzhen TCC LCD Hi-Tech Co., Ltd.
Region: Guangdong, China
Contact: Ms Teresa Yin
Price: $2.30 /piece
Min. Order: 1 piece

Click here to contact

Product details

Model Number:	SYO12832B01;	Controller:	SSD1306BZ;
Active Area:	22.38*5.58mm;	Place of Origin:	Guangdong China (Mainland);
Delivery Detail:	0 days after payment;	Resolution:	128*32;
Brand Name:	TCC;	Package Type:	inner package is a standard foam boxes, outer packaging is the corrugated carton;
Number of pins:	14 pin;	Single package size:	43X34X15.5 cm;
Dot size:	0.159*0.159mm;	Single gross weight:	0.015 KG;
Selling Units:	Single item;	Package Preview:	https://sc01.alicdn.com/kf/HLB1FhBnSmzqK1RjSZPcq6zTepXaN.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HLB1hBJOSmrqK1RjSZK9q6xyypXal.jpg_640x640.jpg;
Exterior dimension:	26.6011.501.22mm;	View size:	24.38*7.58mm;
Display mode:	OLED(White);	Screen Size:	0.91 inch;

Shenzhen TCC(12832B01)0.91 oled monochrome graphic screen 128x32 oled display module 14 pin I2C serial ssd1306 mini oled display

Product Description

1	Product model	SYO12832B01
2	Product brand	TCC
3	Resolution	128*32
4	Outline Dimensions	26.6011.501.22mm
5	Visual area	24.38*7.58mm
6	Dot Size	0.159*0.159mm
7	Controller	SSD1306BZ
8	Active Area	22.38*5.58mm
9	Backlight	NO
10	Screen Size	0.91inch
11	Number of pins	14pin
12	Display mode	OLED(White)

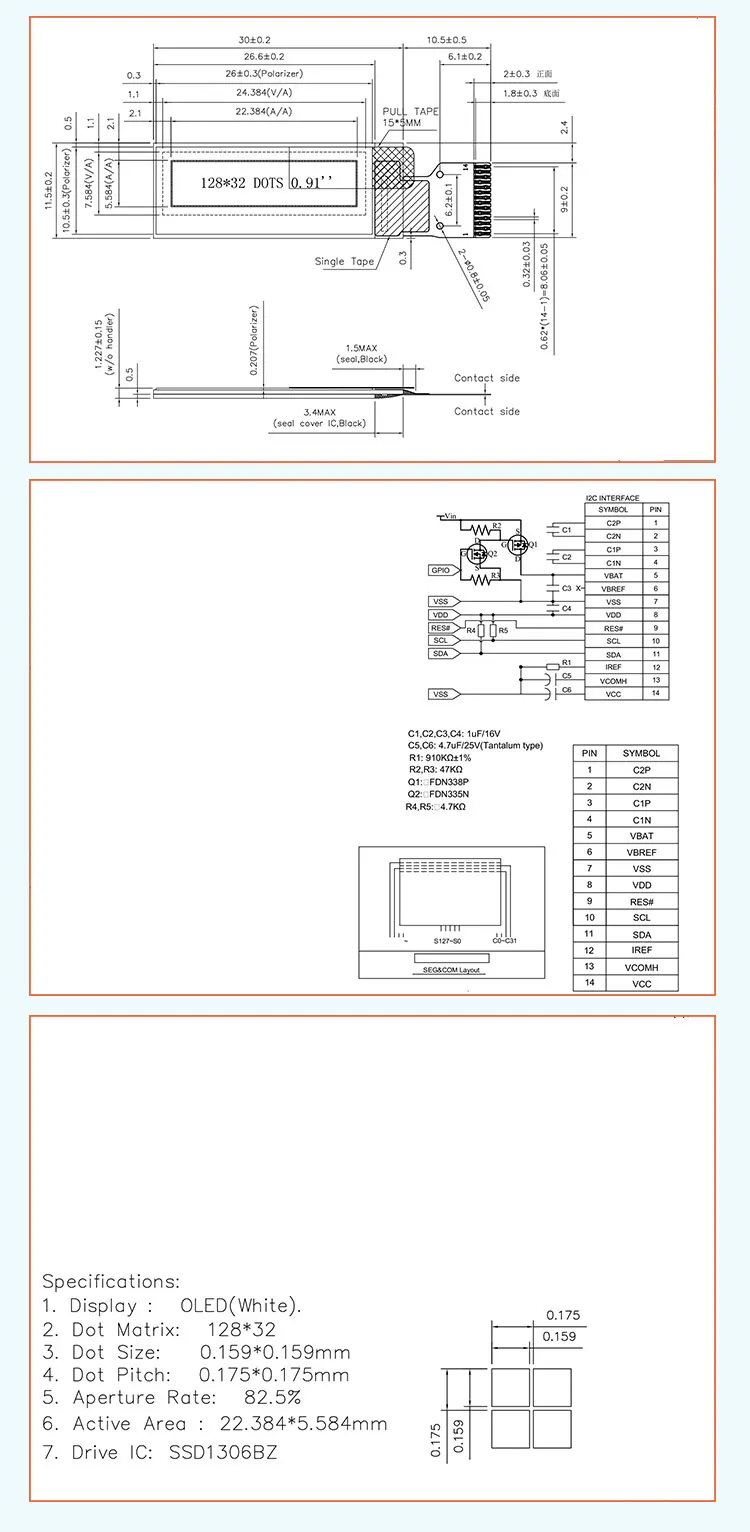

Detailed Images

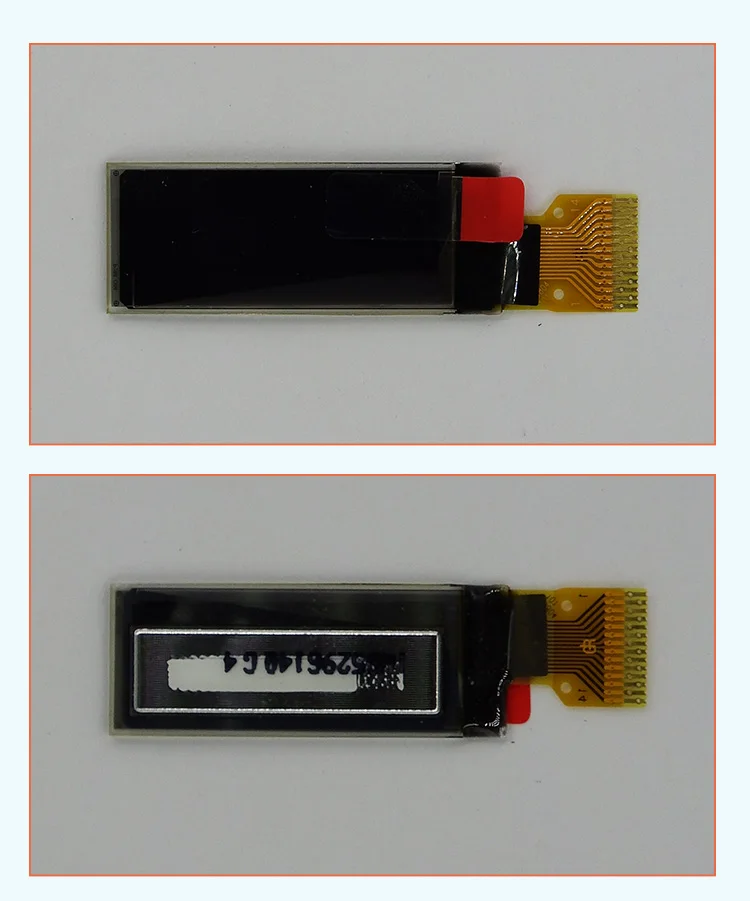

Products Real Shot Show

Related Products

click to see more>>

Packaging

Choose the right package according to the size of the product and carry out multiple protections to ensure that the product avoids damage during transportation.

Product Application

Our products are used in a wide range of applications, such as electronic equipment, medical equipment, industrial equipment and smart home.

Certification

TCC has a complete quality management system and passed the ISO9001:2015 quality system certification.The products conform to SGS,BV, RoHS, Reach and other certifications.

Quality Control

TCC always adheres to the "quality first" concept, strictly controls the various processes of production operations, and conducts 100% inspection of shipped products.

Corporate style

The company is located in Shenzhen, which has the “City of Entrepreneurship”. The company has been established for 13 years and has always believed in humanistic care. It has created a group of stable and excellent work teams to provide satisfactory services to customers.

FAQ

Q:Products are in stock? How long can you deliver?
A: Our inventory is mainly semi-finished and raw materials and a small amount of finished products. Small batch delivery takes 2-3 weeks and large batch delivery takes 3-4 weeks.

Q: How long is the warranty and service of the product?
A: The damage caused by the product during normal use, during the warranty period, our company is free to repair, the warranty period, or the damage caused by improper use is not within the scope of free maintenance. As long as it is our products, we can provide technical support services.

Q:The LCD screen can be exported directly? what certification could provide ?
A:Liquid crystal products comply with the RoHS standard, can be directly exported.Products by RoHS, CE, SGS certification.

Q: What kind of packaging? The transport process will not be damaged?
A:Our products are divided into three categories, small size screens use foam packaging, small and medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.

Q: Can you provide product drawings and test reports?
A: According to customer needs, our company can provide product related information and test reports.

Q:The product specification is in Chinese or English?
A:There are two version of product specifications: Chinese and English.

Q:Can we customize products? How many charges?
A:The LCD screen can be customized, customized products have the minimum purchase quantity constraint.Mold fee for all kinds of products are not the same, the general principle is: LCD mold fee category: TN was low,STN was high.

Q: What is the minimum order quantity?
A: The minimum order quantity depends on the product size.

Q: Are you open to OEM processing?
A: Yes, we can OEM.

Q:How to control the quality of products?
A: The company has a professional quality team, and all products are shipped with 100% inspection.
