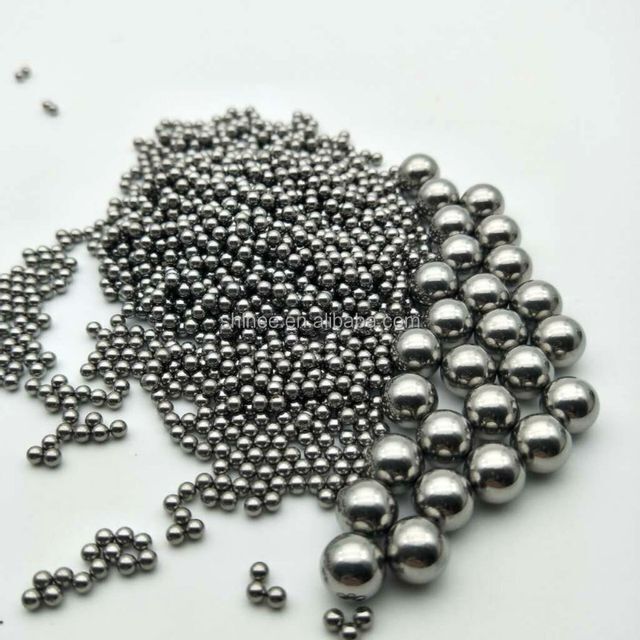

Factory 5/32" 3/16" 1/4" 5/16" Mild Steel Low Carbon Steel Ball

Supplier: Shandong Yuncheng County Mingliang Steel Ball Factory
Region: Shandong, China
Contact: Mr Johan Zheng
Price: $1000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Packaging Detail:	1- FCL: PP Bag+ Woven Bag 2- LCL: PP Bag + Woven Bag + Wooden Pallet Note: The package can be customized;	Brand Name:	Mingliang;
Model Number:	SMZ;	Port:	Qingdao, Guangzhou;
Grade:	G100, G200, G500, G1000;	Hardness:	Soft, Hardened;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Other,Advertising Company;	Material:	Carbon Steel, Mild Steel,Carbon Steel;
Diameter:	0.5mm to 50.8mm;	Supply Ability:	15 Ton/Tons per Day;
Payment Terms:	T/T,Credit Card;	Package Preview:	;
Place of Origin:	Shandong China;

Mingliang Steel Ball Factory behalf on science and technology are primary productive forces, is the basic enterprise development.Our company's mission is to abide by their promise of predicabiuty and quality.Continue to improve quality to meet customers requirements all over the world, as has been its reputation through the years.Insisting on the spirit of the honest, creation and development, dealing with variety and nicety steel balls, principle of quality service, absorbed in high quality and developing friendly cooperation.

Product Description

1-Basic Information

Material	Carbon steel Q235 1010 1015
Size Range	0.5mm~50.8mm
Grade	G200 G500 G1000
Hardness	20~60 HRC
Corrosion Resistance	Non-corrosion resistance

2-Chemical Composition

	1010	1015
%C	0.08 - 0.13	0.12 - 0.18
%Si	0.10 - 0.35	0.10 - 0.35
%Mn	0.30 - 0.60	0.30 - 0.60
%P	0.040 Max	0.040 Max
%S	0.050 Max	0.050 Max

3-Mechanical Properties

	Soft	Hardened
Density	7.82 g/m³	7.82 g/m³
Hardness	60 - 90 HRB	55 - 60 HRC
Tensile Strength	29 - 43 PSI×10³	43 - 58 PSI×10³
Young's Modulus	200 GPa	200 GPa

4- Sizes Table

1-Please contact us for specifications which are not indicated in the above list.

2-Multiplying the weight of 1000 pcs by the following items to get the approximate weight for the other materials: stainless steel 420/440(C):0.980, stainless steel 304: 1.008.

5- Product Images

OEM Service

Product Application

Our steel balls is used in many industrials, such as precision bearings, automotive components (brakes, steering, line shaft), bicycle, agitators, appliances, sliders, quick couplings, machine tool, lock mechanisms, conveyor belts, skates, pens, pumps, castors, measurement instruments, valves, ect,.

Production Flow

Quality&Certificated

1-Quality Assurance

After precision washing, oiling & before packing sample balls from the batch are sent for final audit to check for surface roughness, roundness, waviness, lot size variation and hardness in a sophisticated laboratory, according to specified control plans and dock audit procedures. Once all requirements are met, a test certificate is then prepared for the customer. Our sophisticated laboratory is equipped with high precision, worldwide respected machines and equipment and is managed by properly trained and qualified personnel.
