Lamp color: | Red, Green, Yellow ,Blue; | Pins: | 4P; |
Max. Current: | 16a; | Place of Origin: | Zhejiang China; |
Material: | PA66/PC; | Color: | Red, Yellow, Green, Blue, White; |
Model Number: | kcd4; | Working Temperature: | -25℃~+125℃; |
Application: | Electric Equipment; | Function: | ON-OFF,ON-OFF-ON; |
Whether the smart: | NO; | Max. Voltage: | 250v; |
Certificate: | CE,CQC,CCC,TUV; | Rating: | 16A 250V/35A 12V; |
Products name: | rocker switch; | Single gross weight: | 0.03 KG; |
Packaging Detail: | 1: Neutral packing: plastic bag for goods+ inner box bubble+ inner box +carton. 2: Special packing: upon customers' request.; | Certification: | CE,CQC,CCC,TUV; |
Single package size: | 1X1X1 cm; | Selling Units: | Single item; |
Brand Name: | Haifei; | Mechanical Life: | 50000 Cycles; |

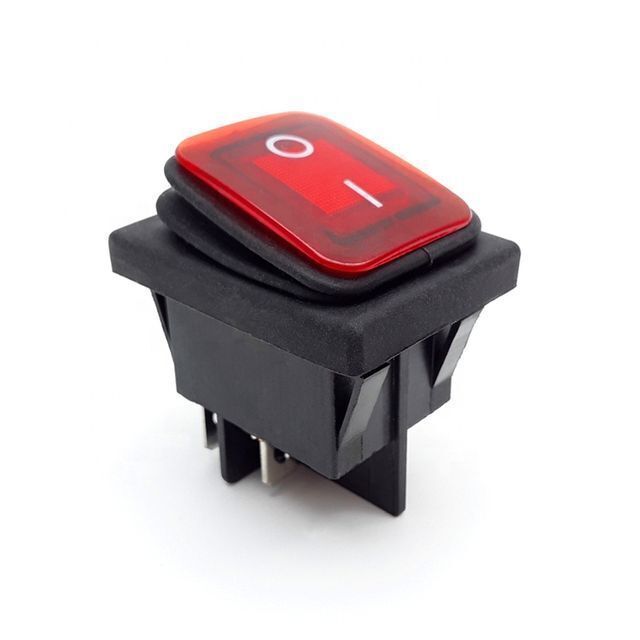

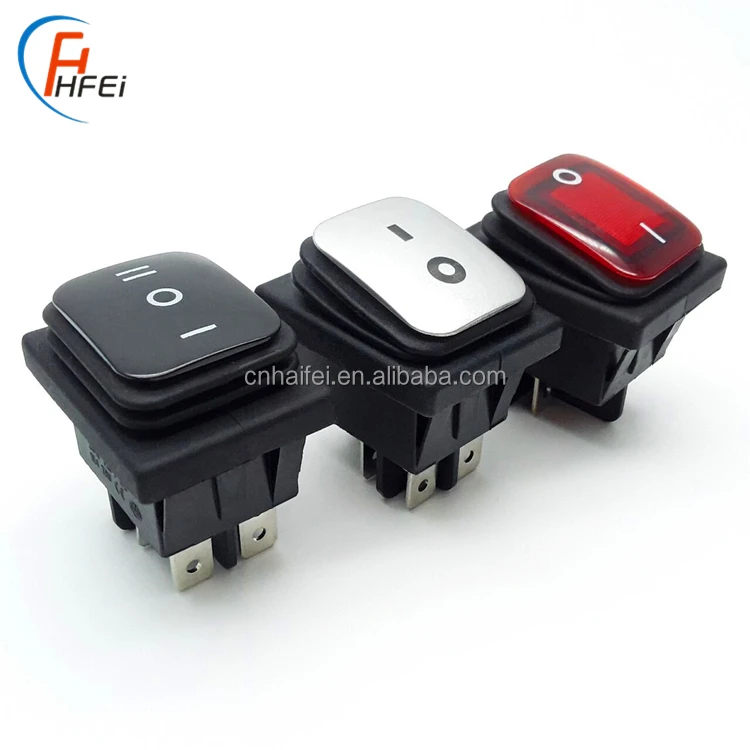

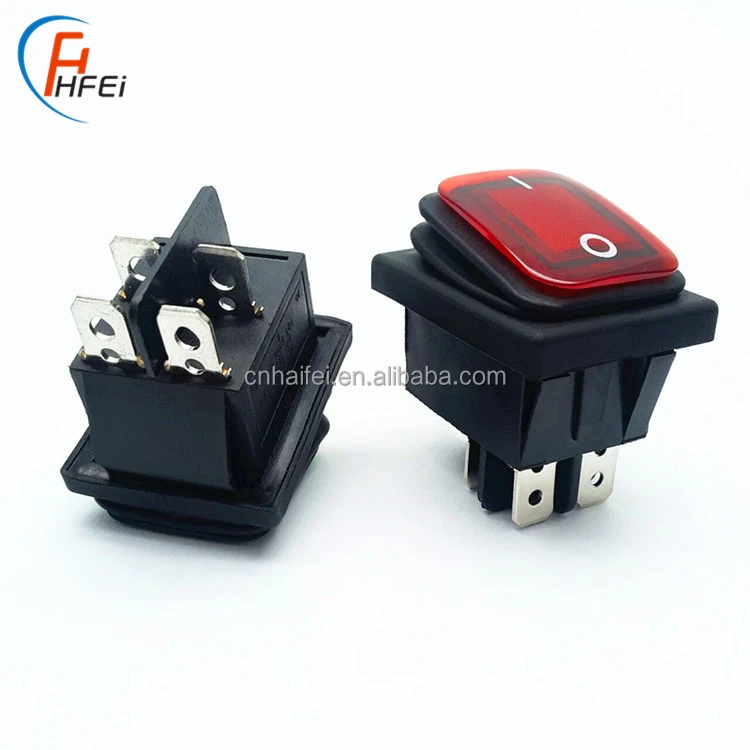

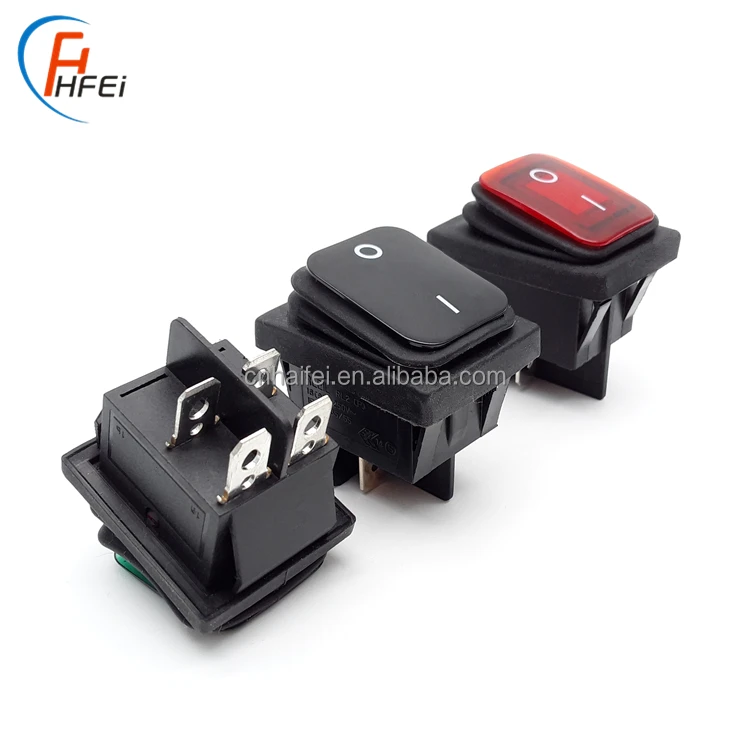

HF top quality free samples 12 volt 24 volt waterproof illuminated rocker switch t125 55
Haifei rocker switch offer a high switching current in a compact design.It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.They have high quality for long life at heavy loads and industry-standard mounting dimensions.This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
Items | Rocker switch details |
Housing material | PA66 |
Button material | PC |
Contacts material | Copper with compound silver |
Rating | 16A 250V/35A 12V |
Temperature | -40℃ to 125℃ |
Dielectric Strength | 1500Vrms min |
Contact Resistance | <30MΩ |
Insulation Resistance | >100MΩ |
Flammability | UL94V0 |
Eletrical life | 50000 cycles |
Mechanical life | 50000 cycles |
Referance standard | EN 61058-1 |
Approvl marks | CE CQC CCC TUV ROHS ENEC VDE UL |
Q1: Are you a factory or trading company?
We are factory and produce all the products by our self. Welcome to our company for factory inspection.
Q2: What products does your factory mainly manufacture?
Our factory mainly produces rocker switch, push button switch, micro switch, tact switch, toggle switch, coding switch, self locking&unlocked switch, ac&dc socket and etc.
Q3: How to guarantee our products?
we solemnly promise If there are any quality problems we will be 100% responsible for rectification.
Q4: Is it possible to customize the product according to our requirements?
You can provide us with your specific product requirements, we will manufacture the products you need individually for you.
Q5: Can you provide samples ? Are the samples free?
Yes, we can provide samples. Normally, we provide free samples for test or quality checking.
Q6: About the sample what is the cost of transportation?
The freight depends on weight, packing size and your country or province region, etc.
You can confirm goods by photo and video to save this money, If you become our old customer.
Q7: Do you have stock?
Most of the products are in stock, we can deliver the goods immediately. For some products without inventory, we can also produce at any time.
Q8: How to order?
Please send us your purchase order by Email or call us sales line or we can make you proforma invoice under your request.
We need to know the following information for your order before sending you PI.
1) Product information-Quantity, Specification(Size, Material, Technological if needed and Packing requirements etc).
2) Delivery time required.
3) Shipping information-Company name, Street address, Phone&Fax number, Destination sea port.
4) Forwarder's contact details if there's any in China.
