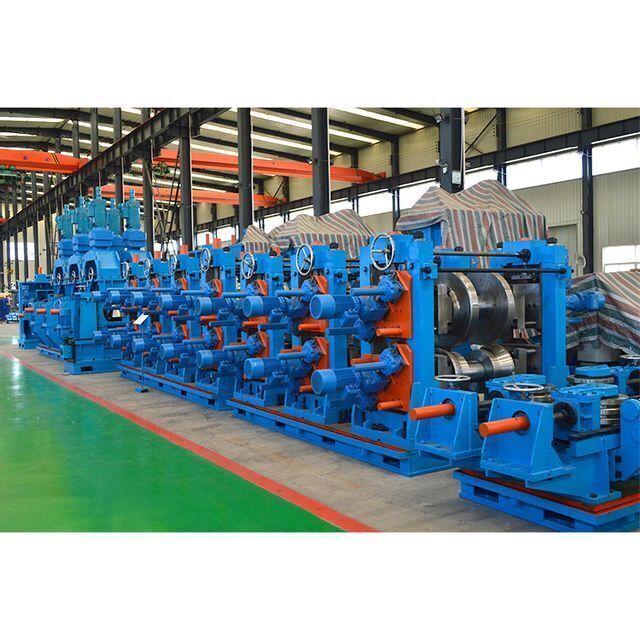

High Speed Automatic Pipe Mill Line API Oil Steel Pipe Making Machine 140mm-325mm

Supplier: Shijiazhuang Zhongtai Pipe Technology Development Co., Ltd.
Region: Hebei, China
Contact: Mr Peter Shi
Price: $170000.00 / 1 - 1 sets
$168000.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Warranty of core components:	1 Year;	Local Service Location:	Egypt,Turkey,Thailand,Uzbekistan;
Condition:	New;	After-sales Service Provided:	Engineers available to service machinery overseas;
Packaging Detail:	All mechanical equipment is nude packing and electrical parts are packed in wooden cases for High speed automatic pipe mill line api oil steel pipe making machine;	Supply Ability:	2 Set/Sets per Year automatic pipe mill line api oil steel pipe making machine;
Warranty:	1 Year;	Pipe Material:	Carbon Steel,Carbon Steel;
Key Selling Points:	Easy to Operate;	Color:	Grey or as your require;
Production Capacity:	50m/min;	Port:	Xingang;
Pipe diameter:	140-325mm;	Thickness:	4.0-12.7mm;
Place of Origin:	Hebei China;	Marketing Type:	New Product 2020;
Usage:	Construction Pipe;	Video outgoing-inspection:	Provided;
Weight:	30000;	Brand Name:	ZTZG;
Power:	900KW;	Name:	High speed automatic pipe mill line api oil steel pipe making machine;
Type:	Pipes Production Line,Pipe Production Line;	Core Components:	PLC,Engine,Bearing,Gearbox,Motor;
Application:	Energy Supply Pipe;	Raw material:	Carbon Steel;
Payment Terms:	L/C,Western Union,T/T,MoneyGram,Paypal;	Machinery Test Report:	Provided;
After Warranty Service:	Video technical support,Online support;	Dimension(LWH):	110*6.5 m;
Showroom Location:	Turkey,Germany,Russia;	Certification:	ISO9001:2008;
Quality:	High Grade;	Voltage:	220/380/415/420/440V;
Applicable Industries:	Manufacturing Plant;

Products Description

Product Parameter
Product&yield	Round Pipe	140mm-325mm Thickness:4mm-12mm

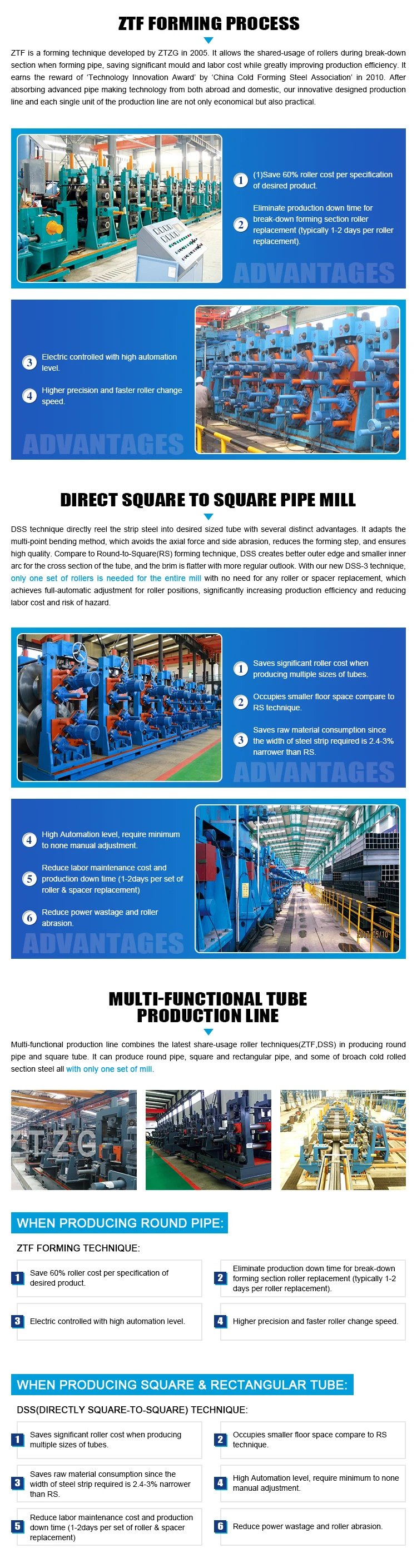

		API pipe mill is specialized for manufacturing straight welded pipe for petroleum and gas pipelines. Taking hot-rolled steel as raw material, it produce required pipes through cold roll forming and suitable welding methods like H.F. welding, submerged arc welding and so on. The whole production line adopts ‘ZTF’ forming technology.
		Length	6m-12m Length Tolerance: ±3mm
		Production Speed	20-40 m/min
		Production capacity	55,000ton/year
Consumption	Mill installed capacity	430 kw
		Line Area	130m(length) ×11m (width)
		worker	8-10 workers
Raw Material	Carbon Steel coil	L245，L360，A53，J55，N80 ，X42，X46，X52，X56，X60，X65，X70
		Width	440mm-1025mm Thickness: 4.0mm-12.7mm
		Coil ID	610-700mm
		Coil OD	Max 2000mm
		Coil Weight	15.0t

Recommend Products

Production Line

Successful Cases

Company Profie

Certifications

FAQ

Q:Are you manufacturer?
A:Yes,we are manufacturer. We have 4 factories ( Machining, Assembling, Heat treatment, and Moulding ). We also have our own R&D department. Welcome to visit us.
Q:What kind of payment term do you do?
A: We do T/T and L/C.
Q:What info do you need before giving me the price and proposal?
A: Since we design individual machine based on our customer's requirement, we need your desired products' basic dimension, including all the pipe diameter(or tube length), thickness range , usage, raw material steel grade, coil weight, and degree of automation.
Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant for pre-sales service .Also we can help you solve the raw material (steel coil) purchase, worker training, international market price, and more.
Q:How do you do QA?
A:We have special team to do strict QA,this is one of our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.

(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure its in the range of tolerance critical parts will be inspected for all dimensions.
Q:Why I should choose you? what are the differences between you and other Chinese suppliers?
A:We are concentrate on pipe making machines for more than 20 years. We have constructed many steady trading partners in Asia,Africa, middle east, Europe, and South America throughout the years. Our innovative designed production line and each single unit of the production line are not only economical but also practical.

Model List
Model	Round pipe mm	Square pipe mm	Thickness mm	Working spead m/min
ERW76	Ф32-Ф76	25x25-60x60	1.2-4.0	120
ERW89	Ф42-Ф89	35x35-70x70	1.5-4.5	110
ERW114	Ф48-Ф114	40x40-90x90	1.5-4.5	65
ERW140	Ф60-Ф140	50x50-110x110	2.0-5.0	60
ERW165	Ф76-Ф165	60x60-130x130	2.0-6.0	50
ERW219	Ф89-Ф219	70x70-170x170	2.0-8.0	50
ERW273	Ф114-Ф273	90x90-210x210	3.0-10.0	45
ERW325	Ф140-Ф325	110x110-250x250	4.0-12.7	40
ERW377	Ф165-Ф377	130x130-280x280	4.0-14.0	35
ERW406	Ф219-Ф406	170x170-330x330	6.0-16.0	30
ERW508	Ф273-Ф508	210x210-400x400	6.0-18.0	25
ERW660	Ф325-Ф660	250x250-500x500	6.0-20.0	20
ERW720	Ф355-Ф720	300x300-600x600	6.0-22.0	20
