1/2/3 Gang Smart wall switch WIFI Crystal Glass Wireless Light switch Tuya App WIFI remote Switch With google alexa

Supplier: Shenzhen Champions Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Aimee Wang
Price: $5.00 /set
Min. Order: 1 set

Click here to contact

Product details

Operating Frequency:	50/ 60Hz;	Open Space Distance:	30 meter;
Rated operational voltage:	110V-240V AC;	Panel Material:	Tempered crystal glass;
Obstacle Distance:	15-20 meter;	Max. Current:	2A;
Mechanical Life:	100,000 Times of Operation;	Case Material:	ABS;
Warranty:	2 Years;	Max. Voltage:	240V AC;
Relative humidity:	10%~93%;	Port:	Shenzhen;
Brand Name:	Champions;	Packaging Detail:	Each set in a box. yellow box / white box/ color box can choose. Packing can be customized.;
Energy consumpti:	0.02W;	Payment Terms:	T/T,Western Union,Paypal;
Supply Ability:	10000 Set/Sets per Month;	Place of Origin:	Guangdong China;
Wiring Method:	Single fire line;	Package Preview:	;
Model Number:	AG-SC8603-1;

Product Description

This Wireless Smart Switch is use tempered glass touch panel and fire retardant PC substrate, looks elegant. Scratch-resistant, damp proof, fire retardant. It can work with wireless remote control too, Easy to use and install.

so Environmental-friendly and energy saving. Replace traditional wall switch completely and smoothly. Suitable for home, office, hotel, hospital and so on.

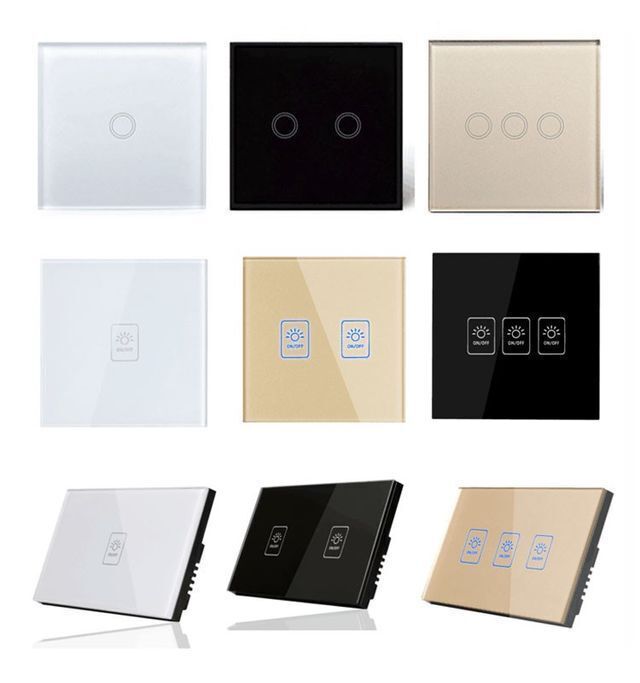

Supply 1,2,3 gang, white, black and gold color, with EU, US standard

1. Support RF Remote Control

2. Support Voice Control -Amazon alexa, Google Assistant

3. Support APP control-Tuya,Smart life

Features:

Smart Wi-Fi Touch Wall Switch: This 1/2/3 Gang touch switch supports maximum power of 2200W that can work with most lights and other electric appliances. It can separately control 3 appliances at the same time. APP Remote Control: User can use a smartphone to remotely control turn on / off home electronics at anytime and anywhere via APP as long as the phone has WIFI network. It makes your home appliances smart in 1 second. Compatible with iOS and Android. APP download: Tuya or Smart life. Premium Quality: Made of flame-resistant ABS shell and toughened glass panel that ensures a good durability. Luxury and fashion design that can be well fit into most houses with different decorate style. More Intelligent: Work with Amazon Alexa / Google Home, user can control this WiFi switch via voice through Alexa / Google device to turn on/off the switch (support independently control), which makes the operation more convenient and more intelligent. Strong Function: Support timer function that includes countdown, single and repeat timer, it can set Max.

Note: Scan the QR code on the QR code card to download the APP and read the user guide.

Note: We have two type Wi-Fi touch switch, need to connect to a neutral line with voltage is 110-250V or no need to connect to a neutral line with voltage is 170-250V. Please check what you need and conntact with Tina.

Specifications:

Product Name	Smart WIFI Touch Wall Light Switch
Standard	EU , US size
Color	White and Black and Gold
Function	Smartphone WIFI APP Control
Max. Current	16A
Max. Voltage	110V-250V AC
Load Power	3-300W/gang ,800W total
Operating Frequency	50/60Hz
Material	Tempered glass panel
Energy Consumption	0.02W
Working temperature	-20℃~+70℃
Relative humidity	10% - 93%
Life Time	more than 100,000 times
Warranty	2 Years

Wiring Diagram Instralltion Instructions

Receiver size and Decomposition Display

Receiver Installation Display

Packing & Delivery

Packing

Each set in a box.
yellow box / white box/ color box can choose.
Packing can be customized.

Delivery

We have strong cooperation with DHL,TNT,UPS,FEDEX,EMS,China Air Post.
You also can choose your own shipping forwarder

FAQ

1). Q: What does the package contain ?

A: The package includes: a smart remote control switch and a free sticker (transmitter remote).

The intelligent switch is type 86, which can directly replace the old switch. The wiring method is the same as the old switch

2). Q: What does the package contain ?
A: Warranty for two years.

3). Q: What need to pay attention when install the switch ?

A: a). Please follow the back label indicator to wiring, dual remote control switch A, B line must be connected, and con not cross.

b). Dual remote control switch must be paired before installation to have dual control function.

c). Do not have live wiring, do not bring the cover glass panel.

Trade terms
1). Payment: T/T only ,30% deposits before production,70% balance to be paid before delivery
2). Samples can be delivered in 3-5 days
3). Shipping freight are quoted under your requests
4). Discounts are offered based on order quantities
5). FOB price are quoted under inquiry

Our Service

1). Your inquiry related to our products or prices will be replied in 12 hours
2). Well-trained and experienced staffs to answer all your enquires in fluent English
3). OEM & ODM, any your customized products we can help you to design and put into production
4). Protection of your sales area, ideas of design and all your private information
5).Deliver by air mail or ship for your order

Our Company

Shenzhen Champions Technology Co., Ltd. is a high-tech private enterprise founded in 2011. We focus on the design, research, development, manufacture, sale and service of wireless remote control,wireless controller,wireless receiver and transmitter module,infrared detector etc.security alarms.
Our focus is on R&D, ensuring that we provide our customers with top quality and innovative products. In addition, we use stringent quality control measures to ensure the reliability of our products. With our rich experience and considerate services, we have been recognized as a reliable supplier for many international buyers.
"Pursuing perfection, striving for excellence" is our motivation to make progress. Our company is always committed to providing customers with advanced products and high quality services to meet customers' needs and create the greatest value for customers.
