counter pressure retort autoclave for food with bottle/canned/pouches packing

Supplier: Guangzhou Jiangbin Trade Co., Ltd.
Region: Guangdong, China
Contact: Ms Sophia Chen
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Core Components:	Pressure vessel;	Product name:	counter pressure retort autoclave;
Supply Ability:	1000 Set/Sets per Month;	Packaging Detail:	in wooden case;
Showroom Location:	None;	Warranty:	1 Year;
Warranty of core components:	1 Year;	Applicable Industries:	Food & Beverage Factory,OTHER;
Place of Origin:	Jiangsu China;	Key Selling Points:	Easy to Operate;
Machinery Test Report:	Not Available;	Payment Terms:	T/T;
Voltage:	220v/110v;	Port:	Guangzhou,Shenzhen,Shanghai;
Certification:	ISO;	After-sales Service Provided:	No overseas service provided;
Weight:	105kg;	Power:	4.5kw;
Dimension(LWH):	7006801300;	Marketing Type:	New Product 2020;
Condition:	New;	Brand Name:	JIBIMED;
Video outgoing-inspection:	Provided;	Local Service Location:	None;
After Warranty Service:	No service,Online support;

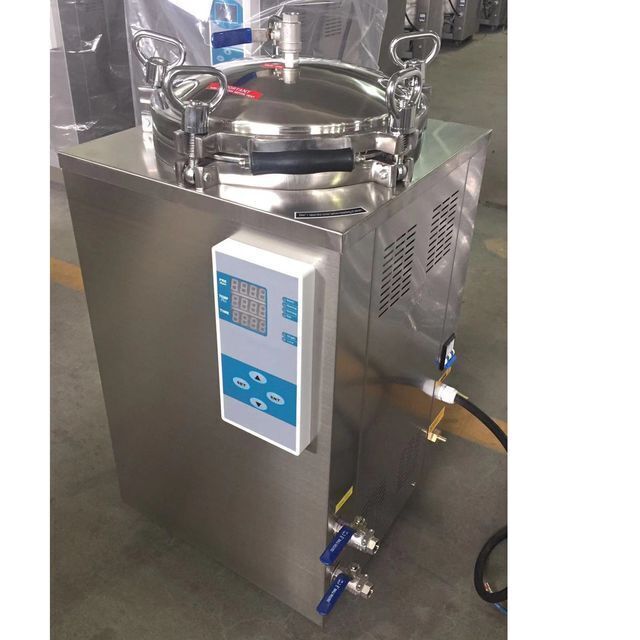

counter pressure retort autoclave for food with bottle/canned/pouches packing

Model:LS-35/50/75/100/120/150LJ

Volume:35L,50L,75L,100L,120L,150L

The baskets design is easy to lift.

MODEL	Chamber size(L)	Rating working pressure (MPa)	Rating working temperature (℃)	Rating input consumption (kW)	timer(min)	Pressure(mpa)/ Temperature(℃) range (MPa/℃)	DIMENSION (CM)	G.W/N.W(kg)
LS-35LD	35	0.22	134	1×2.5	0~99	0.07~0.22/ 105~134	48×46×85	56/42
LS-50LD	50			2×1.5			52×52×98	65/55
LS-75LD	75			3×1.5			56×56×98	90/70
LS-100LD	100			3×1.5			59×59×108	105/85
LS-120LD	120			3×2			60×64×114	125/100
LS-150LD	150			3×2			67×69×114	135/110

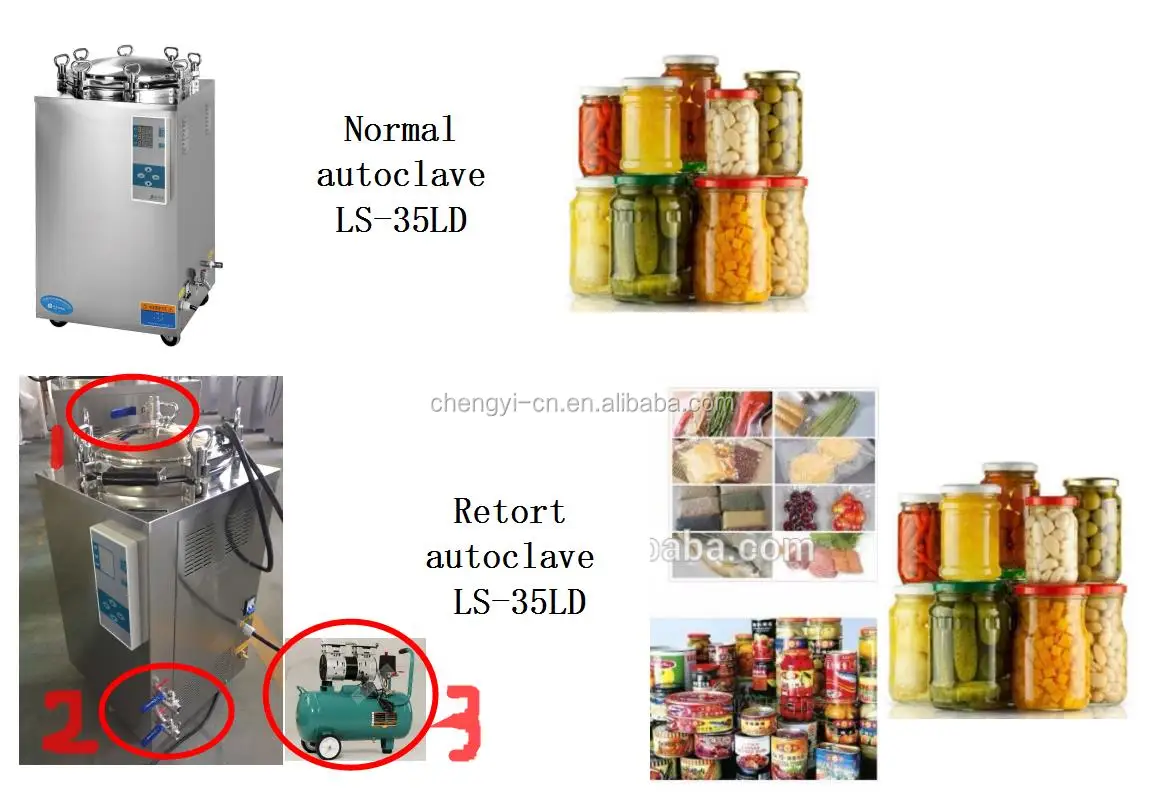

Application range

Working principle

1. Water filing
Prior to the start of the process, the retort is filled with a small volume of process water such that the water level is below the bottom of the baskets. This water can be used for successive cycles if desired, as it is sterilizer with each cycle.
2. Heating
Once the cycle is begins, the steam valve opens and the circulation pump is switched on. The mixture of steam and water spraying from top of the retort vessel creates highly turbulent convection currents that rapidly homogenizes the temperature at every point in the retort and between the containers.
3. Sterilization
Once the programmed sterilization temperature has been reached, it is held for the programmed time with +/-1 °F . Similarly, the pressure is kept with +/- 1 psi by adding and venting compressed air as needed.
4. Cooling
At the end of the sterilization step, the retort switches into cooling mode. As the process water continues to be circulated through the system, a portion of it is diverted through on side of a plate heat exchange. At the same time, cold water passes through the other side of plate heat exchange. This results in the process water inside the retort chamber being cooled in a controlled fashion.
5. End of cycle
Once the retort is cooled to the programmed temperature set point, the cold water inlet valve on the heat exchange closed and the pressure inside the retort is automatically relieved. The water level is lowered from the maximum down to the medium level. The door is equipped with a safety locking device which prevents the oping of the door in the

Main Features
1.Fully stainless steel structure
2.Indicator light indicates working state
3.Over temperature&over pressure auto-protection
4.Double scale indication pressure gauge
5.Safe protection of water lacking
6.Automatically shut off with beep reminding after sterilization
7.Easy to operate,safe and reliable
8.With two stainless steel sterilizing baskets

Packaging & Shipping

Packing detail:in wooden case.

Delivery detail:
1.We ship autoclave by UPS/DHL/FEDEX/TNT express which is door to door ,you no need go out can get the autoclave,takes 3~ 5 days to arrive.
2.We can also help you ship the autoclave by air cargo which you need to go to Air port to take autoclave home,it takes about 2-7 days to arrive.
3.If autoclave are large quantity and you not need the autoclave so urgently ,you can choose by sea to save some freight cost which takes about one month to arrive .
No matter what delivery way ,depending on your actual requirements.

my factory

FAQ

If you don't know how to choose the sterilizer.Please follow the below question and send your request to us.

1-What's the volume do you need?

2-Do you need the machine with digital display,also called LCD display?

3-What's the type do you need?We have vertical type,tabletop type,portable type and horizontal type.

4-Do you have special request about the certificate?We have ISO 13485. Some models have CE certificate.

5-Do you have the request about the standard of the autoclave,we has class B and class N standard autoclave.

Certifications
