Blade Material: | PC Copper,Plastic; | Voltage: | 115 / 230(V); |
Type: | Axial Flow Fan; | Color: | white, black; |
Fan type: | Aixal Fan; | Mounting: | Duct Fan; |
Size: | 100mm/125mm/150mm/200mm; | Rated voltage: | 220V~240V 110V~120V; |
Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal; | Name: | Inline Duct Fan; |
Product Name: | inline fan; | Place of Origin: | Zhejiang China; |
Certification: | ce,RoHS,SAA; | Warranty: | 3 years; |
After-sales Service Provided: | Overseas service center available,Online support; | Brand Name: | ELMAK; |
Supply Ability: | 10000 Piece/Pieces per Month; | Port: | NINGBO OR SHANGHAI; |
Function: | Ventilaion; | Power Supply: | AC 220V; |
Packaging Detail: | Standard Export Package; |

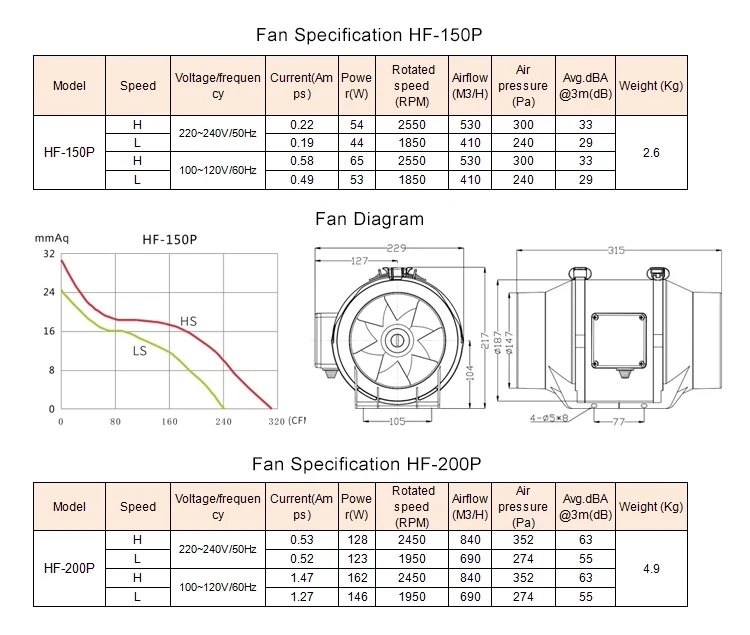

Model | A | B | C | ΦD | E | F | ΦG | L | W/H |
HF-100P | 80 | 60 | 4-Φ4.5 | 97 | 99 | 116 | 163 | 302 | 204/195 |
HF-125P | 80 | 60 | 4-Φ4.5 | 123 | 99 | 116 | 163 | 257 | 204/195 |
HF-150P | 80 | 60 | 4-Φ5.0 | 147 | 109 | 127 | 187 | 313 | 227/208 |
HF-200P | 100 | 94 | 4-Φ5.5 | 197 | 125 | 137 | 205 | 302 | 249/237 |
HF-250P | 150 | 150 | 4-Φ8*11 | 247 | 150 | 174 | 261 | 383 | 310/286 |
HF-315P | 181 | 178 | 4-Φ8*11 | 312 | 187 | 216 | 325 | 446 | 386/357 |
