Road maintenance equipment cutterbar cutting machine on hot sale

Product details
Marketing Type:Ordinary Product;rotary saw Flow (L/min):50-60;
rotary saw Overall Dimensions (L*W*H mm):1420*1200*820;rotary saw Max. Cutting Depth (mm):220;
Showroom Location:None;Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Packaging Detail:1. seaworthy export standard package,with wooden or steel pallet,wooden carton,steel frame etc for rotary saw with CE certificate; 2. one 20GP can load about 6 pieces for rotary saw with CE certificate; 3. one 40GP can load about 20pieces for rotary saw with CE certificate; 4. customized package for rotary saw with CE certificate.;Brand Name:Shanghai SMB bucket;
rotary saw Weight (Kg):348;rotary saw origin:China;
Applicable Industries:Garment Shops,Building Material Shops,Machinery Repair Shops,Construction works ;Certification:CE;
UNIQUE SELLING POINT:Short turning radius;Supply Ability:100 Piece/Pieces per Month for rotary saw;
Model no.:030760;Machinery Test Report:Provided;
After-sales Service Provided:Online support;Warranty of core components:1 Year;
rotary saw Blade Type:Diamond Type;Weight:348;
Port:Shanghai,Ningbo,Qingdao main of china;rotary saw Pressure (Mpa):16-21;
After Warranty Service:Online support;rotary saw Max. Diameter (mm):600;
rotary saw Overall length (mm):5;Place of Origin:Shanghai China;
Dimension(L*W*H):1420*1200*820;Core Components:Gearbox;
Warranty:1 Year;Condition:New;
Cutting Depth:5mm;Local Service Location:None;
Video outgoing-inspection:Provided;



Product Description

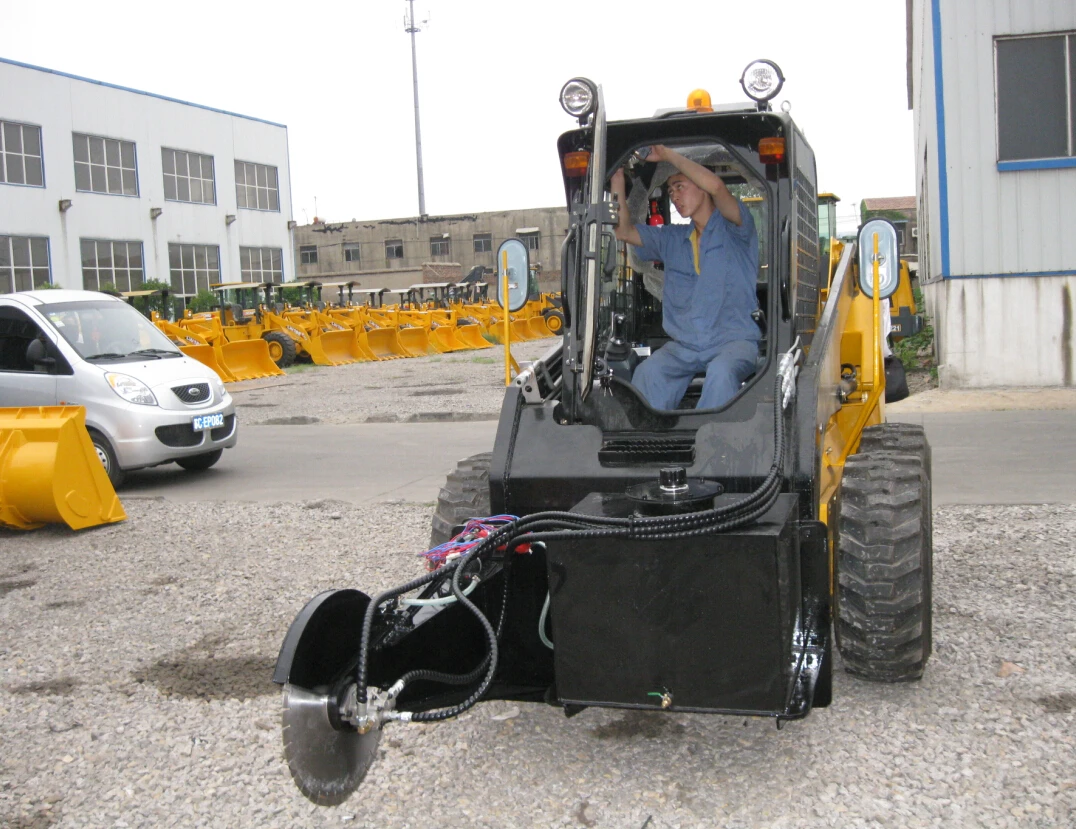

Road maintenance equipment cutterbar cutting machine on hot sale

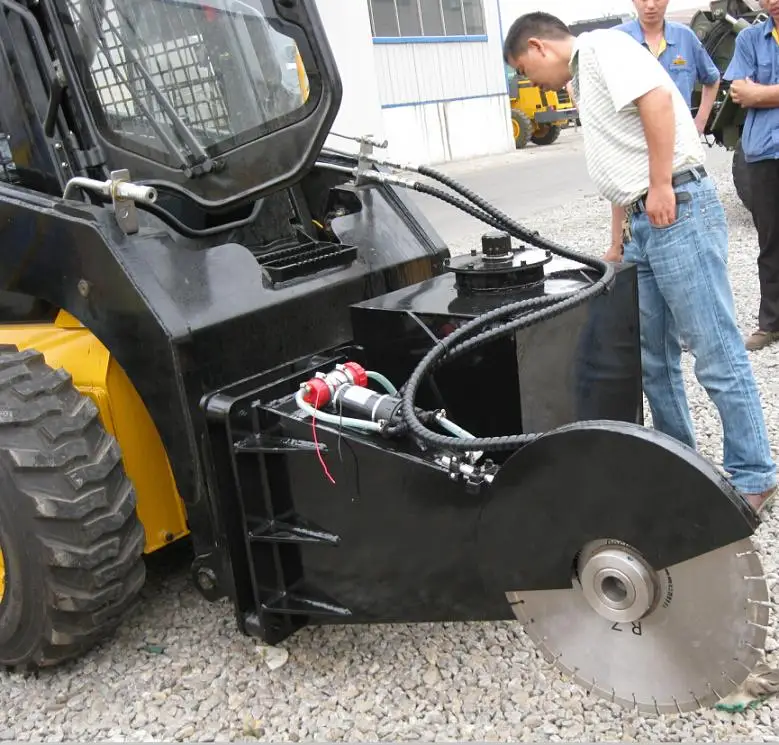

1. Blade guard: blade guard can be folded, easy to install and remove blades.

2. Mud guard: mud splash guard can be reduced to the surrounding water.

3. Hose fixer: allows water hoses and cables away from the fixed operator's work area.

4. Box-shaped frame: the newly developed box-shaped frame with a lightweight design though, but with high torsional

rigidity.

5. POWER V power transmission belt with the best performance.

6. Flush cutting equipment and provides the front indicator annex.

7. 17L tank: water flow can be adjusted so that a tank can be used longer.

Model

030740

030760

030770

Blade Type

Diamond Type

Diamond Type

Diamond Type

Blade Thickness (mm)

5

5

5

Max. Diameter (mm)

400

600

700

Max. Cutting Depth (mm)

120

220

270

Flow (L/min)

50-60

50-60

50-60

Pressure (Mpa)

16-21

16-21

16-21

Weight (Kg)

300

348

350

Overall Dimensions (L*W*H mm)

1155*1200*760

1420*1200*820

1420*1200*820
