Telhoo End Forming Machine for Tube and Pipe Expanding Shrinking Beading

Supplier: Zhangjiagang Telhoo Machinery Manufacturer Co., Ltd.
Region: Jiangsu, China
Contact: Mr Tony Lu
Price: $6000.00 / 2 - 2 sets
$5700.00 / >=3 sets
Min. Order: 2 sets

Click here to contact

Product details

Model:	SG-60 tube and pipe shrinking machine;	After-sales Service Provided:	Free spare parts,Video technical support;
Applicable Industries:	Building Material Shops,Construction works ;	Max.Shrinking Capacity (Thickness)(mm):	3;
Machine Type:	Pipe End Forming Machine;	Single package size:	210X70X140 cm;
After Warranty Service:	Video technical support;	Selling Units:	Single item;
Packaging Detail:	1 set/wooden case;	Material:	Stainess Steel, steel, copper, aluminum;
Extra Services:	End Forming;	Weight (KG):	1500;
Voltage:	380V, Customized tube and pipe shrinking machine;	Power (kW):	5.5;
Year:	2020;	Place of Origin:	Jiangsu China;
Warranty:	12 Months,1 Year;	Local Service Location:	India,Russia,Thailand;
Showroom Location:	India,Russia,Thailand;	Package Preview:	;
Max.Shrinking Capacity (Diameter)(mm):	60;	Automation:	Automatic;
Max. Tube Contracting Length (mm):	150;	Single gross weight:	950.0 KG;
Color:	Blue flaring machine;	Station(mold):	Two;
Tube Contracting Cycle (s):	10 - 15;	Certification:	ce;
name:	End Forming Machine for Tube and Pipe Expanding Shrinking Beading;	Key Selling Points:	Long Service Life;
Raw Material:	PIPE;	Condition:	New;
Material / Metal Processed:	Various of metal pipe;	Power:	Hydraulic;
Brand Name:	Telhoo;	control:	microcomputer control;
Function:	Reduce, expand, flare, forming;

Product Description

Tube end flaring machine is widely used in numerous end forming applications and industries, such as automotive exhausts, furniture, air conditioning, among others. Forming controlled by hydraulic, clamping controlled by hydraulic. Microcomputer controller with English or any other language.

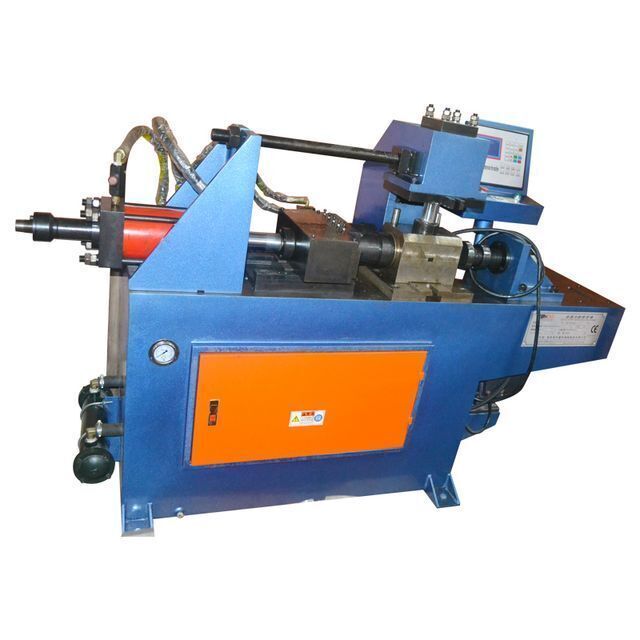

Product Name: SG-60 Tube End Forming Machine
Max. forming capacity: Φ60 mm
Forming length: up to 150mm

Detailed Images

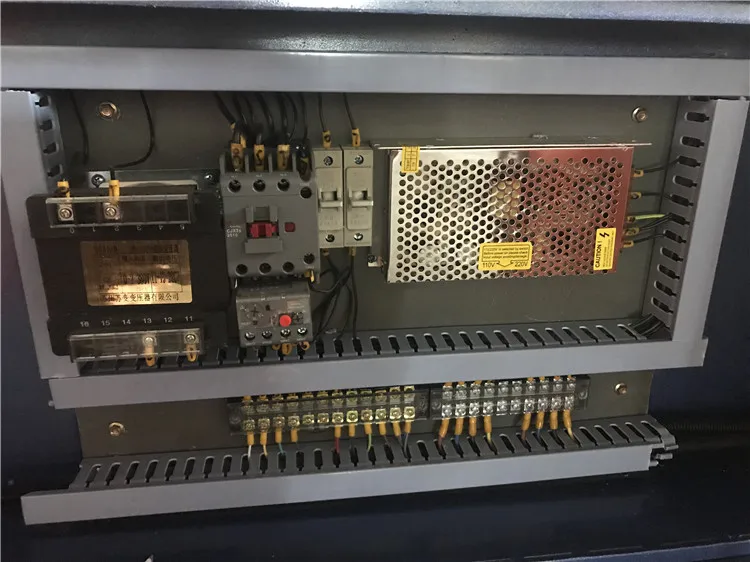

1) NC Control Unit: Easy Operation and Maintenance

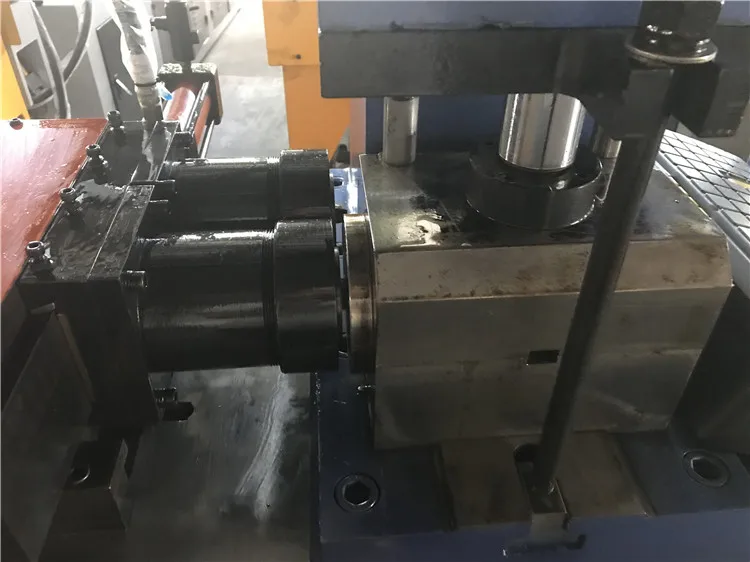

2) Suitable for the shrinking of various metal pipes with different material and different shape
3) Equipped with emergency stop device. Both manual and automatic operations are available
4) Shrinking stroke 150mm.

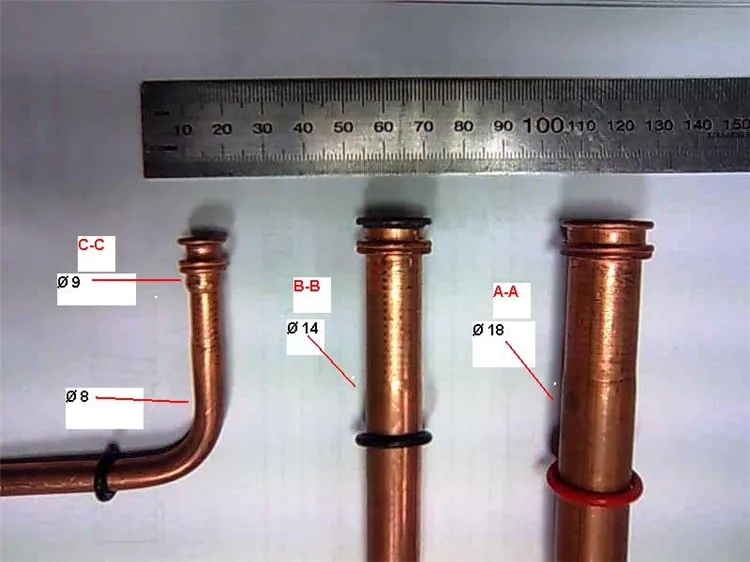

5) Forming shapes can be convex, concave, sectional, long 7 flat, square, V-shaped, open elbow and flat elbow. The design of the tooling varies with workpiece and customers' requirements

Size Information

Type	SG-40	SG-60	SG-80	SG-100
Max tube(mm)	40*2.0	60*3.0	80*3.0	100*3.5
Max processing length	110	130	150	180
Oil pressure (Mpa)	16	16	16	16
Working speed(mm/s)	40	30	30	20
Weight ( kg)	600	950	1500	1800
Remark	The max processing length can according to customers requirement

Related Products

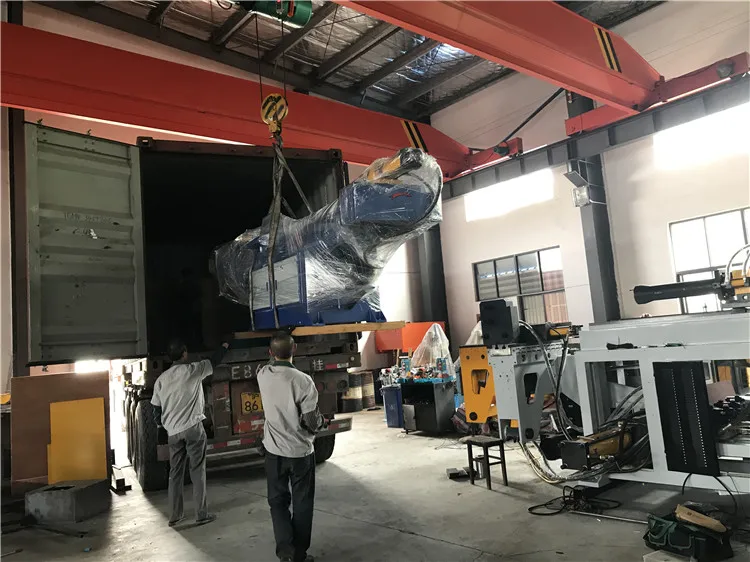

Packing&Shipping

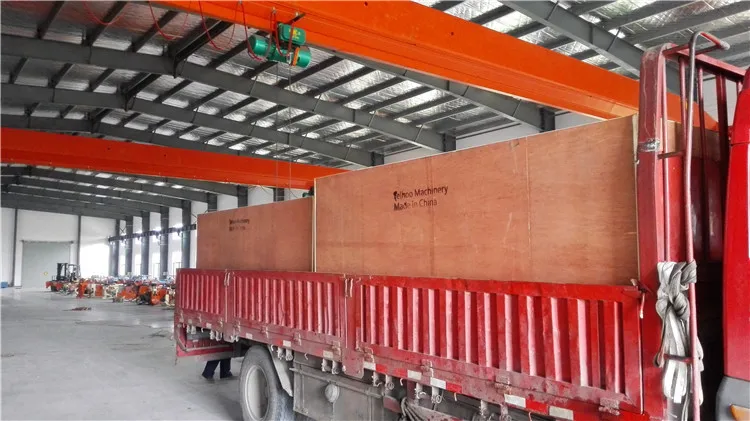

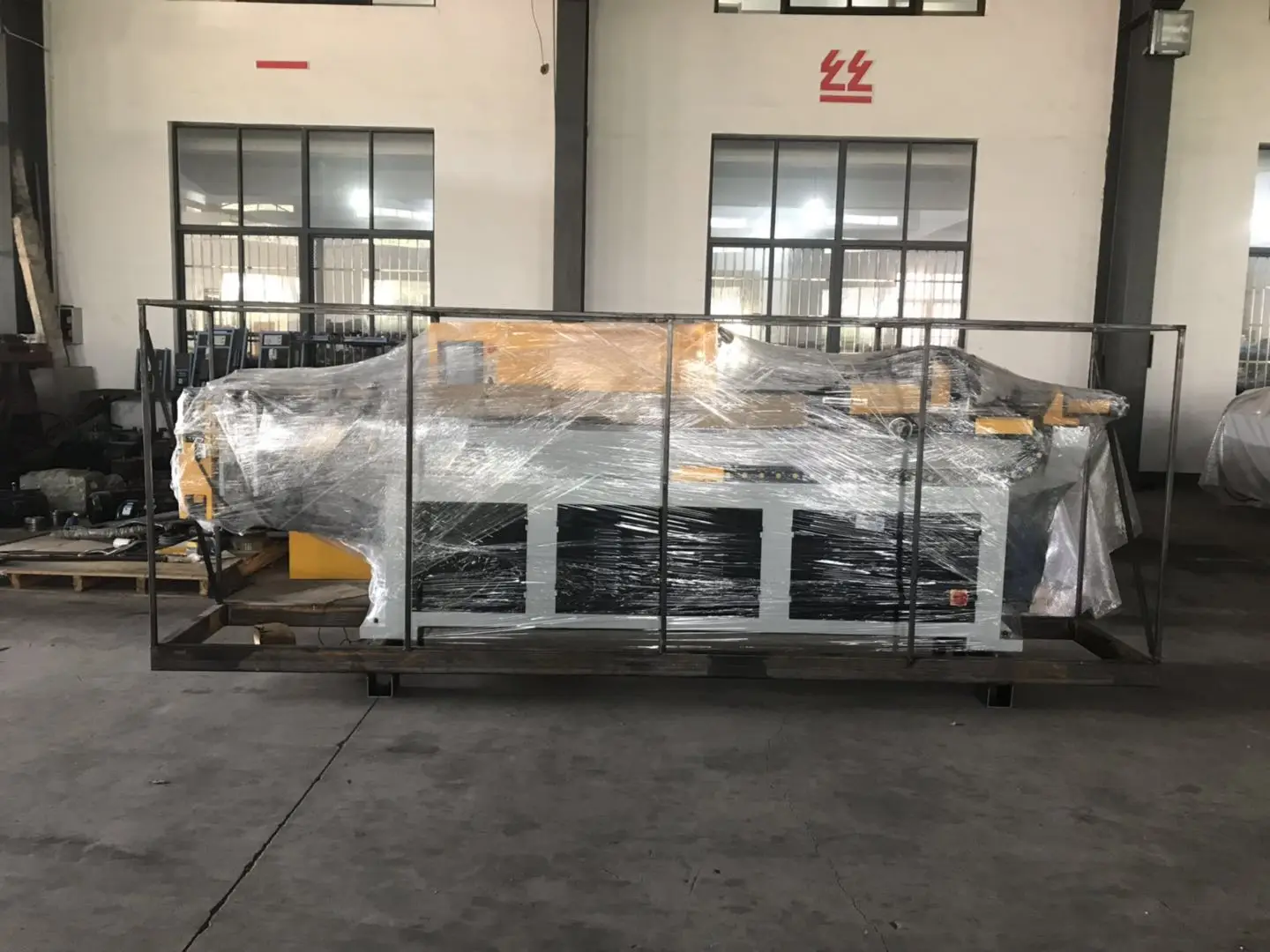

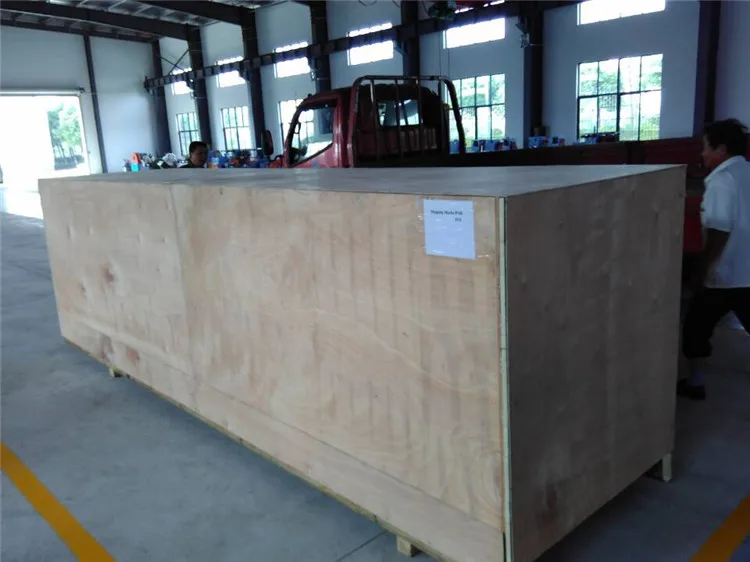

Packing Details : The normal package is wooden box and iron frame.
Delivery Details :15 days after deposit

After Sales Service

1.Warranty period: We guarantee machine quality for one year, during this year, if spare parts of the machine were damaged, we can send the component to the customer by DHL, TNT freely.
2.Our factory can send our engineer to the customer’s factory install, commission and training freely. The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
3.Our factory provide the service for the customer forever, if the customer need operation help, can contact us by Skype, Email and Telephone at any time, we provide 24 hours on-line service.
