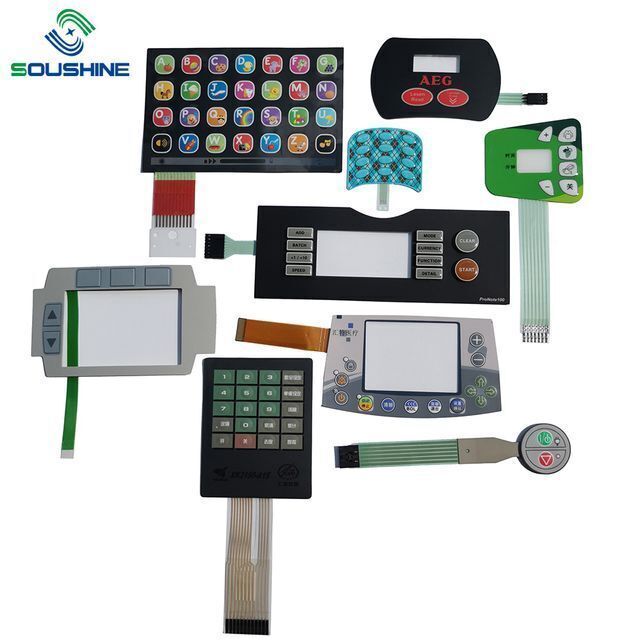

Custom Household Appliances PVC Membrane Control Panel Graphic Overlay

Supplier: Dongguan Nanhuang Industry Co., Ltd.
Region: Guangdong, China
Contact: Mr Adam Liang
Price: $0.40 /piece
Min. Order: 1 piece

Click here to contact

Product details

Storage temperature Flat/Metal dome:	-40°cto +80°c;	Brand Name:	OEM;
Port:	Guangzhou Shenzhen;	Packaging Detail:	1)Wrap in air bubble film 2) Put into foam box 3) Packed with extra carton box, which make sure the goods safety in transportation. 4) We can accept customized package.;
Model Number:	NH-A05-3480;	Product Keywords:	membrane overlay,membrane keyboard switch,membrane keyboard;
Supply Ability:	50000 Pieces per Month;	Keypad Button Material:	PET/PC;
Operating temperature Flat/Metal dome:	-20°c to +80°c;	Payment Terms:	L/C,Western Union,D/P,T/T,MoneyGram;
Contact bounce:	5 to 30ms;	Actuation force tolerance:	/- 20 to 45g;
Open circuit resistance:	≥ 10M at 100V;	color:	Accroding to Pantone or RAL color;
Type:	LED Membrane Switch, Membrane Keypad;	Tactile ratio:	FC > 40%;
Application:	Home Appliance;	Place of Origin:	Guangdong, China;
Switch stroke:	0.1 to 0.6mm;

Product Description

Membrane switch design
Material	PET(polyester),PC(polycarbonate)
Dimension	According to customer's demand,OEM service
Color	Pantone and RALcolor matching system.
Rear Adhesive	3M467,3M468,3M9448 etc.
Features	1)with metal dome,
	2)Key:embossed or flat
	3)screen printing
	4)with clear or transparent window
	5)glossy surface or matte surface
	6)Standard Tolerances:+/- 0.10inch(+/-0.25mm)
Best service + best price+best quality

ne Manufacturer Custo

Application

m Prototype Cafe Machine Membrane Switch

Company Information

Certifications

FAQ

1. Are you manufacturer or trading company?

A:We are manufacturer and you are welcome to visit our factory, also video and pictures will let you check.

2. How to make an ORDER and QUOTATION?
Infomation will need as below:

(1)Drawings, photos, requirement, quantity
(2)Overlay Dimension:
Material: PET/PC
Finish:Matte/Glossy
Adhesive:3M467/3M468
Button :Embossed/Flat/Metal/Silicone/Rubber/Gum
LED :YES/NO
Pin: need to check the circuit diagram
Pitch:2.54mm
Cable Length:As requirement
Connector: Female /Male/DoPont Connector
Hole: None

And better send us the design drawing or samples together with other detailed datas, then we’ll customize the membrane switch upon your requests.

3. What about the sample policy, For FREE?
(1)Free Samples: If you paid the shipment fee, we can provide free samples for you.
(2)Custom Samples: You can give me the drawings, requirement and quantity, we will give you a quotation.
4. What is the production time?
The sample time is about 1-7days.The quantity order would take 1-3 weeks.For complicated product should take 1 more week.
5. Can you do the design for us?
Yes, no problem
There ate many professional engineer having rich experience in graphic overlays& circuit designing.
Just let us know your ideas and we will help to carry out your ideas into perfect products.
If you send me your samples, we will design the drawings based on the samples and can revise the graphic of the face.
6.How to control quality?
(1)We process the products strictly based on the raw material list.
(2)Our many engineer own many years experience and are very responsible.
(3)Warranty period is one year. If you find some products is bad, you can tell us, we will give you solutions.

7. How to guarantee the after sales service?
We will track the production situation of the goods during the whole process,we promise the goods will be shipped to you smoothly. If any problem happened, we will provide the best solution for you.
8. Shipping ways & Delivery Time?
Shipping by: UPS/ Fedex /DHL /TNT or other ways specified.
Delivery time: 3~20 days after payment received, which depends on your choice.
9. Payment terms:As your needs, mainly include trade assurance, TT, West Union, Paypal etc.100% balance before shipment.

china factory custom produce membrane keypad
