Input voltage: | 12v/24v; | Packaging Detail: | Paper carton, 40 pcs in one carton; |
Product name: | Car Power Inverter; | Battery Type: | Lithium; |
Specification: | MINI; | Place of Origin: | Guangdong China; |
Protection: | Reverse Connect/ Over Load; | Output Waveform: | Midified Sine Wave; |
Single package size: | 20X12X8 cm; | Output Voltage: | 110V/120V/220V/230V/240V; |
Color: | Silver; | Power: | 500W; |
Brand Name: | Liaoyuan; | Model Number: | DXP-500HUSB; |
Single gross weight: | 0.62 KG; | Selling Units: | Single item; |
Application: | Solar Power System Home/ Car Power; |
Specification:
1.modified sine wave inverter
2.high-end chip
3.soft-start function
4.dc12v to ac 220v
5.warranty:12 months
Feature:
1. Soft-start (1>Gradual voltage ramp-up during inverter startup, This eliminates failed cold starts under load. 2>.Output that momentarily dips in voltage and quickly recovers to allow large motorized loads to start. This eliminates almost all shutdowns from momentary overloads)
2. Imported with original packaging components
3.100% Full Power
4. THD<3%
5. Built-in High Speed Cooling Fan.
6. Anodized Aluminum Case: Provides durability and maximum heat dissipation.
7. All protections (Low Voltage Alarm; Low Voltage Shut Down; Over Load Production; Over Voltage Shut Down; Over Thermal Protection; Short Circuit Protection)
8. One Year Warranty.(In the normal case of using this product, any raw materials or the production process quality problems by the date of purchase within one year, the factory is responsible for the free repair.)
9. CE RoSH SGS GMC IP30 Approved

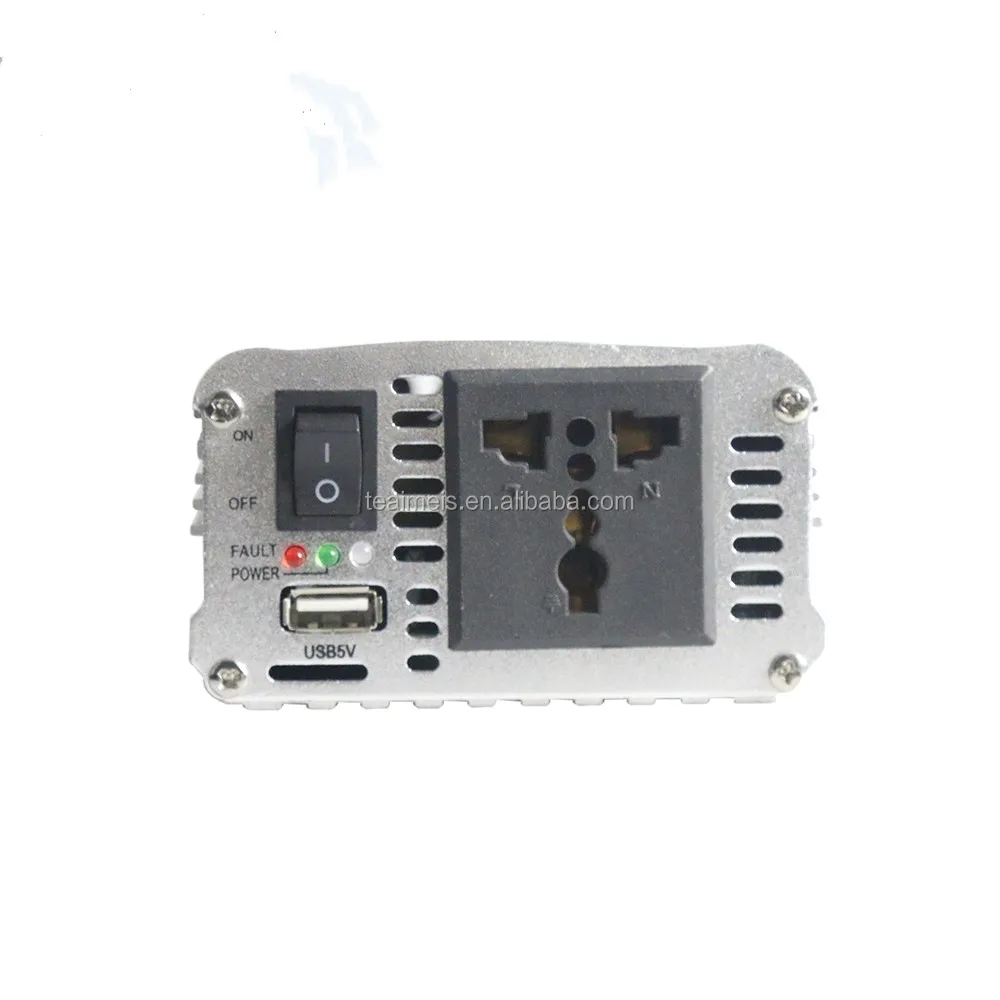

10.Two AC Socket
11.On/off switch
12.Isolated ground neutral

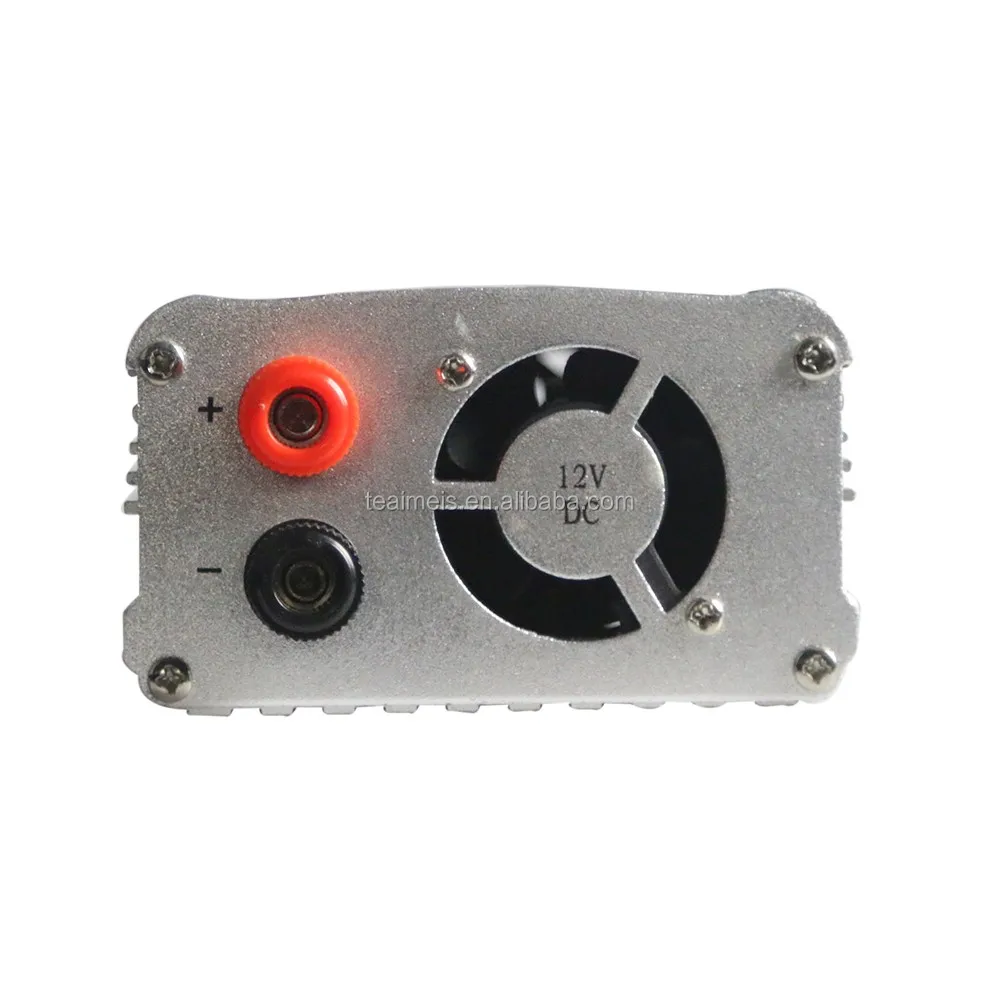

13.Positive power input terminal.
14.Negative power input terminal.
15.LED for over load protection
16.LED for power on
Rate power: | 500W | ||||||
Input voltage: | DC12V | DC24V | DC12V | DC24V | |||
Output voltage: | 100VAC or 110VAC or 120VAC±5% | 220VAC or 230VAC or 240VAC±5% | |||||
Unload current less than | 1.1A | 0.7A | 1.1A | 0.7A | |||
Frequency: | 50Hz±0.5Hz or 60Hz±0.5Hz | ||||||
Output wave form: | Modified Sine Wave | ||||||
USB port: | 5V 2.1A | ||||||
Efficiency: | ≥90% |
