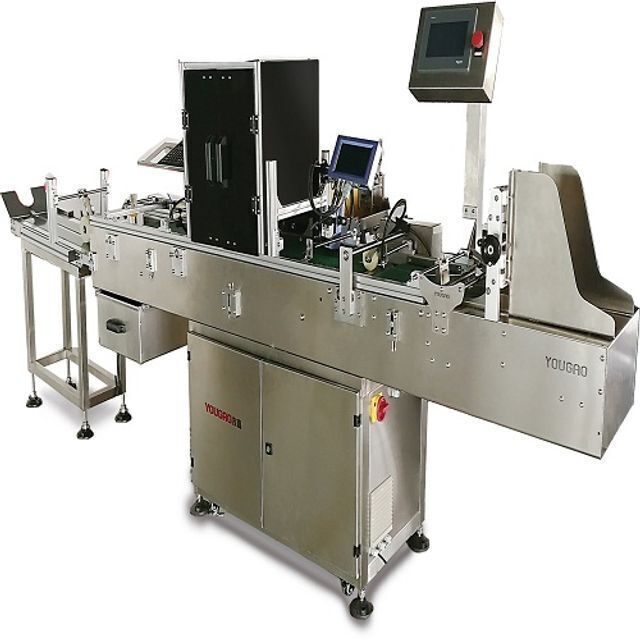

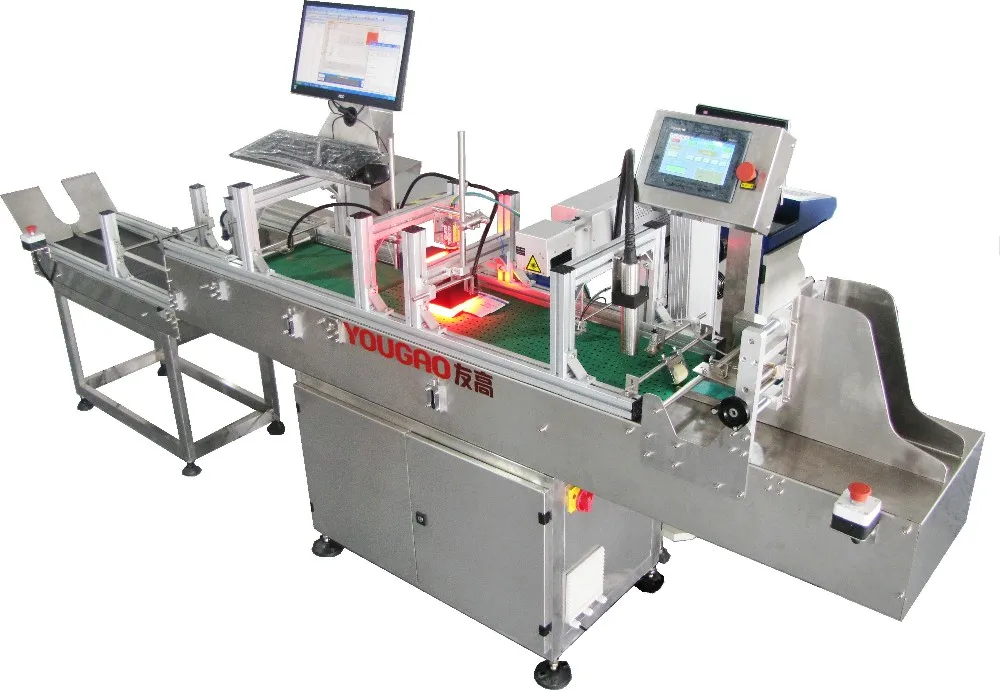

YOUGAO Mark 101 Automatic detection device marking machine match with TTO

Product details
Applicable Industries:Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;Type:CONVEYOR;
Brand Name:YOUGAO;Function:Auxiliary Equipment;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Usage:Food;
Place of Origin:Anhui China;Key Selling Points:High-accuracy;
Condition:New;Port:shanghai shenzhen guangzhou;
Showroom Location:None;Dimension(L*W*H):2300*580*1200mm;
Certification:N/A;Automatic Grade:Automatic;
After Warranty Service:Online support;Packaging Detail:carton package :2.0CMB weight: 160 kg YOUGAO Mark 101 Automatic detection device marking machine match with TTO;
Voltage:220V/110V;Warranty:1 Year;
Supply Ability:1000 Case/Cases per Month;Local Service Location:None;
Weight:160 kg;After-sales Service Provided:No overseas service provided;
Product Description

Product Application

Application

Applicable to separate stacked products automatically into single sheets to the conveyor belt, after code assignment (electronic supervision code, logistics code, one-dimensional code and two-dimensional code, etc.) by the code assignment equipment (laser machine, coding machine, TTO), the detection system performs data acquisition and calibration, the inspected nonconforming products are rejected and conforming products are received automatically


power supply
220V
outside size
2300*580*1200mm
power
780w
original country
China
size of object to be separated
length:60-320mm
width:70-300mm

Main Features

YOUGAOMARK identification system is applied in the sectors of food, medicine, seeds, pesticides, daily-use chemicals, tobacco, chemical engineering, etc., can complete code assignment and detection of flaky objects, detection and rejection of non-conforming products and automatic receiving of conforming products, realizes full automation of identification (electronic supervision code, logistics code, one-dimensional code and two-dimensional code, digital code, anti-counterfeiting mark, pattern, etc.) process, makes full used of high-speed jet printing of code assignment equipment, the detection and rejection function provides guarantee for accurate and acceptable spray printing of identifications, therefore, it is the best choice for improving production efficiency and reducing labor.



1.Scope of applicationSuitable for spray printing of identifications on packing bags of such materials as paper, plastic, metal, etc., and soft and hard sheet objects such as unpackaged medicine case, card, label, etc.



2.YOUGAOMARK

Function characteristics of YOUGAOMARK series

1)System category: offline identification system and online identification system

2)System composition modules: paging section, code assignment section, detection and rejection section, automatic receiving

3)System configuration: the type without industrial control system and the type with industrial control system

4)Configuration of whole machine: standard configuration type and high configuration type

5)Function realization way of each module:

a)Paging section: friction type, reverse runner type, stereo type and vacuum adsorption type

b)Code assignment section: can be equipped with coding machine, laser machine, labeling machine, TTO

c)Detection realization way: visual camera detection, visual sensor detection, 2D code reader detection, barcode scanner detection, RFID detection

d)Rejection way: blow rejection, flap rejection, lane rejection

e)Automatic receiving section: fully automatic receiving machine, semi-automatic receiving machine, fully automatic receiving platform and simple receiving device, all can realize fish scale type neat receiving




Certifications
Detailed Images

Machine Parts

1.impoatant parts for paging machine
2.girdle and toothed belt


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
0.7CMB
Weight
93 kg



Packaging Details
The normal package is carton box(Size: L*W*H). we also  use wooden for pack, it according to customers special request.
