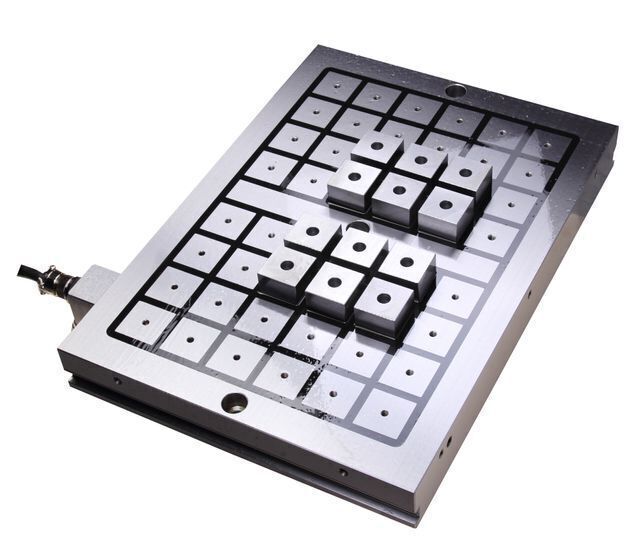

50x50mm Pole CNC machining center Electro Permanent Magnetic Chuck

Supplier: Xiamen U Polemag Electronics & Technology Co., Ltd.
Region: Fujian, China
Contact: Mr Danny Liu
Price: $1500.00 / 10 - 99 sets
$999.00 / >=100 sets
Min. Order: 10 sets

Click here to contact

Product details

Brand Name:	U-polemag;	Each pole magnetic force:	More than 380kgf;
Control Unit:	Electro;	MOQ:	1 Set;
Material:	permanent magnet;	Product Name:	Electro Permanent Magnetic Chuck;
Magnet type:	AlNiCo;	Packaging Detail:	Wood carton package for magnetic chuck;
Model Number:	UPM;	Power cable length:	3M;
Number of Jaws:	6;	Power:	Electric;
Port:	Xiamen;	Payment Terms:	T/T,Western Union;
Place of Origin:	China;	Package Preview:	;
Size:	Customized Size;	Usage:	Metal cutting, CNC machining center and Milling machine;
Supply Ability:	100 Set/Sets per Month magnetic chuck;	Each pole size:	50x50mm;
Poles number:	Customzied;

Product Description

Description:

1.Pole dimension:50x50mm,the clamping force with 380kgf for each pole
2.Used for normal drilling,milling,and CNC machining center
3.Best used for the workpieces at least 250x250mm and 10mm thick. Used for samll,medium dimensions with normal operating air gaps
and thinner workpieces.

Model	Dimension(mm)					Poles number	Weight(kgs)
Model		Length	Width	Highth		Poles number	N.W	G.W
EP50-205	470	258	58	18	55	63
EP50-206	595	258	58	24	70	78
EP50-208	775	258	58	30	91	101
EP50-209	900	258	58	36	106	116
EP50-210	1025	258	58	42	120	132
EP50-303	327	315	58	16	47	55
EP50-304	436	315	58	24	63	71
EP50-305	496	315	58	28	71	79
EP50-306	595	315	58	32	85	95
EP50-308	775	315	58	40	111	121
EP50-309	900	315	58	48	129	141
EP50-310	1025	315	58	56	147	159
EP50-403	430	320	58	24	63	72
EP50-404	430	430	58	30	84	93
EP50-405	490	430	58	36	96	101
EP50-406	605	436	58	48	120	130
EP50-408	775	436	58	60	154	164
EP50-409	900	436	58	72	179	191
EP50-410	1000	400	68	84	214	227
EP50-503	500	315	58	28	72	81
EP50-505	510	500	58	42	116	123
EP50-506	605	500	58	56	138	148
EP50-508	770	500	68	70	204	214
EP50-509	900	500	68	84	238	250
EP50-510	1010	500	68	98	267	278
EP50-603	600	310	58	32	85	103
EP50-604	600	436	58	48	120	130
EP50-605	600	500	58	56	140	150
EP50-606	615	600	58	72	195	207
EP50-608	625	770	68	90	255	267
EP50-609	890	615	68	108	290	320
EP50-610	1010	615	68	126	329	349

Features & Characteristics

Technical Characteristics

Model	50 Series	75 Series
Pole size	50x50mm	75X75mm
Magnetic force of each pole	380kgs	750kgs
Thickness of each plate	53mm※	53mm※
Max.working temperature (mold contact face)	70°C※	70°C※
Depth of magnetic fluex	12mm	18mm
Standard voltages	220V 380V 50/60Hz	220V 380V 50/60Hz
Electrical input	≤60A	≤60A

※※Higher working temperature can be fixed according to requirements

※※Thickness can be fixed according to requirementst

Configure

1	Two Magnetic plates:used for fixed mould and moving mould
2	Electrical controlling block:with PLC joint and safe joint,remote controller
3	Power supply voltage:380V,50Hz,2 phase(other customization)
4	Keys with magnetic and demagnetization buttons,indicator lamp and safe keys
5	Proximity sensors are installed on each sucker
6	one set of fixed bolt
7	One piece of power cables(without joint)with 3 meter, 2pcs of 3-meter cables from controller to sucker
8	user is guide

How to work

Demagnetization

During the Demag phase, the magnetic flux is short circuited inside the magnetic module frame, perfectly releasing the mold for its changeover

Magnetization

During the Mag phase, the magnetic flux is short-circuited outside the magnetic surface clamping the mold with a very limited magnetic depth, so as not to affect internal part of the engaged mold

Application
