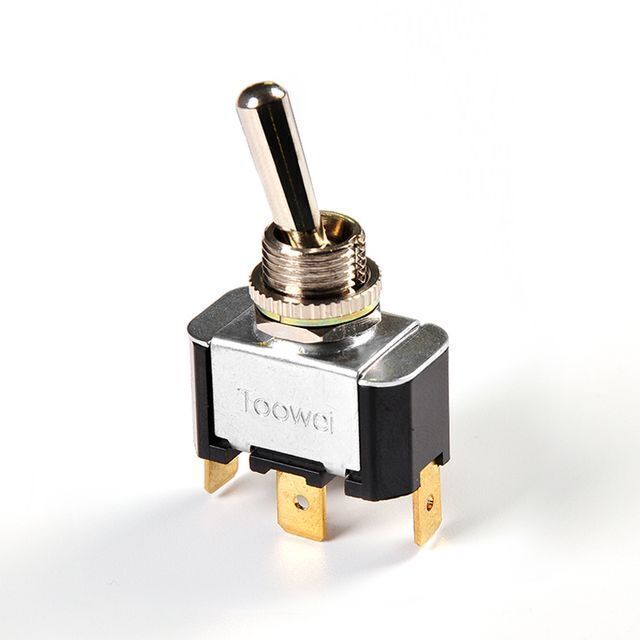

Waterproof IP67 250VAC ON-OFF-ON Mini metal Toggle Switch

Supplier: Yueqing Toowei Electronic Switch Manufacturer
Region: Zhejiang, China
Contact: Mr Ray Jin
Price: $0.81 / 1 - 499 pieces
$0.76 / 500 - 999 pieces
$0.73 / >=1000 pieces
Min. Order: 1 piece

Click here to contact

Product details

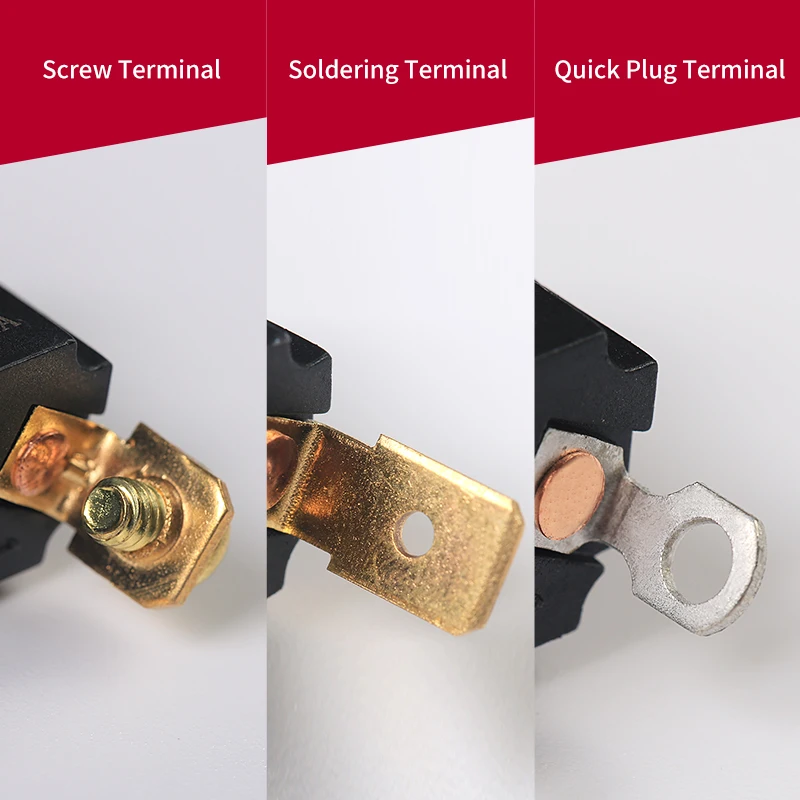

Terminal Type:	Quick plug terminal;	Pins:	3Pin;
Packaging Detail:	Carton packing 20pcs/box , 25 boxes/ CTN;	Rating Value:	10A 250VAC /15A 125VAC;
Max. Voltage:	250VAC;	Poles:	SPDT;
Certifications:	CE,FCC, ISO;	Ambient Temperature:	-25 c to +80 c;
Max. Current:	10A;	Function:	ON-OFF-ON;
Mounting Dimension:	Diameter 12mm+/-0.2;	Single package size:	17X9X9 cm;
Base Material:	bakelite;	Selling Units:	Single item;
Mechanical Life:	50000 Cycles;	Installation:	Bushing mount;
Package Preview:	;	Model Number:	T6013T;
Single gross weight:	0.15 KG;	Brand Name:	Toowei;
Place of Origin:	Zhejiang China;

Product Description

The design of the T600 series products is based on suiting most needs. The selection of various transmissions, bushes, terminals and circuits makes this multifunctional switch easy to integrate into various applications. The application range of T series:food machinery, generator, industrial control, office automation and market, etc. These are in low-voltage AC / DC applications,as well as in the proper operating range.

Specification

Toggle Switch Information
Model	T6013T
Rated value	10A 250VAC/15A 125VAC
Base material	DuPont Nylon
Ambient Temperature	-25~+80degree
Founction	ON-OFF-ON
Mounting Dimension	Diameter 12+0.2mm
Terminal Form	Quick plug terminal
Mounting Method	Bakelite
Usage	Food machinery, generators, industrial control, office automation

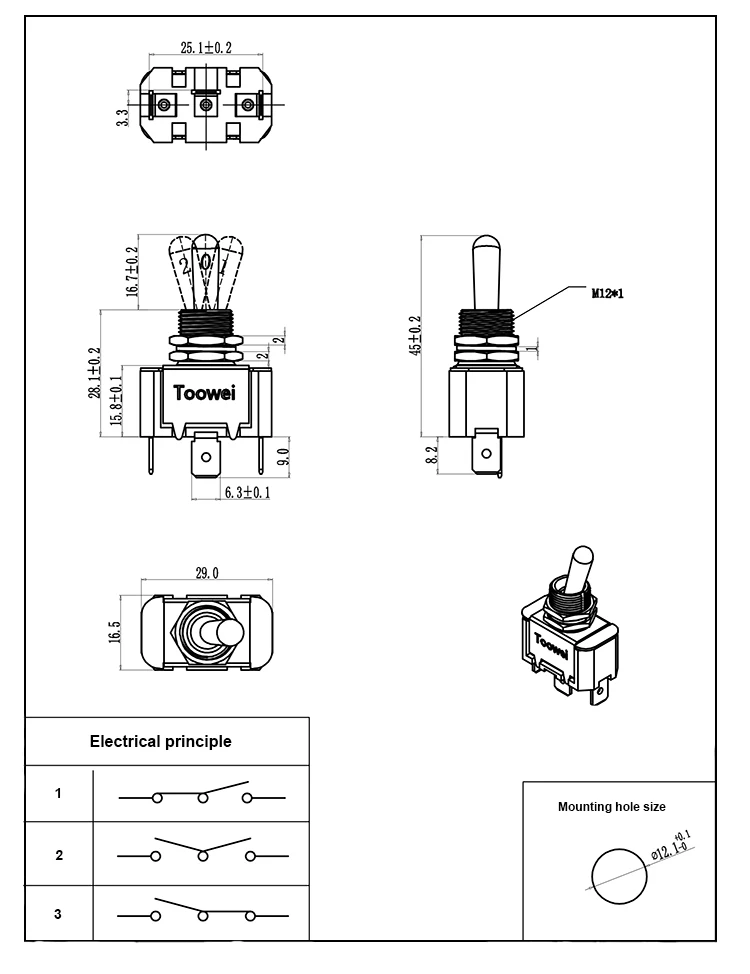

Model Size

Technical parameters
Rating value	10A 250VAC/15A 125VAC	Operating force	8N-24N
Ambient temperature	-25℃~+85℃	Withstand voltage	1500VAC 50/60hz
Leakage current	5mA	Insulation resistance	≥100mΩ
Durability	Electrical life 20,000 times Mechanical life 50,000 times	Humidity	below 85% RH
Solderable soldering iron	345±5° 1~2S	Solder resistance soldering iron	45±5° 3~5S
Terminal form	Quick plug terminal	Mounting method	Bushing mount
