50 Miles Amplified HDTV Antenna Digital Indoor UHF Antenna with Coax Cable

Product details
Single gross weight:0.4 KG;Size:300x330 or 230x230mm;
Place of Origin:Guangdong China (Mainland);Selling Units:Single item;
Type:TV antenna;Delivery Detail:0 days after payment;
Cable:RF174;Max Input Power:50w;
Gain:30dBi;Bandwidth:470~862MHz;
Frequency Range:470~862MHz;Color:Black;
Package Type:Standard Export Package;Connect Type:IEC(Customized);
Type:Indoor;Single package size:34X35X3 cm;
V.S.W.R:below 1.5;Input Impendence:50;
Brand Name:OEM;Model Number:TV-003;

VHF UHF TV Antenna 50 Miles Amplified HD Digital Indoor Adapter Coax Cable TV Antenna



Product Description

Working Frequency : VHF(170-240Mhz) \ UHF(470-860Mhz) Compatible with 720p, 1080i, 1080p/ ATSC
Impedence : 75 Ω
LNA Gain : 30dB
Connectors : F Male
Reception Range: 75 miles
Size:330*300*0.6mm
Cable : 1.5C-2V / Black L=5M
Voltage : 5V

Before purchasing our antenna please visit https://www.tablotv.com/tools/ to make sure you have stations within range.
You can only receive channels within the 75 mile radius and mountainous and heavily treed areas will reduce the range considerably.

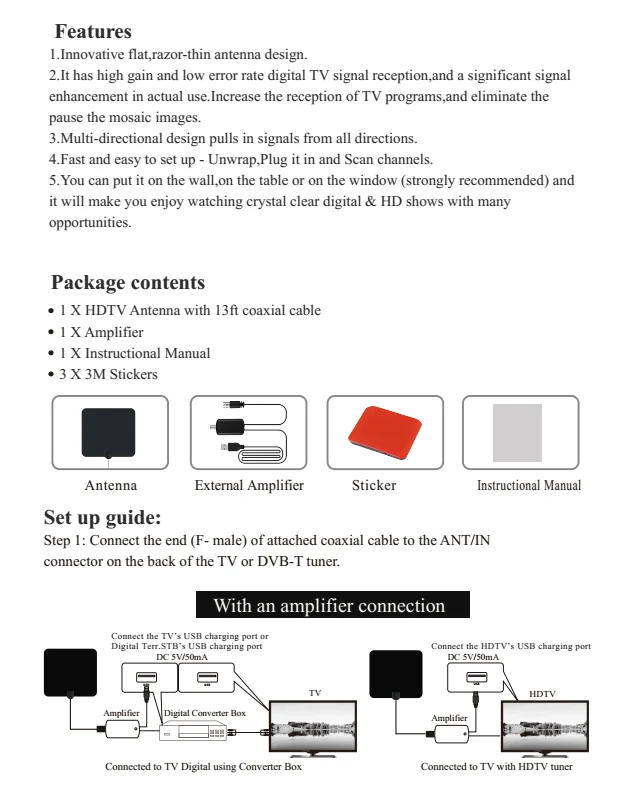

1) Connect the coaxial cable on the antenna to the amplifier.

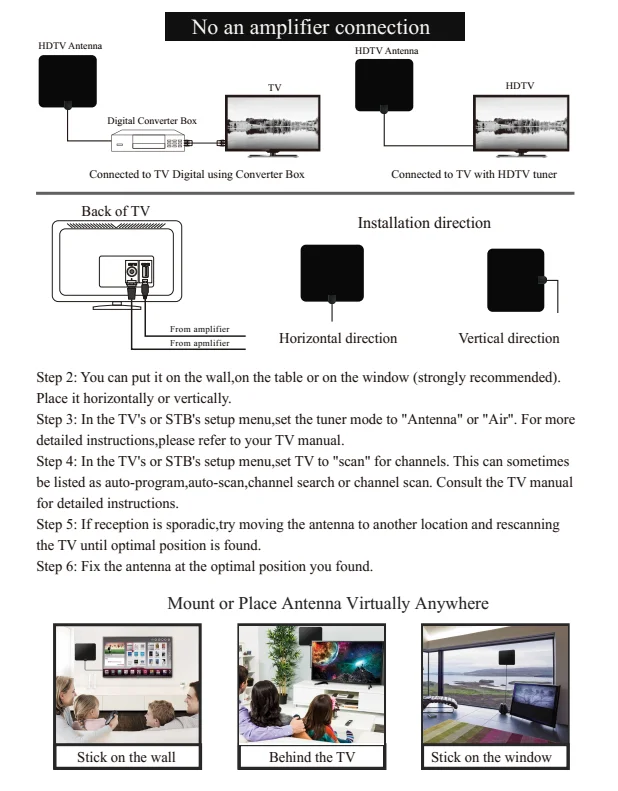

2) Place the antenna, preferably on a window or as high as possible.
3) Connect the cable from the amplifier to the TV.
4) Go to input on your TV and make sure it is set for TV

5) Go to the menu on your TV and make sure it is set for "air" or "antenna", whichever you TV menu has.
6) In the menu on your TV go to "Scan for Channels" or "Channel Scan" etc., select "ok" and scan. This may take up to 20 minutes to complete.

Troubleshooting tips:

1) If after scanning for channels you do not receive any channels move the antenna to a different location and do another channel scan.
2) Make sure your input is set to TV
3) Check all connections
If after doing all the above correctly and you are still unable to receive channels, Please email us.


Package:

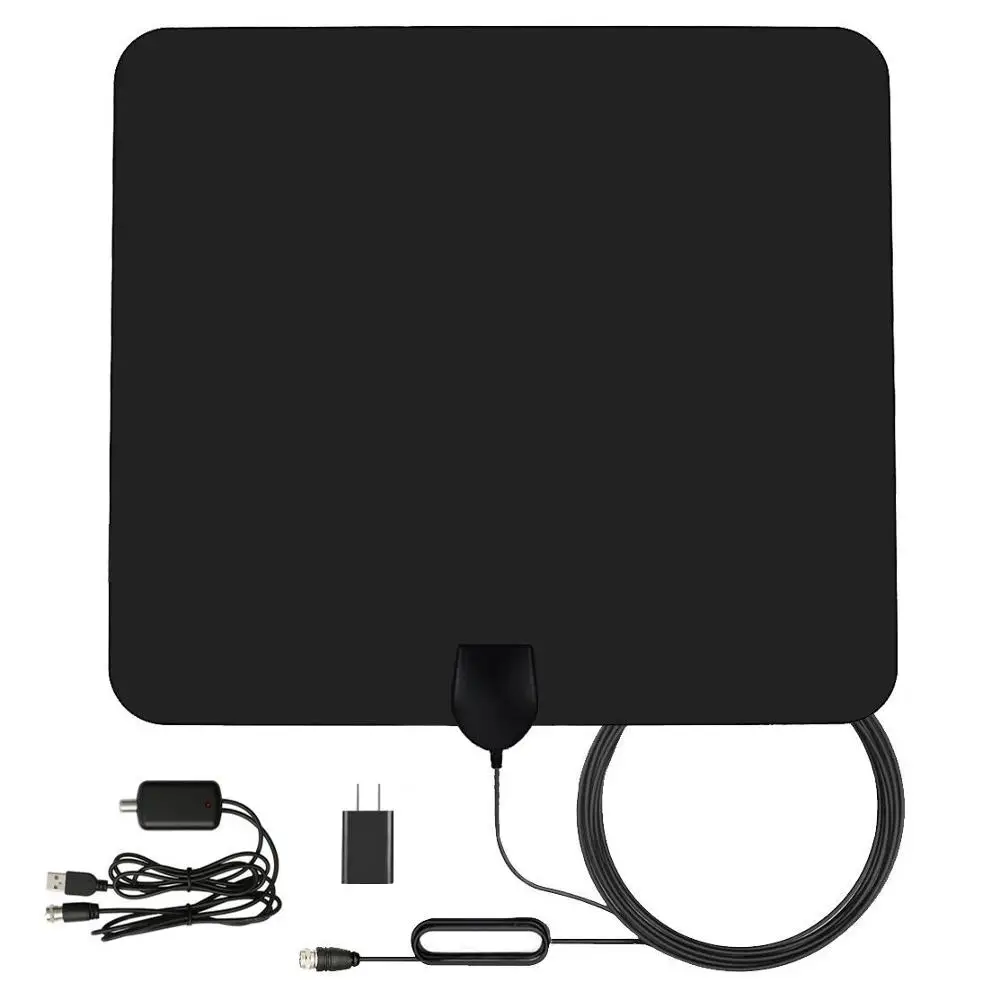

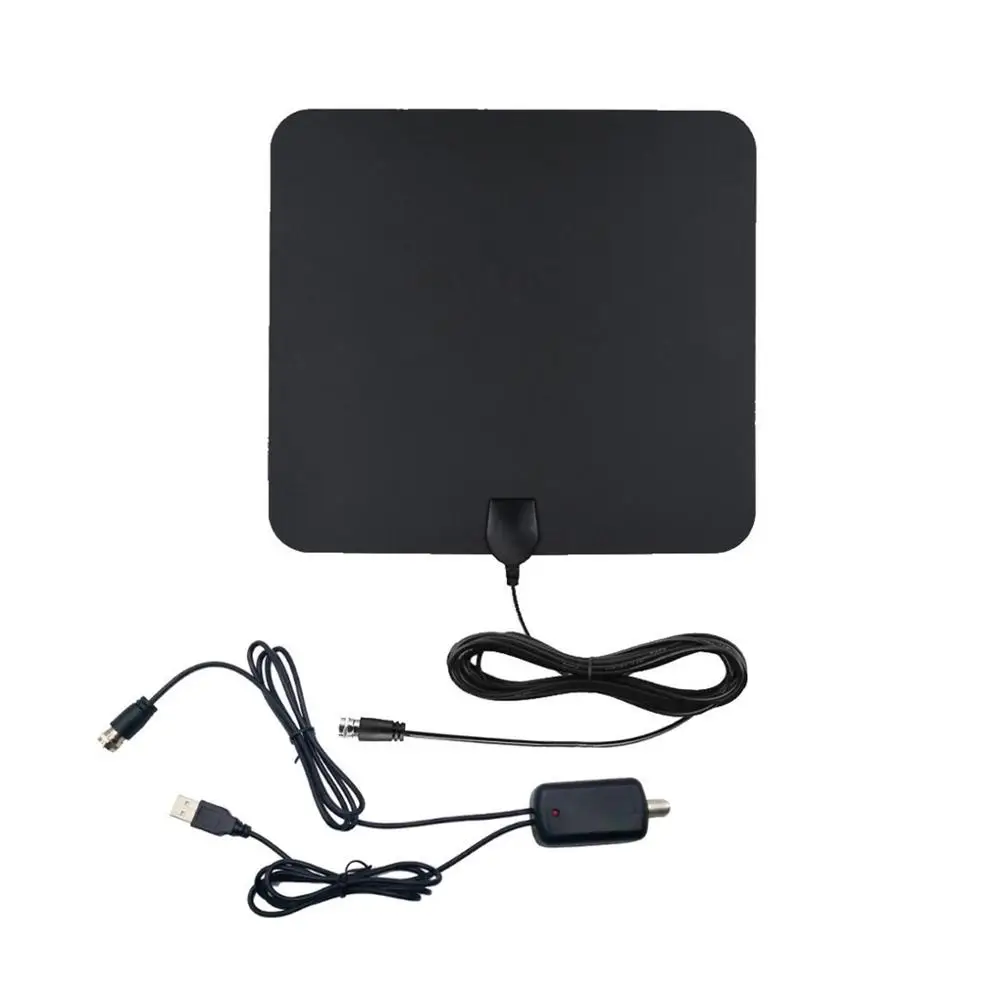

1. Indoor HDTV antenna with 3 meter coax cable
2. US or EU standard charger head
3. Detachable Amplifier
4. Stickers * 2 pcs
5. User manual
