Place of Origin: | Jiangsu China; | Warranty of core components: | 1 Year; |
Name: | paver; | Dimension(L*W*H): | 5690*2070*3590mm; |
UNIQUE SELLING POINT: | High operating efficiency; | Supply Ability: | 100 Unit/Units per Month asphalt paver; |
After-sales Service Provided: | Engineers available to service machinery overseas; | Hydraulic Pump Brand: | KYB; |
Video outgoing-inspection: | Provided; | size of exterior: | 5690*2070*3590mm; |
Applicable Industries: | Construction works ; | Paving Speed: | 0-13m/min; |
Warranty: | 1 year; | Production Capacity: | 240 t/h; |
Max paving width: | 4.5M; | Power: | 70KW; |
Condition: | New; | Marketing Type: | Hot Product 2019; |
Brand Name: | Bigbund; | Port: | any port in china; |
Packaging Detail: | RP452L New Designed Bigbund Official Mini Wheel Asphalt Concrete Paver package:normal sea export package; | Basic Paving Width: | 2m; |
Max. Paving Thickness: | 150mm; | Max gradeability: | 20%; |
Transport Weight: | 11.5t; | Showroom Location: | Philippines,Peru,Indonesia,Pakistan,Kenya,Colombia,Algeria,Bangladesh,Uzbekistan; |
Hydraulic Valve Brand: | optional; | Weight: | 11.5t; |
Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
Product name: | asphalt paver; | Feature: | paver; |
Core Components: | Engine,Pump; | Certification: | ISO; |
Local Service Location: | Philippines,Peru,Indonesia,Pakistan,Kenya,Colombia,Algeria,Bangladesh,Uzbekistan; | Machinery Test Report: | Provided; |
Engine Brand: | weichai; |

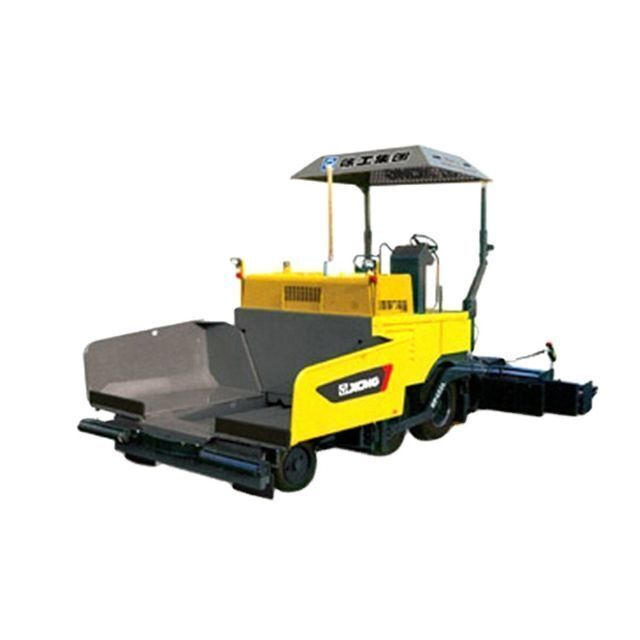

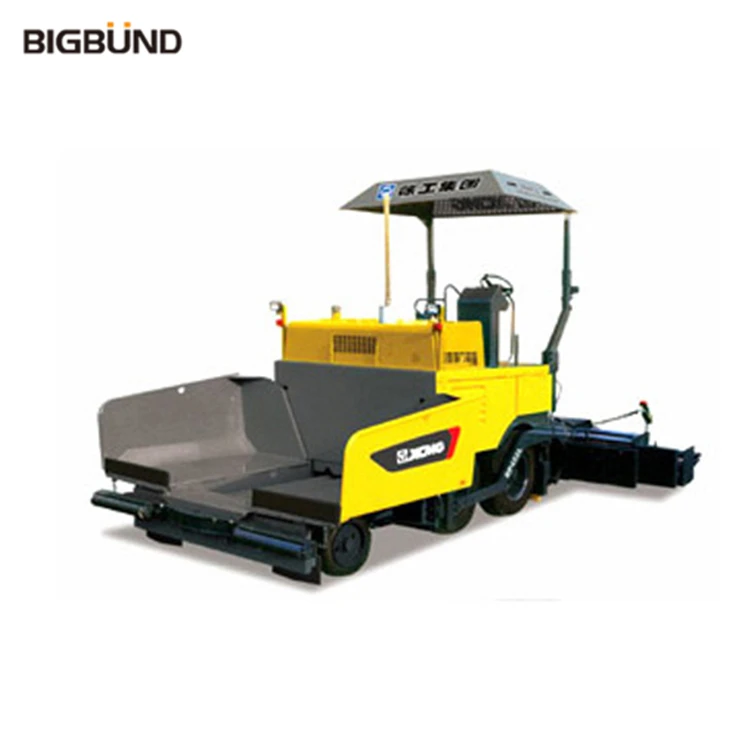

RP452L New Designed Bigbund Official Mini Wheel Asphalt Concrete Paver
Category |
Item |
Unit |
Technical parameter |
Technical parameter |
Basic paving width |
m |
1.8 |
Maximum paving width |
m |
4.5 |
|
Maximum paving thickness |
mm |
260 |
|
Paving speed |
m/min |
0~20 |
|
Traveling speed |
km/h |
0~20 |
|
Hopper capacity |
t |
12 |
|
Theoretic productivity |
t/h |
240 |
|
Gradeability (Paving gear) |
% |
≥20 |
|
Longitudinal evenness |
mm/3m |
≤3 |
|
Lateral gradient error |
% |
±0.02 |
|
Compacting non-uniformity |
% |
≤5 |
|
Diesel engine |
Diesel engine model |
/ |
SC4H |
Rated power/speed |
kW/r/min |
73.5/2000 |
|
Screed |
Tamper speed |
r/min |
0~1500 |
Tamper travel |
mm |
4 |
|
Arch adjustment |
% |
-1~3 |
|
Masses |
Overall mass |
t |
11 |
Maximum working mass |
t |
11.9 |
Q1:Which country do you export to?
Asia:India,Philippines,Thailand,Burma,Vietnam,Bangladesh,Kazakhstan,Turkmenistan,etc.
Middle east:Saudi Arabia,UAE,Jordan,Oman,Syria,Pakistan,etc.
Europe:Russia,Ukraine,Belarus,Bulgaria,etc.
Africa:South Africa,Kenya,Congo,Ethiopia,Nigeria,Ghana,Algeria,Senegal,Tunisia,etc.
South America:Brazil,Peru,Chile,Cuba,Venezuela,Mexico,etc.
Oceania:Papua New Guinea,Australia,etc.
Q2:What is the proportion of your products export?
75% of our products are exported to all over the world.
Q3:What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers.TT,L/C,D/P,depending on the cooperation time,country and contract value.
Q4:What kind of logistic service do you supply?
FOB,CIF,DAP,ETC.
