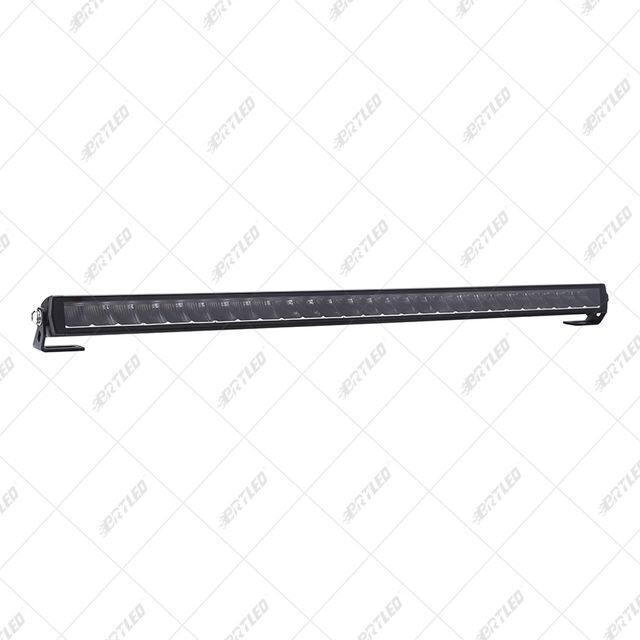

Top Sale Ultra slim 45w- 180w led off road light bar ECE R112

Supplier: Brighter LED Lighting Co., Ltd.
Region: Guangdong, China
Contact: Ms Jessica Xu
Price: $10.00 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Beam Pattern:	Driving beam;	Model:	Universal;
Product name:	Ultra slim driving light bar;	Payment Terms:	Western Union,T/T,Paypal;
Warranty:	12 Months;	Supply Ability:	30000 Piece/Pieces per Month;
Car Model:	universal;	Voltage:	9-36V DC;
Certification:	ECE R112/R10;	Year:	Universal;
Packaging Detail:	Factory Neutral Box or Customized Color Box;	Car Fitment:	Universal;
Lamp Type:	LED;	Lumen:	4100lm/5400lm/8100lm/12200lm/16300;
Port:	Guangzhou;	Place of Origin:	Guangdong China;
Power:	45w/60w/90w/135w/180w;	Environment temperature:	-40° C ~ +60° C;
Model Number:	BL0905S3/BL1205S3/BL1805S3/BL2705S3/BL3605SR3;	LED Chip:	LP led chips;
Type:	Light Bar;	Brand Name:	Brighter LED;
Size:	10inch/14inch/20inch/30inch/40inch;	Application:	Lighting for driving;

Product Description

Features

*Housing: 6063 extruded Aluminum Heat-Sink *Integrated ETM Technology ( Electric thermal managment ) *Optic system：reflector facing technology (light transmittance>95%) *Deutsch Connector available *IP Rate:IP68&IP69K Waterproof *Life Time:50,000+ Hours life span *Deutsch Connector available *Approved by ECE R112/R10

BL0905S3

*45w Ultra Slim Light Bar

*Input voltage:9-36V DC *Light length size: 277*40.5*52.5mm(10inch) *LEDs: 9pcs* 5W LEDS for driving light *Raw lumens: 4100Lm/effective Lumens 3280Lm *Available beam: driving beam (Ref. 30) *Light intensity:1Lux@360m

*Approved by ECE R112/R10 Ref.30

BL1205S3

*60w Ultra Slim Light Bar *Input voltage:9-36V DC *Light length size: 358*40.5*52.5mm(14inch) *LEDs: 12pcs* 5W LEDS for driving light *Raw lumens: 5400Lm/effective Lumens 4600Lm *Available beam: driving beam (◆R112 Approved,Ref. 30) *Light intensity:1Lux@401m

*Approved by ECE R112/R10 Ref.30

BL1805S3

*90W Ultra Slim Light Bar *Input voltage:9-36V DC *Light length size: 520*40.5*52.5mm / 20 inch *LEDs: 18pcs* 5W LEDs *Raw lumens: 8100Lm/effective Lumens 6900Lm *Available beam: driving beam (◆R112 Approved,Ref. 45) *Light intensity:1Lux@450m

*Approved by ECE R112/R10 Ref.45

BL2705S3

*135W Ultra Slim Light Bar *Input voltage:9-36V DC *Light length size: 763*40.5*52.5mm (30 inch) *LEDs: 27pcs* 5W LEDs *Raw lumens: 12200Lm/effective Lumens 9800Lm *Available beam: Spot beam/Combo beam (◆R112 Approved,Ref. 50) *Light intensity:1Lux@644m/1Lux@491m

*Approved by ECE R112/R10 Ref.50

BL3605SR3

*180W Ultra Slim Light Bar *Input voltage:9-36V DC *Light length size: 1006*40.5*52.5mm (30 inch) *LEDs: 36pcs* 5W LEDs *Raw lumens: 16300Lm/effective Lumens 13900Lm *Available beam: Spot beam/Combo beam *Light intensity:1Lux@648m

*Approved by ECE R10
