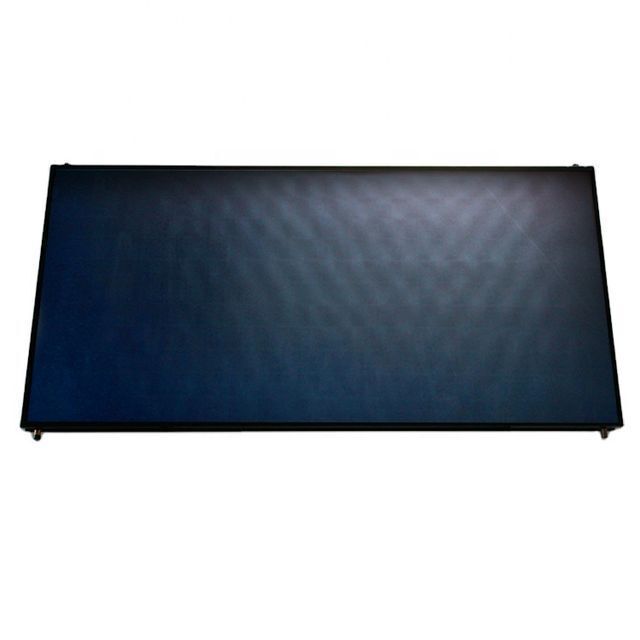

Titanium Solar Energy Collector Prices Flat Plate Blue Copper

Supplier: Dezhou BTE Solar Co., Ltd.
Region: Shandong, China
Contact: Mr BTE Solar Solar
Price: $90.00 / 5 - 99 sets
$88.00 / 100 - 299 sets
$86.00 / >=300 sets
Min. Order: 5 sets

Click here to contact

Product details

Warranty:	5 years;	Product name:	energy factory price flat plate solar collector prices;
Brand Name:	SENTOC&OEM;	Package Preview:	;
Place of Origin:	Shandong China;	Frame:	1.0mm Aluminum;
Certificate:	CE&Solar Keymark;	Film:	Blue Film;
Bottom cover:	0.50mm Hot galvanized plate;	Transmittance:	≥92%;
Insulation:	Bottom: glass fiber, frame: polyester fiber;	Pipe Material:	Copper;
Selling Units:	Single item;	Working Pressure:	0.8MP;
Cover material:	3.2Low-iron tempered -glass;	Packaging Detail:	Solar panel is 1 PC/Carton. Sample put in wooden case, Standard package carton for sea delivery.;
Absorption area(㎡):	1.89;	Single gross weight:	68.0 KG;
Overall size(mm):	1000x2000x80/95;	Single package size:	34X34X10 cm;
Model Number:	BTEB-I/0.6-L-2.0;

Specification

Specification	BTE 2.0-1	BTE 2.0-2	BTE2.0-3
Film	Black Film	Blue Film	Germany imported Blue Film
Overall size(mm)	1000x2000x80/95	1000x2000x80/95	1000x2000x80/95
Frame	1.0mm Aluminum	1.0mmAluminum	1.0mm Aluminum
Absorption area(m2)	1.89	1.89	1.89
Header pipe	CopperTP2 Φ22x0.6	CopperTP2 Φ22x0.6	CopperTP2 Φ22x0.6
Grid pipe	CopperTP2 Φ10x0.5	CopperTP2 Φ10x0.5	CopperTP2 Φ10x0.5
Cover material	3.2Low-iron tempered -glass	3.2Low-iron tempered -glass	3.2Low-iron tempered -glass
Transmittance	≥92%	≥92%	≥92%
Bottom cover	0.50mm Hot galvanized plate	0.50mm Hot galvanized plate	0.50mm Hot galvanized plate
Insulation	Bottom: glass fiber frame: polyester fiber	Bottom: glass fiber frame: polyester fiber	Bottom: glass fiber frame: polyester fiber
Working Pressure	0.8MP	0.8MP	0.8MP
Remark	1.Frame: Aluminum 6063-T5. 2.Size can be customized according to client's requirements. 3.Delivery time: 2 weeks. 4.Warranty: 5 years

BTE OEM SOLAR COLLECTORS FOR HOT WATER:

As innovative pioneers, the machines that we need for the production of our high-quality and market-conform solar products are not easily available “off the shelf”. Therefore, we constantly further develop our highly advanced machines with an “everything is possible” attitude, in order to enforce the diverse technical requirements. Aesthetic design and numerous environmental and innovation awards distinguish our collector families. Each individual collector range has numerous customer-specific designs. Hence, we are able to offer several hundred different types of collector variants and countless mounting solutions.

BTE BENEFITS:

1. The high quality and intelligent product design ensures unbeatable value for money;

2. The robot-controlled production line ensures the highest levels of precision during the production process;

3. Automatic production data acquisition and thereby traceability of each products’ raw material, producing date, producing worker, and delivery time easily and quickly;

4. Three times quality check by 100% full-automatic pressure test in a closed cabin;

5. The resistance and longevity of the welding seam with around 10048 welding spots per absorber is proven through accelerated ageing tests!

Products Advantages

Short delivery time within 2 weeks.

All products tested 3 times before delivery and can offer 5 years warranty.

BTE has CE, Solar KeyMark and ISO9001 certification. Ranked the TOP 3 in the solar thermal world.

We can accept OEM & ODM orders. Solar Collectors have high efficiency and long working life.

Hot-selling product

Discount in limited time product

Related products

Product Compared

Production process

Packing & Delivery

Packing: LCL: Plywood wooden pallet/case FCL: Export carton packing

Company Profile

Dezhou BTE Solar Co.,ltd was founded in 2009,located in sun city-Dezhou, which is an innovative company focused on the field of solar thermal applications and has a number of independently intellectual property rights of core technology.Relying on strong technical strength, the company has independently developed the high intelligent automatic production lines,and production efficiency has reached the international leading level.Based on the idea of industrial 4.0,it has built a global professional production line of flat plate solar collector and solar water heater,the efficiency of the whole production line can achieve on average speed of 55s/pc,reaching the international leading level.

1. Is your company a trading company or factory? We have own factory,Welcome to visit our factory. 2. What is your Delivery Time? LCL order/Sample order:10days. Full container order:14days. 3. Can you do make with my brand ? Yes,OEM&ODM order are both welcome and accept. 4. What is your MOQ? 1 set.

5. What is your Packing? LCL order/Sample order in woden case. Full container order in high quality export carton. 6. What is your FOB Port? We accept FOB Qingdao , Shanghai ,Tianjin etc. 7. What is your Monthly Production Capacity? 24000PCS.
