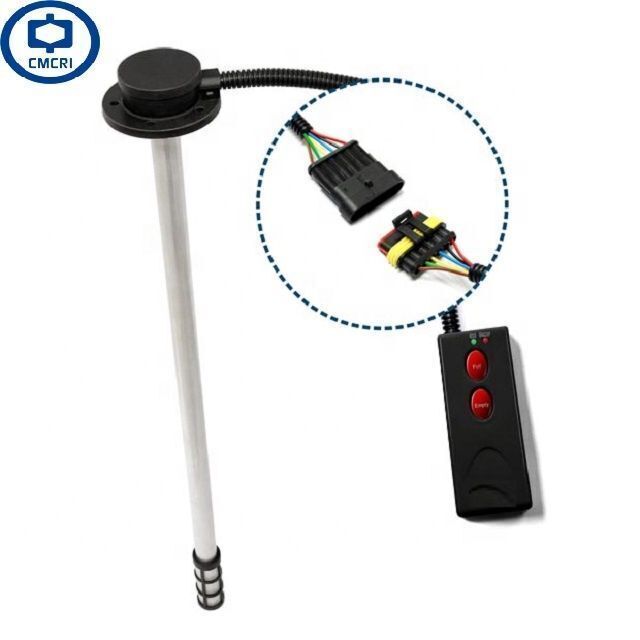

High Accuracy Cuttable GPS fuel level sensor for fleet management Capacitive sensor

Supplier: China Measurement And Control (Xi'an) Research Institute Co., Ltd.
Region: Shaanxi, China
Contact: Ms Sellina Han
Price: $29.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Length range:	200-1500mm or customized;	Payment Terms:	Western Union,T/T,MoneyGram;
Protection rank:	IP65;	Packaging Detail:	Standard Export Carton Or per your requests;
Product name:	cuttable capacitance fuel level sensor;	Model Number:	CL085;
Output signal:	RS232, RS485;	power supply:	DC10V ~ 32V/ 5V;
Place of Origin:	Shaanxi China;	Port:	Chinese Sea port;
Supply voltages:	10 to 32V;	Package Preview:	;
Operating temperatures:	- 40 to 85°C;	Material:	Aluminum Alloy;
Resolution:	1mm;	Brand Name:	CMCRI;
Brand:	CMCRI;	Supply Ability:	1000 Piece/Pieces per Week;

Product Description

Main Specifications:

• Mterial: Plastic and Aluminum Alloy • Length range: 200-1500mm or customized • Assembly: SAE standard 5 holes or customized • Mounting: 5 pieces of M5 screws and 2 mm thick NBR gasket,or recommended 2 mm thick FPM gasket if be used in gas tank. • Supply voltages: 10 to 32V • Rated current for alarm switch: 500mA • Output signal:RS232, RS485 • Resolution: 1mm • Operating temperatures: - 40 to 85°C • Protection rank: IP65

Why choose GPS fuel level sensor?

• Suitable for Vehicle, truck, coach, agrimotor, GPS fleet management, GPS tracking system, generator set, construction machinery and more

• Signal output with high-resolution :1mm • Continuous and steady output signal • Length could be trimmed in the field • The parameters can be conveniently reset and recalibrated with an external calibrator • Fits different tank sizes, minimizing customer inventory level • Used for diesel, gasoline and kerosene level measuring • Compatible with GPS market leading GPS tracker and software to monitor vehicle fuel level at any time
