DC12V Air Ride Suspension Chrome Air Compressor 480C for car truck trailer
-
Supplier: Ningbo Alita Pneumatic Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms Maria Zhou -
Price: $69.00 / 4 - 99 pieces
$59.00 / 100 - 499 pieces
$49.00 / >=500 pieces -
Min. Order: 4 pieces
Product details
| Selling Units: | Single item; | Brand Name: | ALITAIR; |
| Warranty: | 1 Year; | Single package size: | 34X33X12 cm; |
| Place of Origin: | Zhejiang China; | MOQ: | 2PCS; |
| Voltage: | DC12V; | Model: | Alexander 126H; |
| Single gross weight: | 5.3 KG; | OE NO.: | VU4; |
| Compressor type: | Universal Car Ac Compressor; | Packing: | Neutral Packing; |
| Year: | 1976-1991; | Model Number: | Air Compressor 480C; |
| Package Preview: | ; | PAYMENT: | T/T. 30% Deposit.Western Union; |
| Certification: | CE ROHS ISO9001; | Car Model: | Universal; |
| Application: | Cair air ride suspension system; | Car Fitment: | ABG; |
| Packaging Detail: | Carton Box , Pallets; | Product Name: | Air ride compressor; |
| Quality: | High Performance; | Engine: | -; |
| Condition: | New; |
Product Description
ALITAIR High Performance Air Ride Suspension Compressors ,.480C is a truly rated, 200 PSI-rated compressorProduct Details
As one of the hardest working compressors, the 444C features a 100% duty cycle @ 100 PSI. Allowing your system to power air suspension, tire inflation, air tools, and more in addition to powering your horns. While not as fast as some other models, the 444C still boasts impressive performance for its class, providing 1.76 CFM output. The 444C will recharge a 2.5-gallon tank from 165-200 PSI in just over a minute and a half and recharge a 5-gallon tank in just under three minutes.
The 444C comes complete with a standard 1/4″ NPT stainless steel braided leader hose with check valve and insulated wiring for fast installation.
* 1/4" NPT Leader Hose & Check Valve
* 1.76 CMF @ 0 PSI
* 100% Duty Cycle @ 100 PSI
* Max Tank Size: 5-Gallon
* Max Amp Draw: 19 Amps @ 12-Volts
* 165-200 PSI Pressure Switch with 1/8" NPT Threads & 40 Amp 4 Pin Relay
* Compressor Length: 11.25" (285.75 mm)
* Compressor Width: 4" (101.6 mm)
* Compressor Height: 6.75" (171.45 mm)
As one of the hardest working compressors, the 444C features a 100% duty cycle @ 100 PSI. Allowing your system to power air suspension, tire inflation, air tools, and more in addition to powering your horns. While not as fast as some other models, the 444C still boasts impressive performance for its class, providing 1.76 CFM output. The 444C will recharge a 2.5-gallon tank from 165-200 PSI in just over a minute and a half and recharge a 5-gallon tank in just under three minutes.
The 444C comes complete with a standard 1/4″ NPT stainless steel braided leader hose with check valve and insulated wiring for fast installation.
* 1/4" NPT Leader Hose & Check Valve
* 1.76 CMF @ 0 PSI
* 100% Duty Cycle @ 100 PSI
* Max Tank Size: 5-Gallon
* Max Amp Draw: 19 Amps @ 12-Volts
* 165-200 PSI Pressure Switch with 1/8" NPT Threads & 40 Amp 4 Pin Relay
* Compressor Length: 11.25" (285.75 mm)
* Compressor Width: 4" (101.6 mm)
* Compressor Height: 6.75" (171.45 mm)
Item | Air Ride Suspension Chrome Compressor 480C |
Material | Aluminum |
Voltage | DC12V |
Flow | 1.8CFM |
Brand | ALITAIR |
Warranty | 1 Year |
Thread | 1/4"3/8" |
Direction for use
ALITA AIR High Performance Air Ride Suspension Compressors

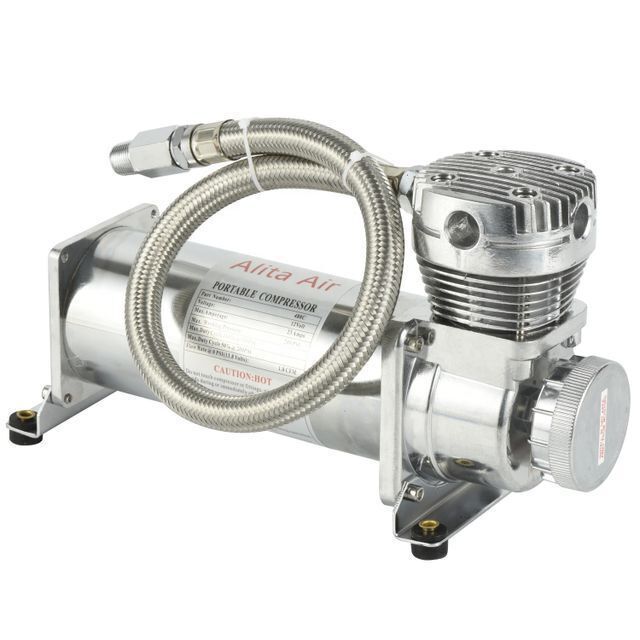

12 & 24 VOLT ,Our compressors and components are leaders in the on-road and off-road markets. our quality-engineered products have become the industry standard in the automotive aftermarket, and can be found across industrial, medical, and agricultural applications.480C is a truly rated, 200 PSI-rated compressor. It features horizontal cooling fins and a trapezoidal head design, a standard 3/8” stainless steel braided leader hose with 3/8” NPT inline check valve and insulated wiring
Description of application effect
使用效果描述
-Industry Leader for 12v Air Systems
-No Maintenance Oil-Less Design Compressors
-Thermal Overload Protection
-High Performance PTFE Rings
-Gearless Direct Drive PMG Motors
-ISO 9001 Certified
200psi Air Compressor (100% Duty @ 100psi)
Use For Air Horns
Use For Load Level Air Springs
Use For Suspension Air Bags
Use For Air Lockers
Use For Tire Inflation
Use For Air Tools
-No Maintenance Oil-Less Design Compressors
-Thermal Overload Protection
-High Performance PTFE Rings
-Gearless Direct Drive PMG Motors
-ISO 9001 Certified
200psi Air Compressor (100% Duty @ 100psi)
Use For Air Horns
Use For Load Level Air Springs
Use For Suspension Air Bags
Use For Air Lockers
Use For Tire Inflation
Use For Air Tools
Related Products
Packing&Shipping
No logo and brand or Alitair Logo and brand Both OK OEM ODM Welcome
Company Introduction
Ningbo Alita Pneumatic company is a factory that manufactures good & high quality Air Compressor , air tank , air suspension solenoid valves VU4 VU2 VU-4 VU-2 and pneumatic component . The company provides the customized products and OEM service. Various new collections and design are coming out each month with the current styles and fabrics. The factory own the proficient skill and updated machine .
Our Services & Strength
1 Year Warranty for all the product
