50l 100l 500l 1000l 5000l industrial continuous stirred tank batch reactor price

Product details
Machinery Test Report:Provided;Local Service Location:None;
Type:Reaction Kettle;Core Components:Motor;
Showroom Location:None;Warranty:1 Year;
Port:QINGDAO;Place of Origin:Shandong China;
Applicable Industries:Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company,Other;Brand Name:SANWEI;
Speed Control:Inverter;Sealing Type:Mechnical Seal;
Power:0.75kw - 75kw;Working pressure:Ordinary Pressure;
Warranty of core components:1 Year;Dimension(L*W*H):depend on the model;
Heating method:Electric Heating, Steam Heating, Circulation oil heating etc.;Condition:New;
Mixing Type:Anchor, Frame, Paddle etc.;Weight:depend on the model;
Vacuum Degree:-0.098 Mpa;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;
Supply Ability:100 Set/Sets per Quarter;Automatic Grade:Automatic;
Payment Terms:L/C,T/T,Western Union,MoneyGram;After-sales Service Provided:Engineers available to service machinery overseas,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;
Material:SS304 ; SS316L ; Carbon steel;Package Preview:;
Packaging Detail:Suitable Delivery And Protect The Machine;Keywords:Stainless Steel Reactor;
Video outgoing-inspection:Provided;Certification:CE ISO;
Marketing Type:Ordinary Product;Capacity:50~20000L;
Product name:Chemical Reactor;Key Selling Points:Long Service Life;
Voltage:Customer Required;
Product Description

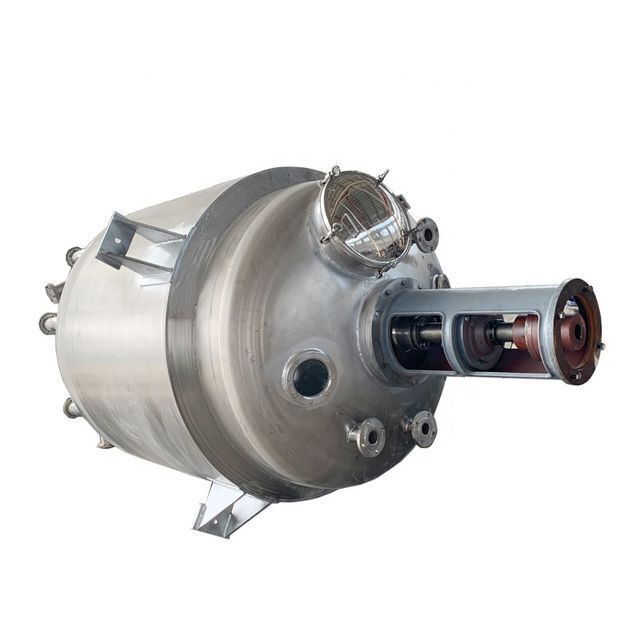

50l 100l 500l 1000l 5000l industrial continuous stirred tank batch reactor price
1. Volume: 50 ~ 30000L
2. Material: SS304 , SS316 ; Carbon steel , Lined PTFE
3. Agitator: anchor , frame , paddle , multifunction etc.
4. Optional: heating or cooling
5. Type: single layer, jacketed type, external coil-pipe type
6. Heating method: electric heating, steam heating, circulation oil heating, infrared heating etc.
7. Warranty: 1 year
8. We support customization.
Model
50L
100L
300L
500L
1000L
2000L
3000L
5000L
Mixing Motor Power
0.75KW
1.1KW
2.2KW
2.2KW
4KW
5.5KW
7.5KW
15KW
Heating Motor Power
8KW
12KW
24KW
36KW
48KW
60KW
75KW
90KW
Inner Plate Thickness
5mm
5mm
5mm
5mm
6mm
6mm
8mm
8mm
Jacket Plate Thickness
5mm
5mm
5mm
5mm
6mm
6mm
8mm
8mm
Material
SS304, SS316L, Carbon Steel; It also can lined PTFE. It can be customized to meet your requirement.
Heating Type
electric heating, steam heating, oil circulation heating etc.
Agitator
anchor, paddle, frame etc.
Sealing Method
packing seal or mechanical seal (vacuum)
Model
We still have more models. (6000l, 8000l, 10000l, 15000l, 20000l, 30000l etc.)
Remarks
We support OEM
More Type
Electric Heating Reactor
Steam Heating Reactor
Limpet Coil Reactor
Multifunctional Reactor

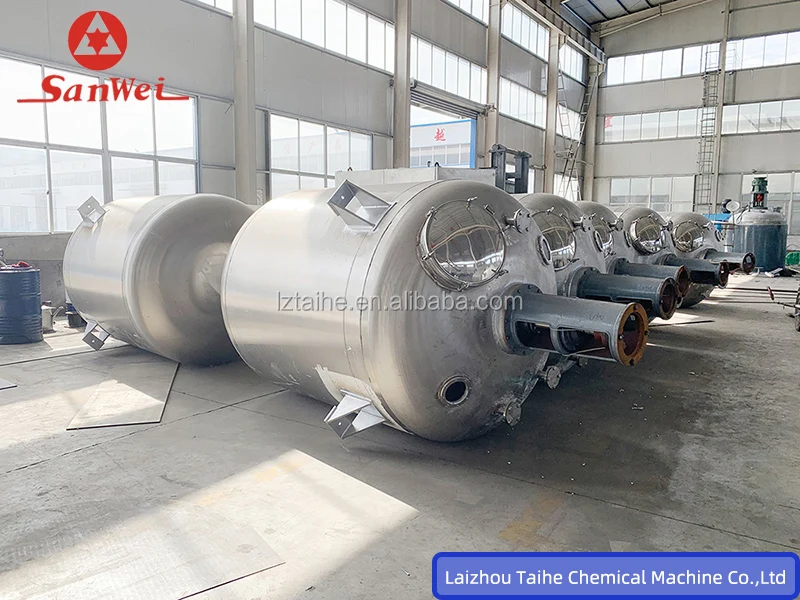

Project Show Case
Details Images
Mirror polished curved head
The upper cover of reactor (customizable)
Anchor agitator
Paddle agitator

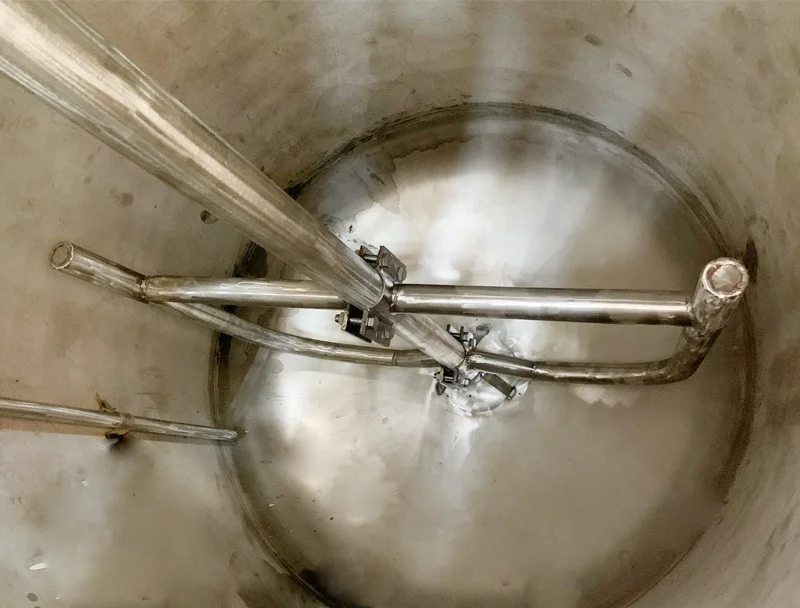

Cooling coil-pipe in inner cylinder
Cooling coil-pipe in inner cylinder
Related Products
Our Company
Company Profile

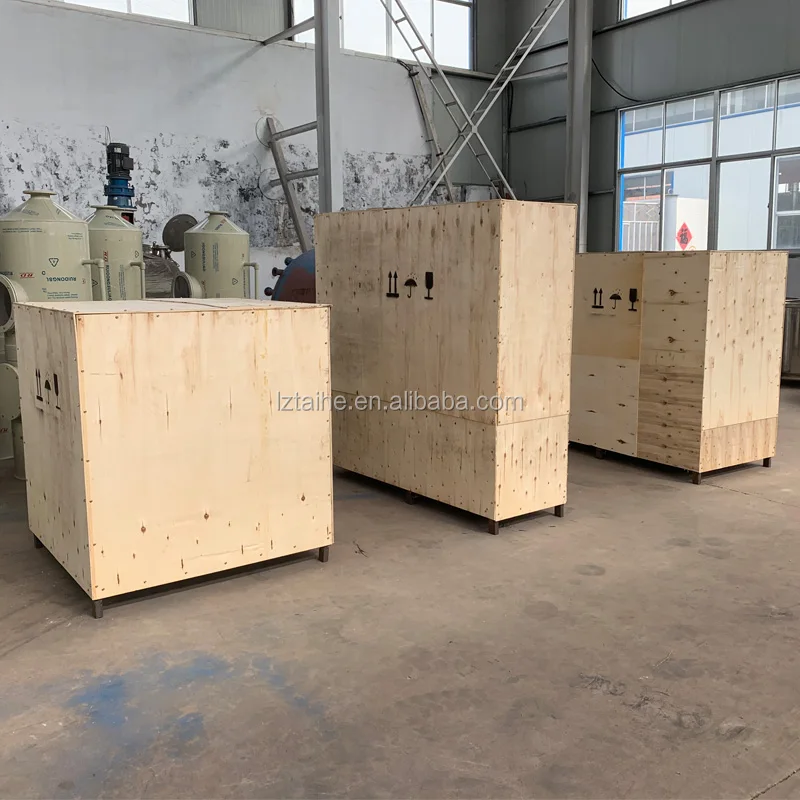

Packing & Delivery
