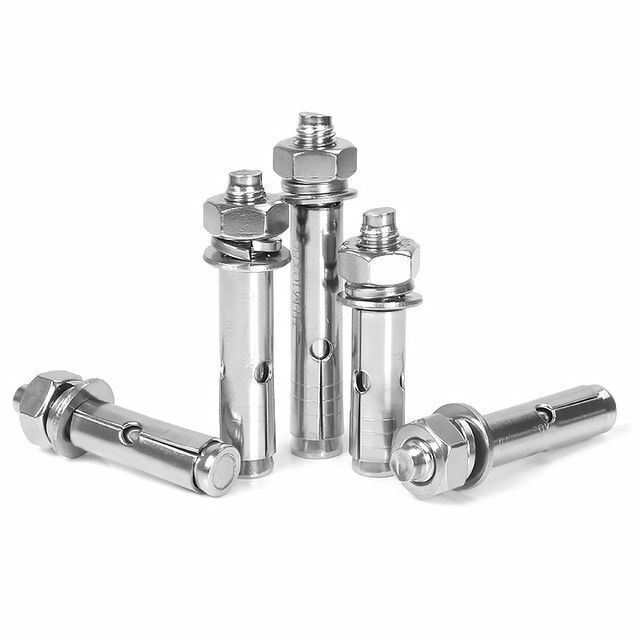

304 Stainless Steel External Hex Hexagon Expansion Screw Sleeve Concrete Anchor Bolt

  • Supplier: Shanghai Tengri Metal Products Co., Ltd.
  • Region: Shanghai, China
  • Contact: Mr Leo Jiang
  • Price: $0.12 / 3000 - 4999 pieces
    $0.10 / 5000 - 19999 pieces
    $0.06 / >=20000 pieces
  • Min. Order: 3000 pieces
Click here to contact
Product details
Standard:DIN,JIS,ANSI,GB,BSW,etc;System of Measurement:INCH,Metric;
Material:Staniless Steel,stainless steel;Thread:UNC;
Place of Origin:Shanghai, China;Finish:Bright(Uncoated);
Sample:Free samples when is in stock;Payment Terms:T/T;
Supply Ability:2000000 Pieces per Month We accept Customize and OEM;Packaging Detail:Polybag and Standard carton. Or pack as the customer's requirement.;
MOQ:1000 Pcs;Capacity:Strong;
Surface treatment:plain;Delivery time:Base on the quantity;
Color:Silver,Silver;Payment Terms:L/C,T/T,Paypal;
Model Number:Bolt anchor;Package:Standard Package (plastic Bag+carton Box);
Port:Shanghai;Product name:Expansion anchor bolt;
Diameter:M6~M24;Brand Name:Tengri;
Products Description
304 Stainless Steel External Hex Hexagon Expansion Screw Sleeve Concrete Anchor Bolt
Note: the price and time of transaction information is for reference only.

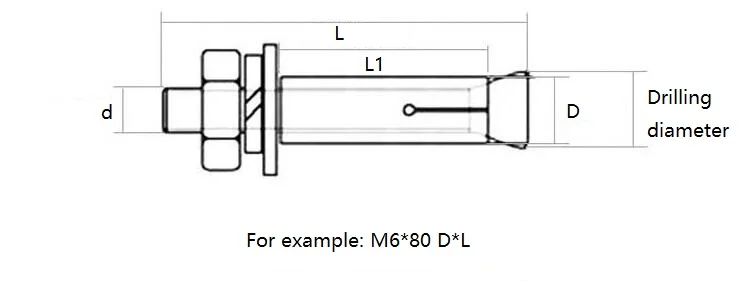

Drawing

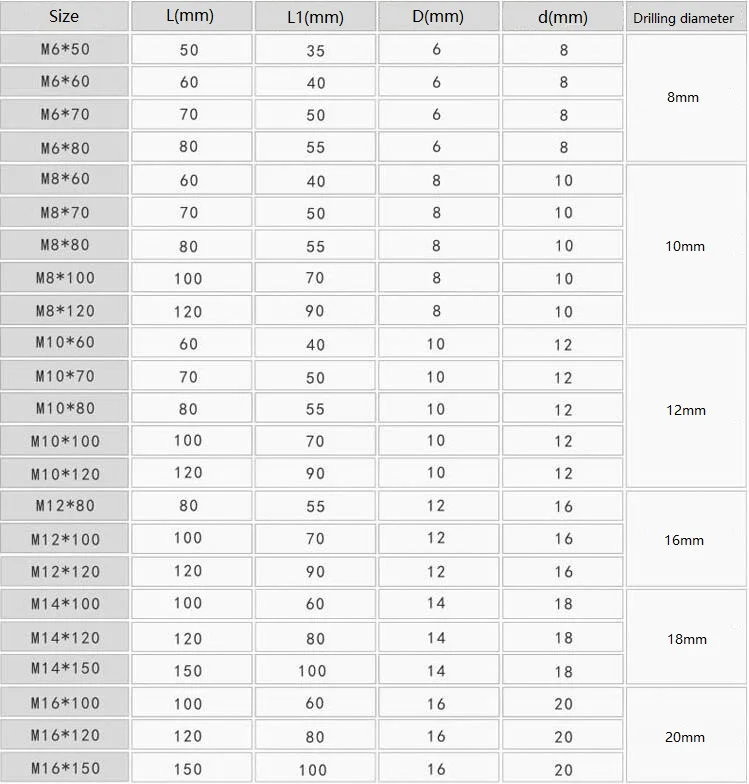

Size
Get quick quote from us
We need more detail as follow. This will allow us to give you an accurate quotation.
Before offer the price. Get the quote simply by completing and submitting the form below:
• Product:__
• Measure: _______(Diameter) x _______(length)
• Order Quantity: _________________pcs
• Surface treatment: _________________
• Material: _________________
• When do you need it by? __________________
• Where to Shipping: _______________ (Country with postal code please)
• Email your drawing ( jpeg, png or pdf, word) with minimum 300 dpi resolution for good clarity.

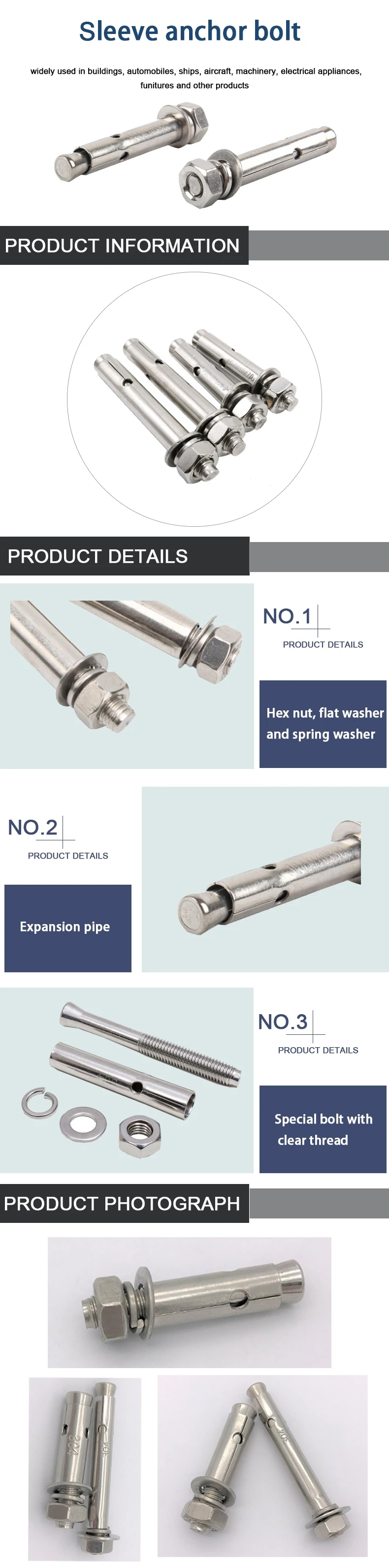

Product show
These stainless steel anchors have good chemical resistance and may be mildly magnetic. Also known as drop-in anchors, they're often used for overhead applications because the anchor's internal plug expands in four directions to hold the anchor firmly inside the hole before inserting a threaded rod or bolt. To install, place the anchor into the hole, insert the required installation tool (sold separately) into the anchor, and drive with a hammer until the thicker portion of the tool makes contact with the anchor. When installed, anchors sit flush with the surface. Pull-out strength and shear strength values are 25% of the ultimate values.
1.Product details:
2.How to use
1. Using a hammer drill and carbide tipped drill bit, drill a hole the same diameter as the anchor diameter, and at least 1/2" to 1” deeper than the expected embedment.
2. Clean out the hole of all debris.
3. Set the nut flush with the top of the sleeve anchor.
4. Insert the sleeve anchor through the fixture into the hole in the base material until the washer and nut is tight against the fixture.
5. Turn the nut until finger tight.
6. Use a wrench to set the anchor by turning the nut three to four full turns
3.How to produce:
Popular Product
              Anchor bolt with eye nut
                Sleeve anchor bolt
          Hex socket round head anchor
Hexagon socket countersunk anchor
                      Hex head anchor
                     Drop in anchor
Company Information
      Shanghai Tengri Metal Products Co., Ltd. is a professional R & D and production of screws, nuts, non-standard fasteners and other metal stampings. Tengri pursuit of excellence in product quality, and has passed ISO9001 and SGS. We have the perfect after-sales service network, and can provide the most convenient service on demand. Annually, Tengri can be completed very large orders, but also get a lot of good partners.
      In 2010 found that, Tengri Group is a leading manufacturer of metal fasteners in China. Major professional production of screws, nuts, bolts, anchor bolts, non-standard parts. Cherish our customers, bring wealth and happiness for them!
      The company is headquartered in Shanghai, China, Tengri retention agent offices throughout the world, each year more than 1,000 orders, products exported to Malaysia, Turkey, Mongolia, Vietnam, Cameroon, France, Germany, the Middle East and Africa, a total of 50 countries and regions.
Our Customers
Our Certification
Our Services
a) Good after-sale service, all questions will be replied within 12 hours.
b) Customized design is available. ODM&OEM are welcomed.
c) We can provide free sample, consumer should pay the freight first.
d) Convenient transportation and fast delivery, all available shipping ways could be applied, by express, air or sea.
e) High quality and most competitive price.
f) Advanced produce and inspecting equipments.
Packaging & Shipping
Package: 25-30KGS/CARTON,36-48CARTONS/PALLET
Produce time: Standard size in stock 5-7 working days, Non-standard: 12-18 working days,
base on the quantity
Shipping way: by Air, Express,like Fedex, UPS, DHL,etc.More than 100KGS: By sea, we have
agent ,it can help you ship the goods, if you have own agent, that also is OK.
FAQ
1.Can I order a small list ?
---Of course, you can.

2.What quote do you offer?
---FOB , CIF and others ways according the your needs.

3.How transport?
---Sea Freight, Air Freight and others Express Delivery ways for you.

4.What is the quality of your products guarantee?
---We have passed ISO9001:2008 Quality Management System Certification, CQM Quality Management System Certification and IQNet
Quality Management System Certification, If the quality doesn't accord the standard, you can exchange the goods for free.

5.Do you have after-sales service?
---Certainly,you can contact us at any time.
Purchase Notice
1.Pls send us an inquiry or leave us a message, there will be a dedicated staff to serve you within 1 hours.

2.You can ask us to take actual photos of the products for you, and free samples would be provided.

3. Welcome to visit our factory to negotiate orders, we will do our best to protect the safety of your business journey.

4.For specially designed fasteners, we can provide you with smallest quantity as your requirement.

5. Special Materials available: Made of special alloys like 2205, 2507, Hastelloy, Inconel, Monel, Titanium, Bronze.

6. Packaging can be customized according to customer requirements
