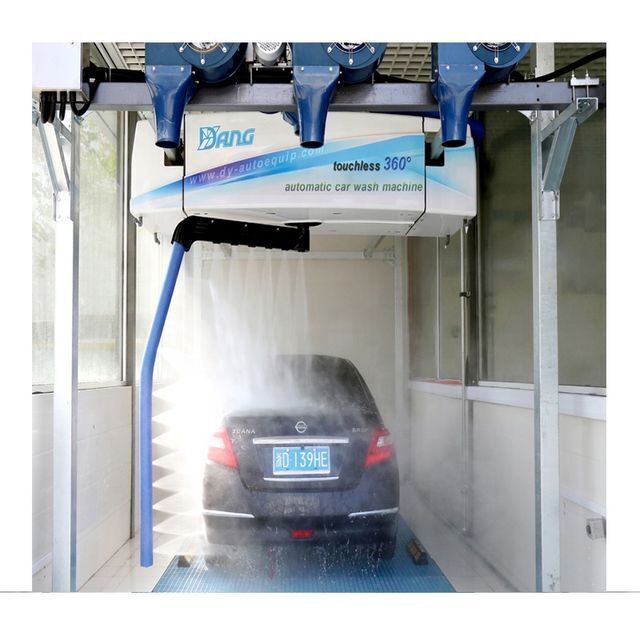

dayang touchless automatic car wash machine malaysia W360 washer equipment price

Product details
Feature:Cleanig Car;Warranty:2 years;
Size:1700x 3660x 3530mm;Washing Speed:4.5-6min/car;
Single gross weight:1650.000 KG;product:dayang automatic car wash machine malaysia W360;
Type:Car Washer;usage:wash vehicle below 2.2m with high pressure water;
Pressure:0.5-0.8MPa;Material:Hot-dip Galvanized Frame;
Place of Origin:Jiangsu, China;Single package size:380X1260X125 cm;
Model Number:DY-W360;color:grey or customized;
Voltage:220V/380V/415V;Weight:1600KG;
Brand Name:Dayang;Water Consumption:80---100L/Vehicle;
Packaging Detail:6 packages, 8.7CBM total, 1650KG total;Power:16KW;
Selling Units:Single item;



1.    Smart 360 rotate arm, Flush car body 360° with high pressure water.

2.   Complete 360° rotating within 50 seconds, up to 80bar high pressure water can easiy remove the dirt.



3.    Spray shampoo washing chemicals and soft wax, forming a multi-layered

protective film, with superior protection of car paint.



4.    4sets 12kw air dryers can fast drying the vehicle up to 90%. (optional)



5.    W360 Car wash equipment adopts German high pressure piston pump.



6.    W360 Car wash equipment adopts French Schneider Electricals, German Siemens PLC, German P+F ultrasonic sensor.



7.    W360 Car wash equipment adopts Aluminum waterproof motor with variable frequency drive.



8.     Hot-dip galvanized mounting frames, 7 inch color touch screen, 304 stainless steel rotate arm.

Specifications of automatic car wash touch free

Main machine size

2900mm*1000mm*660mm

Rail length

6000mm

Min Mounting Dimensions ( L*W*H )

7000mm*3300mm*3300mm

Max car wash size ( L*W*H )

5500mm*2600mm*2000mm

Power Requirement

380V/16Kw, 50Hz/60Hz

Air switch

80A air switch

Air fan motor power (optional)

4sets/12Kw (optional)

Speed

 50 seconds

Shampoo consumption

50~100ML/Car

Wax consumption

20~40ML/Car

Water consumption

Fast wash 120L/car, Super wash 220L/car

Electricity consumption

Fast wash 0.5 KW·H/car, Super wash 1 KW·H/car







Other type of automatic car wash machine DY-W300, if you are interested, please click





Other type of touchless car wash machine tunnel DY-W200, if you are interested, please click

Other type of automatic car wash machine tunnel DY-W900, if you are interested, please click







FAQ

1. What's power supply required for running car washing machine ?


Automaticcar wash machines require 3 phase industry power supply, in China the standard is 380V/50Hz, if customer require different voltage or frequency, we have to customize motors from Siti factory.


2. How to make installation and after sale service?
If there’s an exclusive distributor available in your region, you need to buy from distributor and distributor will support your installation, training and after sale service.
If a distributor can’t be found in your region, we will send one technician to support you on installation and training, but the travelingexpense should be on customer’s account, this will include visa cost, air tickets cost, hotel with restaurant cost, and customer needto pay for technician salary USD100/day.


3. How to become a distributor ?

* We don't have special condition for a conventional distributor without exclusive right.
* If you want to apply for exclusive dealership in your country or region, the first step you need to purchase a demo machine to show customers there, and we need to make an agreement with a yearly MOQ.


4. What's the warranty of car washing machine ?

1years extended warranty for complete machine, all spare parts included, within warranty period, if any parts break down, we will compensate new parts at free charge, but warranty doesn’t include courier expense.
