Condition: | New; | Model: | JK3.0T,JK-3.5T(Standard version),JK-3.5T(High version),JK-4.0T,JK-5.0T; |
After-sales Service Provided: | Field installation, commissioning and training; | Package Preview: | ; |
Brand: | SDJK; | Single package size: | 44X19X29 cm; |
Marketing Type: | New Product 2020; | Video outgoing-inspection: | Provided; |
Feature: | High Efficiency,Low Consumption,Hydraulic Systems,Safety Convenience; | Warranty of core components: | 1 Year; |
Weight: | 4000kg-5500kg; | Fork Length: | 1220mm; |
Power type: | Diesel Forklift; | Warranty: | 1 Year; |
Applicable Industries: | Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining; | Tire type: | Non-slip off-road tire; |
Loading Capacity: | 3000kg-5000kg; | Selling Units: | Single item; |
Machinery Test Report: | Provided; | Showroom Location: | None; |
Certification: | ISO, CE; | Local Service Location: | None; |
Engine: | Customized; | Single gross weight: | 68.000 KG; |
Color: | Customer Demanded; | Product Name: | Off Road Forklift; |
Place of Origin: | Shandong, China; | Min. Lifting Height: | 3000; |
Brand Name: | SDJK; | Packaging Detail: | Standerd Seaworth Package; |
After Warranty Service: | No service; | Core Components: | Pressure vessel,Motor,Bearing,Gear,Pump,Gearbox,Engine; |
Overall Dimensions: | 4200*1800*2700mm, 4400*1850*2800, 4400*1900*2900mm; | Power Souce: | Diesel Engine; |

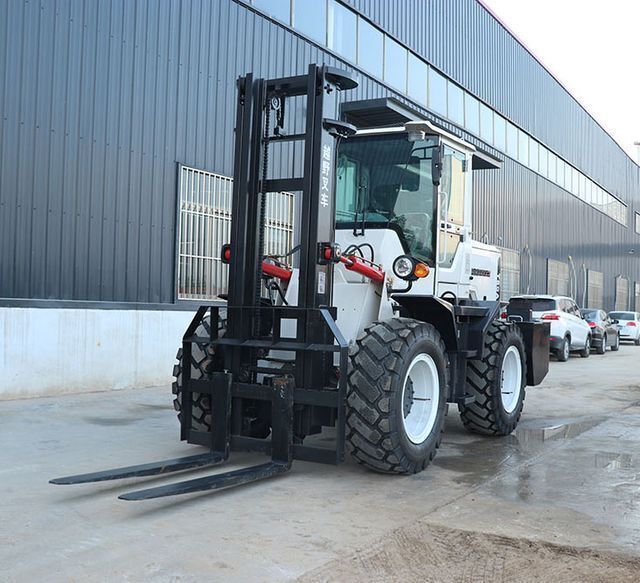

Product Name | Off-Road Forklift | ||||||||
Model | JK-3.0T | JK-3.5T (Standard version) | JK-3.5T (High version) | JK-4.0T | JK-5.0T | ||||
Size | 4200*1800*2700mm | 4200*1800*2700mm | 4200*1800*2700mm | 4400*1850*2800mm | 4400*1900*2900mm | ||||
Curb Weight | 4000kg | 4200kg | 4200kg | 5000kg | 5500kg | ||||
Fork Length | 1220mm | 1220mm | 1220mm | 1520mm | 1520mm | ||||
Climbing Angle | ≤38° | ||||||||
Rated Lifting Force | 3000kg | 3500kg | 3500kg | 4000kg | 5000kg | ||||
Lifting Height | 3000-6000mm | ||||||||
Turning Radius | 3500mm | 3500mm | 3500mm | 4500mm | 4500mm | ||||
Door Frame Width | 0.7m | ||||||||
Door frame front ground clearance | 250-350mm | ||||||||
Wheelbase center ground clearance | 300mm | 300mm | 300mm | 350mm | 350mm | ||||
Frame | Hinged thickness 3mm | ||||||||
Axle | Small wheel side weight cast steel bridge | Small wheel side weight cast steel bridge | Small wheel side weight cast steel bridge | Middle wheel steel bridge | Large wheel steel bridge | ||||
Tire | Large 20.5 / 70-16 tires | Large 20.5 / 70-16 tires | Large 20.5 / 70-16 tires | Large 20.5 / 70-16 tires | 16/70-20 tires | ||||
Drive Mode | Four-wheel drive | ||||||||
Engine Model | HuaDong 4DBY4(490) | Yunnei YN27(490) | Yunnei YN27GBZ (490 supercharger) | HuaDong 4DHZY4 (4102 supercharger) | Yunnei YN38GBZ (4102 supercharger) | ||||
Engine Power | 40 KW | 42 KW | 58 KW | 76 KW | 76 KW | ||||
Gearbox | 265 double high and low speed Large pump torque converter Hydraulic torque converter | 265 double high and low speed Large pump torque converter Hydraulic torque converter | 265 double high and low speed Large pump torque converter Hydraulic torque converter | 280 double high and low speed torque converter | 280 double high and low speed torque converter | ||||
Fuel Tank Volume | 50 L | 50 L | 50 L | 60 L | 60 L | ||||
Power Battery Voltage | 24 V | ||||||||
Payment Iterm | T/T, LC, O/A, DP | ||||||||
Warranty Period | 1 year free warranty | ||||||||
Delivery Time | Within 7 Days |
