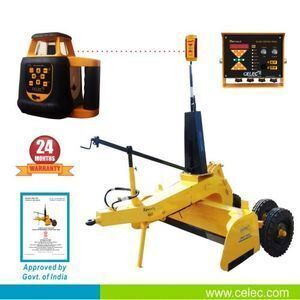

Celec Laser Land Leveler Pro-5000

Supplier: CELEC ENTERPRISES
Region: Punjab, India
Contact: Mr. Neeraj Chawla
Price: $2000.00 / >=5 sets
Min. Order: 5 sets

Click here to contact

Product details

Type:	Agricultural Equipment;	After-sales Service Provided:	Overseas third-party support available;
Port:	Ludhiana;	Manual Grade:	Upto 10%;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal;	Condition:	New;
Weight:	2.5 kg. (5.5 lbs);	Supply Ability:	100 Set/Sets per Week;
Packaging Detail:	Export worthy packing.;	Brand Name:	Celec;
Battery Life:	72 Hours;	Laser Diode (type):	4.5 mW 635 nm (Visible);
Self Leveling Accuracy:	±1 mm @ 30 meters;	Place of Origin:	Punjab India;
Use:	Agriculture;	Dimensions (HWD):	197 x 248 x 175 mm;
Rotating Speeds:	600 RPM;	Certification:	ISO, CE, UL Listed;
Operating Range:	1500 m (±750 m Diameter);	Battery Type:	12 V External;

Work Confidently with the Pro-5000 from Celec Enterprises Self Leveling, Long Range, Highly Accurate with Windy function and the Innovative Cross-Axis Compensation Feature.

Package Includes: Rotary Laser Trasnmitter, Laser Receiver, Control Box, Remote, Battery Charger, Manual Grade options

Features:
Water proof dust proof temperature proof to work all weather.
Housing made from LM-6 aluminium, rubber and high impact plastic.
Over voltage and DC polasty protection.
Low voltage safe working.
One touch self calibration infield.
High power lase beam
Leveling accuracy 5 cm at 100 meter
Manual grade
External battery tor 3 days backup.

Advantages of laser land leveling over traditional land leveling:
Precise level and smoother soil surface, easy land preparation
Reduction in time and water required to irrigate the field
Uniform distribution of water in the field, less water consumption
Uniform moisture environment for crops, less weed problems
Good germination and growth of crop, uniformity in crop maturity
Reduce seed rate, fertilizer, chemicals, and fuel requirements
Improve field traffic ability for the subsequent field operations

Benefits of precise land leveling:
Saves irrigation water up to 35%
Reduced weed in agriculture field
Increase in farming area up to 3.5%
Increase in productivity up to 50%
Reduced farm operating time by 10%
Assist tap soil management
Saves fuel/electricity used in irrigation
Saves labor cost

SPECIFICATIONS


Operating Range*	1500 m (±750 meter)
Self – Leveling Accuracy	5 cm @ 100 meter
Rotating Speeds	600 RPM
Laser Diode (type)	4.5 mW 635nm (Visible)
Manual Grade	Upto 10%
Dimensions (HWD)	197 x 248 x 175 mm
Weight	2.5 kg. (5.5 lbs)
Battery Type	12V External
Battery Life***	72 Hours
Operating Temperature	0 to ± 50° C
Storage Temperature	0 to ± 70° C
Dust / Water Resistance	IP65


Voltage Range	12V DC
System Accuracy	±2 mm (Standard Deviation)
Hydraulic O/P Settings	Directional / Propotional Valves
Dust / Water Resistance	IP65
Power On / Off Switch
Switch for Automatic and Manual Control Mode Selection
LED Display to show Up-Grade, On-Grade and Below-Grade position of the Laser receiver with respect to the Laser Beam
Manually Up and Down Hydraulic Switch


Voltage Range	12V DC
Current Consumption	500 mA
Laser Requirement	All Rotating Lasers (HeNe or IR)
Dust / Water Resistance	IP65
Pulse Display	10 Pulses per second
Protection	Reverse Polarity
Accuracy Dead Band	Upto 10% 5 Users Selectable Accuracy Dead Bands
LED Display to show Up-Grade, On-Grade and Below-Grade position of the Laser receiver with respect to the Laser Beam
