Bamboo One-time-use Chopstick Machine/full automatic chopsticks machine/Disposable Chopstick Machine

Click here to contact
Product details
Function:Chopsticks Making Line Machine;Product:Complete bamboo Chopsticks Machine;
Warranty:One Year;Applicable Industries:Hotels,Garment Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop;
Package Preview:;Marketing Type:New Product 2020;
Package:Wooden Case;Dimension(L*W*H):120*50*105;
Power:1.5kw;Place of Origin:henan;
Condition:New;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;
Port:Qingdao/Shanghai/Dalian/Tianjin/Shenzhen/Guangzhou/Xiamen;Kw:Twins Bamboo Chopstick Machine;
Local Service Location:None;Type:Bamboo Chopsticks Production Line;
Payment Terms:L/C,T/T,Western Union;Showroom Location:None;
Video outgoing-inspection:Provided;Automatic Grade:Semi-automatic;
Production Capacity:3800~4500 pairs;Weight:58;
Logo:Custom;MOQ:1 Set;
Efficiency:1.5kw;Core Components:Motor;
Application:Bamboo Sticks;Packaging Detail:One machine in one wooden case, it is standard export wooden case. Or Whole container if it is big model.;
Warranty of core components:1 Year;Voltage:380v;
Raw Material:Bamboo;Supply Ability:200 Sets per Month;
Brand Name:Lerford;Machinery Test Report:Provided;
Product Overview
Bamboo Chopstick Making Machine
Size: Φ4.5～Φ5.0，L190mm
Capacity: 3800～4500 pairs.
Quantity of Machines : 8sets
The technological process of the above products:

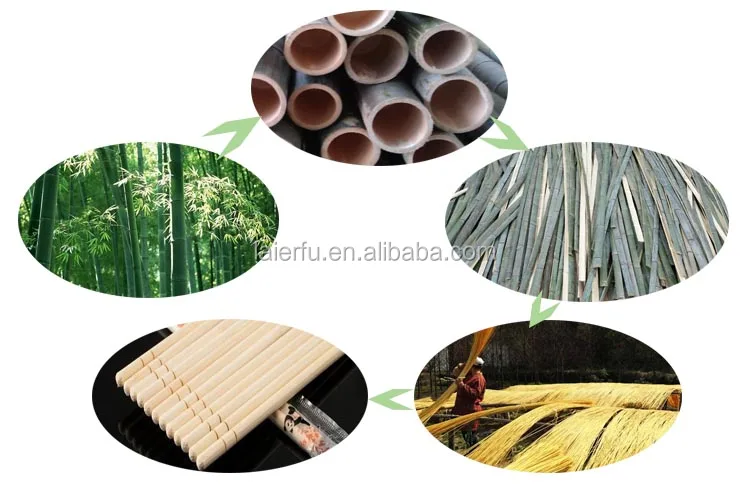

1) Original bamboo -- taking material sawing -- splitting bamboo strips -- making knotted pieces of fixed width into filament --bleaching -- drying -- cutting -- polishing -- picking up the broken pieces -- sharpening -- picking up the broken pieces --
packing -- storage (factory).

2) Normally, for every 100 kg of fresh (wet) bamboo, round chopsticks of Φ4.5～Φ5.0 with a length of 190mm can be produced about 3800～4500 pair

3) Mechanical instructions, bamboo bleaching, mildew-proof, moth-proof method and random accessories (including wearing parts,pecial accessories and special tools), etc. are listed separately and shall not be priced.
FEATURES AT A GLANCE
The above 8 units produced 100,000 pairs in 8 hours. Five to seven mechanical workers are required, regardless of gender. The
power is 380V industrial power, and the actual power consumption for normal production is about 12 degrees per hour.

Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Name
Model
Power kw
Weight KG
Size cm
1
Sawing machine
ZJ-791
1.5
58
120*50*105
2
Bamboo dissection machine
ZJ-388
4
650
310*70*125
3
Flakers
ZJ-275
2.2
1.1
310
130*65*103
4
Bmaboo filament shaping machine
ZJ-144
3.0×2
1.1
400
100*65*108
5
Filament set-size machine
ZJ-741
0.75
80
140*66*88
6
Polishing machine
TJ-542
1.5
270
215*70*85
7
Bamboo round chopsticks sharpening engraving machine
ZJ-646
1.1x0.37×2
280
140*80*100
8
Multi-sharpen machine
TJ-803
0.37
65
75*50*95
Total
23.51
2258
10.66m3

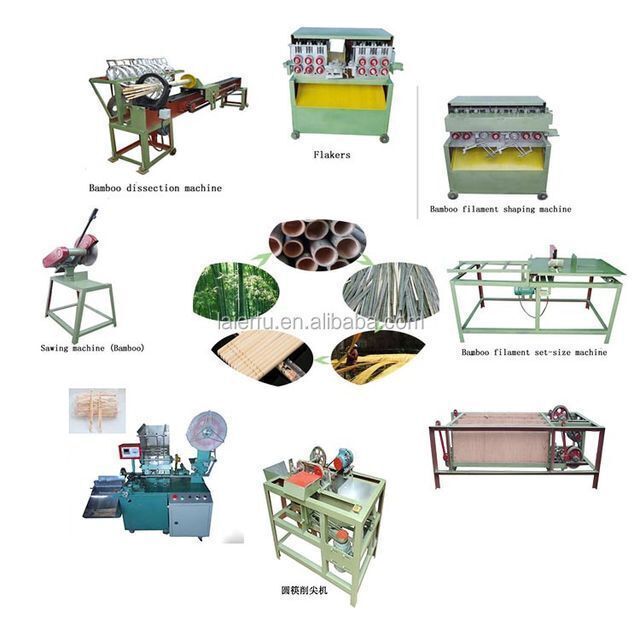

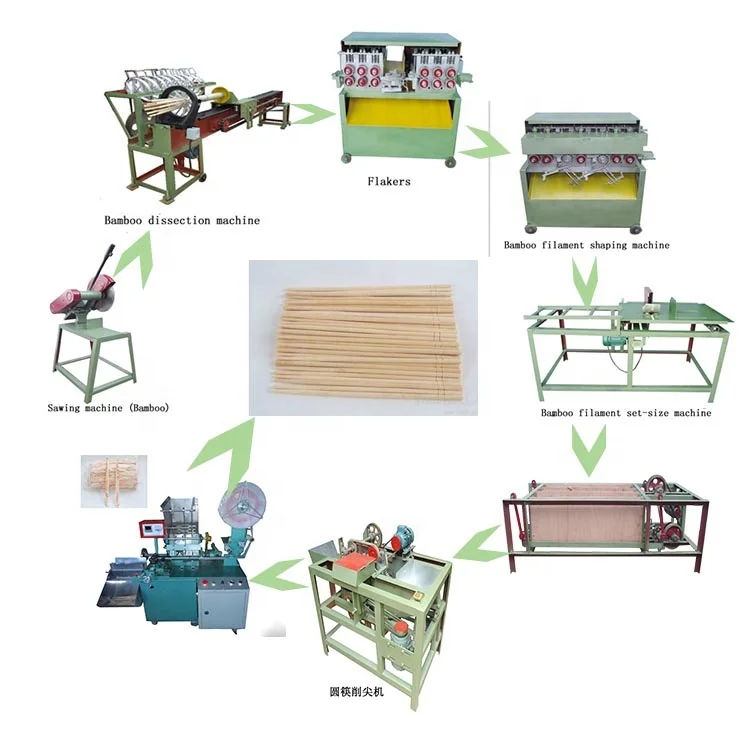

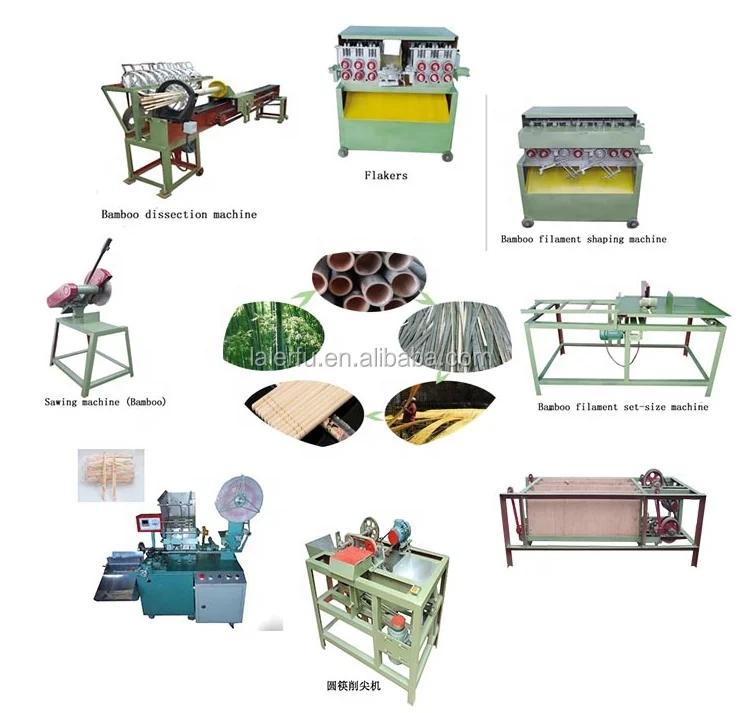

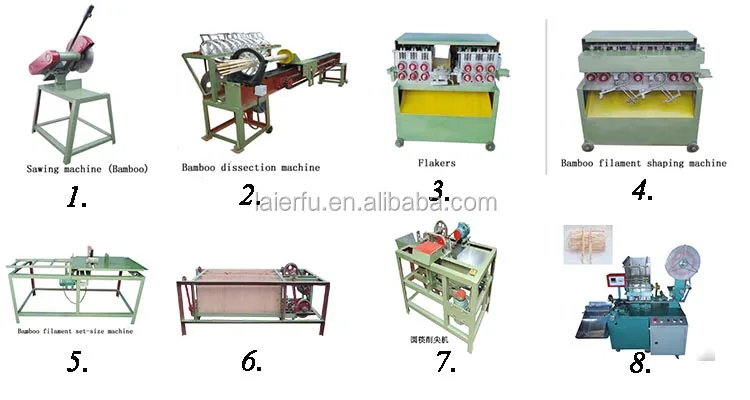

Bamboo Chopsticks Machines:
1. Fresh bamboo sawing machine: Cut the fresh bamboo into certain size.
2. Bamboo splitting machine/dissection machine: Split the bamboo into chips.
3. Bamboo flaker: Fixing the width of bamboo pieces and flattening the bamboo pieces.
4. Bamboo filament machine
5. Bamboo filament set-size machine: Cut the pieces into certain sticks.
6. Bamboo polishing machine: Polish the chopstick and making the surface smooth.
7. Bamboo Chopstick sharpening
8.Bamboo multi-functional sharpener: sharpen the blades or knifes.
How to finished the final chopsticks ?
Requirements of Bamboo Material
Bamboo should be fresh bamboo or wet bamboo that has been grown for more than three years.
The completely dry bamboo will speed up the wear of the blade and is not good for the machine. The size of the bamboo: between 5 to 17 cm in diameter.
Wood Packing
To confirm machines quality,will packing with the wood case. Don’t worry pls,you will receive the good machines.
Make good toothpick,making more profits for you future !
Company Introduction

Established in 2012, Henan Lerford Machinery Equipment Co.,ltd is one professional manufacturer integrating R&D,manufacturing and trading,we are committed to vegetable processing machines,fruit processing machines,snack processing machines,nuts processing machines,packing machines for years,We have 80 staff members and 16 technicians of research team. So we have more competitive strength,advanced processing technology and scientific management.And we are located in Zhengzhou city,Henan province,which is the
business and economy center with easy transportation.Our international airport name is Zhengzhou Xinzheng International Airport.

Taking "Sincerity makes trust, Quality wins market"as our business philosophy, Our company always put quality in the first place
and meet our customers' needs by ensuring high quality products and the most professional services, Therefore, our products have been exported to almost the whole world and enjoyed a good reputation from our customer for years. We welcome new and old
customers from all walks of life to contact us for future business relationships and achieving mutual success. Welcome everyone!
FAQ
1. who are we?
We are based in Henan, China, start from 2020,sell to Africa(20.00%),North America(10.00%),South America(10.00%),Southeast Asia(10.00%),Mid East(10.00%),Eastern Asia(10.00%),Central America(10.00%),Northern Europe(10.00%),South Asia(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

3.what can you buy from us?
vegetable processing machine,fruit processing machine,nut processing machine,snack making machine,packing machine

4. why should you buy from us not from other suppliers?
Taking "Sincerity makes trust, Quality wins market"as our business philosophy, Our company always put quality in the first place and meet our customers' needs by ensuring high quality products and the most professional services.

Welcome your inquiry sincerely !
