1.5/1.8/2/2.5m Athletic Sports playground surface Running Track Paver Automatic Rubber Granules plastic road Epdm Paving Machine

Supplier: Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.
Region: Shandong, China
Contact: Mr Steven Zhang
Price: $4750.00 / 1 - 9 sets
$4100.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Shandong, China;	dimension:	30001800720mm;
Video outgoing-inspection:	Provided;	Dimension(LWH):	30001800720mm;
Core Components:	Engine,Bearing,Gear;	Temperature adjustment:	90-120 centigrade;
Marketing Type:	Ordinary Product;	After Warranty Service:	Video technical support;
Paving Width:	2500mm;	Machine Weight:	850kgs;
Port:	Qingdao/Shanghai/Ningbo;	Condition:	New;
Hydraulic Pump Brand:	KYB;	Paving Capability:	500 sq.m./h;
After-sales Service Provided:	Video technical support;	UNIQUE SELLING POINT:	Short turning radius;
Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Retail,Construction works ,Energy & Mining,Other;	Supply Ability:	20000 Sets per Month New design TPJ-1.5 paving machine for running track constru;
Weight:	850 kg;	Machinery Test Report:	Provided;
Moving Speed:	0.8-6m/min;	Local Service Location:	None;
Power:	8 kw,8kw;	Production Capacity:	0.8-6m/min;
Payment Terms:	L/C,Western Union,T/T,alibaba trading assurance;	Brand Name:	China Coal;
Hydraulic Valve Brand:	Huade;	Showroom Location:	None;
Engine Brand:	CAMC;	Packaging Detail:	in the wooden case ,on the pallets ,New design TPJ-1.5 paving machine for running track construction/sports surface running road rubber paver machine;
Warranty:	1 Year;	Warranty of core components:	1 Year;
Max. Paving Thickness:	2mm;

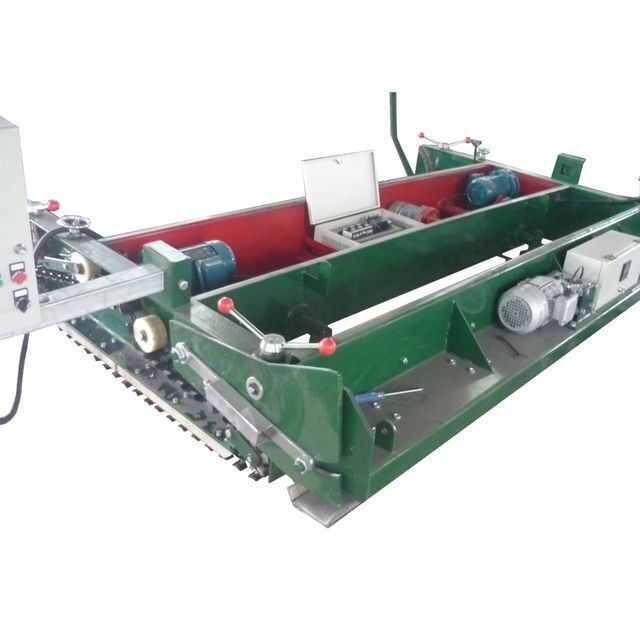

1.5/1.8/2/2.5m Rubber Road Paving Machine

Products Description

The Rubber Road paver machine with high technology made in our company is used for paving plastic runway, The rubber road paver machine adopted the advance technology of stepless speed regulating with changeable frequency and hydraulic actuator to improve the degree of automation.

Its performance satisfied the requirement of sports playground, and achieve high quality technical indexes. It is high efficiency, low consumption, high quality and easy to operate, the long-term use authentication, deeply welcomed by domestic and foreign customers.

Click here to make an inquiry

Hot Sale Model

TPJ-1.5 Rubber Paver Machine

TPJ-1.8Rubber Paver Machine

TPJ-2.0 Rubber Paver Machine

TPJ-2.5 Rubber Paver Machine

Manufacturing Technique

Click here to make an inquiry

1. Rack: It adopts welded steel structure (steel steel) and steel plate, which is resistant to impact and has a twisted experiment and stable structure. 2, the drive device: the use of sprocket track drive, motor frequency conversion stepless speed control, smooth movement, easy to advance and retreat, straight line easy to master. If a curved laying is required, the turning operation is convenient and is not limited by the size of the arc. The bases of different bottoms can walk. 3, the whole slab: paving the slab is an important part of the quality of paving. The paving plate of the machine has the functions of adjusting the height, controlling the angle, heating and heating, and positive compaction. Easy to use, ensuring a smooth laying site. 4. Electric control box: This machine adopts centralized electric control device. The operator can press the button or knob of different functions to make the machine produce the required functions and actions. 5. Scraper: It is mainly used to control the feeding width and thickness, and the height is adjusted by the screw to ensure accurate feeding. 7.Landing mechanism: Hydraulic transmission is adopted to realize the lifting and lowering of the rubber wheel landing gear. When the paving work is completed, the rubber wheel is grounded and the machine is propped up for non-work walking or transportation. Non-work walking, that is, manual steering lever, push-pull mechanical walking.

Product Paramenters

Name	1.5/1.8/2/2.5m Rubber Road Paving Machine
Model	TPJ-2.5	TPJ-2.0	TPJ-1.8	TPJ-1.5
Actual Width	2800mm	2300mm	2100mm	1800mm
Paving Width	2500mm	2000mm	1800mm	1500mm
Moving Speed	0.8-6m/min	0.8-6m/min	0.8-6m/min	0.8-6m/min
Paving Capability	500 sq.m./h	400 sq.m./h	300 sq.m./h	300 sq.m./h
Power	8kw	8kw	8kw	8kw
Temperature adjustment for electric heating board	90-120 centigrade	90-120 centigrade	90-120 centigrade	90-120 centigrade
Machine Weight	850kg	700kg	700kg	600kg
Dimension	30001800720mm	25001700720mm	19001800720mm	20001700720mm
Packing Style	Wooden case	Wooden case	Wooden case	Wooden case
