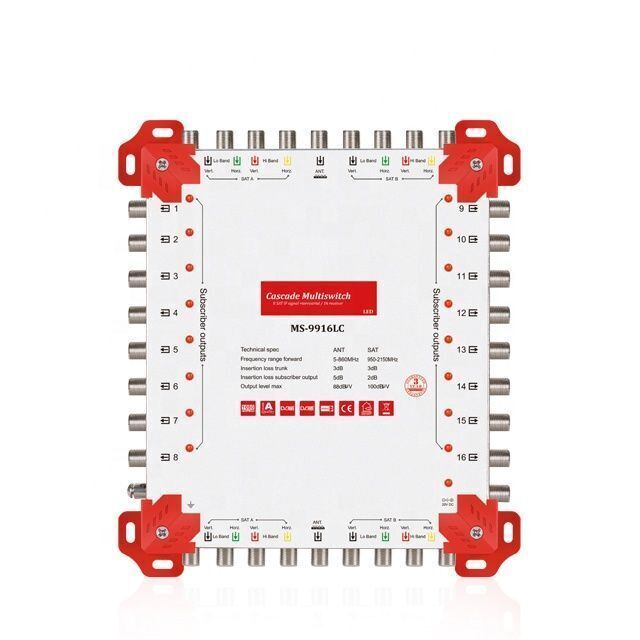

Multiswitch 9 in 16 out MS-9916LC satellite cascade multiswitch

Supplier: Zhuhai Gecen Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Catherine Xia
Price: $30.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Negotiation;	Color:	Selectable;
Brand Name:	Gecen;	Material:	tinplate;
Private Mold:	Yes;	Feature:	Low Insertion Loss;
Certificate:	CE/ISO9000;	Frequency Range SAT:	950-2150(MHz);
Model Number:	MS-9916LC;	Packing:	Color Box;
Return Loss Outputs:	8(dB);	Supply Ability:	500000 Pieces per Month;
Type:	satellite cascade multiswitch;	Packaging Detail:	[OEM giftbox/Gift box/White box];
Place of Origin:	Guangdong, China;	INPUT:	2 SAT&1 ANT;
Isolation In-In SAT/ANT:	25(dB);	Port:	zhuhai/shaungzhou/Shenzhen,China;

Product Description

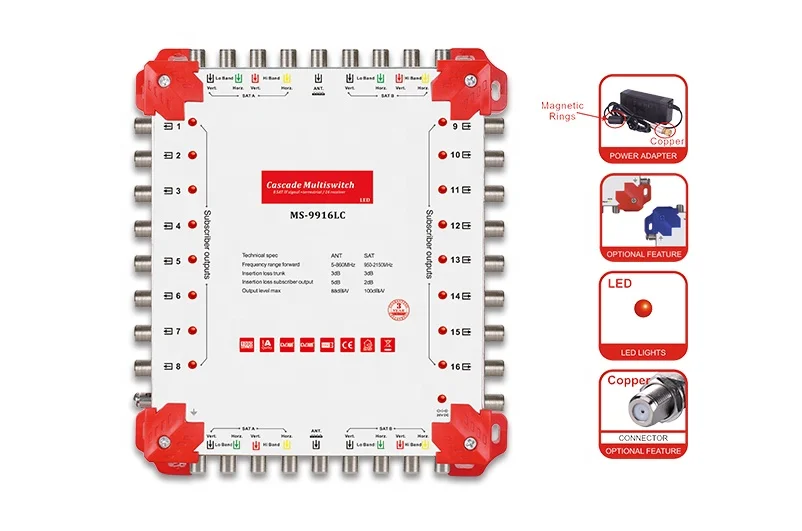

Cascadable Multiswitch of 9 in 16

1.C means Cascade type, E means End type
2.Power supplied by satellite receiver and external power supply
3.8 SAT inputs + 1 ANT input, 16 output. Cascade type
4.AT IF selected by 13/18V, 0-22KHz and DiSEqC 1.0/2.0 commands

Item	Specification	Item	Specification
Frequency Range ANT	5-860(MHz)	Return Loss SAT Inputs	10(dB)
Frequency Range SAT	950-2150(MHz)	Return Loss ANT Input	12(dB)
Insertion Loss ANT	5(dB)	Return Loss Outputs	8(dB)
Insertion Loss SAT	4(dB)	Output Level ANT	88(dBuV)
Insertion Loss Trunk(for cascadable type)	0(dB)	Output Level SAT	100(dBuV)
Isolation In-In SAT	25(dB)	Normal Working Voltage	12-20(V)
Isolation In-In SAT/ANT	25(dB)	DC Power Consumption	200(mA)
Isolation Between Outputs	25(dB)	Supply Voltage(VDC)	20V(±1)2500mA
Switching Isolation SAT Inputs	28(dB)	Temperature Range	-20℃-60℃
Cross Isolation(for cascadable type)	25(dB)	Impedance(all ports)	75(Ω)
