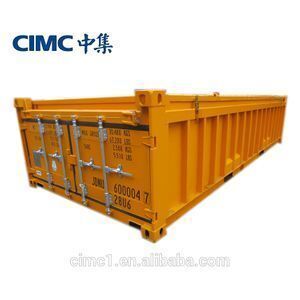

20ft Half Height Open Top Container

Supplier: Qingdao CIMC Container Manufacture Co., Ltd.
Region: Shandong, China
Contact: Mr shengfeng li
Price: $3000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Port:	Qingdao;	top:	hard open top;
Internal Dimensions(l x W x H)(mm):	5898mm(L)2352mm(W)1150mm(H);;	Brand Name:	CIMC-E-4;
Certification:	ISO9001;	Length (feet):	20';
Capacity:	15M3;	Color:	Red, Blue & White etc;
TYPE:	20ft half height open top;	External Dimensions(l x W x H)(mm):	6058mm(L)2438mm(W)1289mm(H);;
Delivery Detail:	20-35 days;	Payment Terms:	T/T;
Type:	Open Top Container;	Place of Origin:	Shandong China (Mainland);
Logo:	By our client requirement.;	Packaging Detail:	None;
Supply Ability:	50 Unit/Units per Day;	Model Number:	20OTHF;

20ft Half Height open top container

1.Quick details

Place of origin:Shandong,China	Brand name:CIMC	Location:near Qingdao Port
Type:ISO containers and special containers	CSC:BV,GL,ABS,LR,CCS	ISO standard
Annual production capacity:150,000TEU	Stacking ability:35,000TEU	Color:red,white,blue or as you require
Main material:Corten A	Floor material:wooden,bamboo or as you require	Logo:as required
Payment term:T/T or be negotiated	Price term:EXW,FOB or be negotiated	Delivery time:according to the order

2.Packing and delivery

Packing	Without package
Delivery	Usually 15-25 days,specific delivery date according to our production schedule

3.Specifications

SPECIFICATIONS
	Dimensions	MM	FT – IN
External	Length	6058	20’
	Width	2438	8’
	Height	1220	4’
Internal	Length	5758	18’ – 10 11/16”
	Width	2012	6’ – 7 9/16”
	Height	880	2’ – 10 41/64”
Fork Pocket Height		120	4 23/32”
Inside Cubic Capacity		CU.M	CU.FT
Inside Cubic Capacity		10	353.2
		KG	LBS
Maximum Gross Weight		13320	29365
Tare Weight (nominal)		3320	7319
Maximum Payload		10000	22046

4.Pics

5.Hot Sale Products

Other ISO Container Specifications are as follows:

Specifications
	External (mm)			Internal (mm)			M³
Type	Length	Width	Height	Length	Width	Height	Internal Volume
20'GP	6058	2438	2591	5898	2352	2393	33.2
20'HC	6058	2438	2896	5898	2352	2698	37.4
40'GP	12192	2438	2591	12032	2352	2393	67.7
40'HC	12192	2438	2896	12032	2352	2698	76.4
40'HCDD	12192	2438	2896	11978	2352	2698	76
10'	2991	2438	2591	2840	2350	2393	16
10'HC	2991	2438	2896	2840	2350	2698	18
6'GP	1981	1640	1660	1867	1552	1493	4.3
7'GP	2235	1800	1960	2084	1714	1795	5.37
8'GP	2489	2000	2260	2338	1914	2095	9.4
9'GP	2743	2200	2560	2592	2114	2395	13.1

6. Our customers

Our customers are worldwide, including the world-renowned shipping companies, container leasers and many other logistics enterprises all over the world, such as MAERSK, MSC,CMA,COSCO,TEX,SEACO,SEACUBE,JB-HUNT,CROWLEY,FLEX-BOX,MUWON,Chinese Railway and so on.

7. Comany Information

Qingdao CIMC Container Manufacture Co., Ltd. (QDCM) is one of the subsidiaries of China International Marine Containers (Group) Ltd. (CIMC), the largest container manufacturer worldwide. QDCM was founded in 1999 and located at No.1 ,Huanghe East Road, Qingdao Economic & Technological Development Zone. The total investment of QDCM is 28 million dollar; registered capital is 27.84 million dollar.

As one of the main dry container production bases in the North of China, QDCM have an annual output of 150 thousand TEU and a stacking area of 35,000 TEU.

With advanced technology, QDCM has a modern first-class production line to produce excellent products for customers.

From product design,production, inspection to after service, we have established a complete quality assurance workflow.

With the strict and canonical quality management system running and the good team of QDCM exerting, we keep on providing for our customers with excellent products and service.

QDCM has gained the Certificate of Approval of ISO 9001, ISO 14001 and OHSAS 18001. We have been running the quality management system quite well.

All containers can be certified for design type and individual inspection by the Classification Society, such as BV (France), ABS (USA), DNV-GL or CCS (P.R.C).
