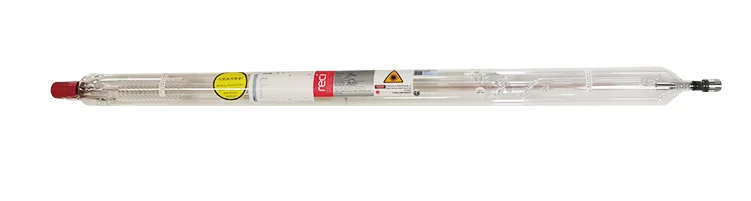

Reci CO2 Laser Tube W6 130W 150W for Laser Cutting Machine

Product details
Application:Co2 Laser Engraving/cutting Machines;Keywords:Co2 Laser Tube;
Supply Ability:20000 Pieces per Month;Local Service Location:Egypt,Canada,United States,Brazil,India,Mexico,Russia,Australia,Morocco,Argentina,South Korea,Chile,Colombia,Algeria,South Africa;
Wavelength:1064nm/10.6um;Machinery Test Report:Provided;
After Warranty Service:Online support;Warranty:1 Year;
Length(mm):1250;Payment Terms:T/T;
Showroom Location:Egypt,Canada,United States,Peru,Mexico,Russia,Morocco,Argentina,South Korea,Chile,Colombia,Algeria,Australia,None;Marketing Type:Hot Product 2019;
Material:Glass;Laser type:Sealed CO2 Laser Tube;
Applicable Industries:Manufacturing Plant,Machinery Repair Shops,Advertising Company,Laser Cutting and Engraving;Product name:CO2 Laser Tube;
Packaging Detail:184*42*42 cm Carton + wooden case G.W 15KG;Weight (KG):3.47 KG;
Output power:130W;Key Selling Points:Long Service Life;
Certification:CE/ ROHS /TUV /FCC /EMC;Diameter(mm):80;
Video outgoing-inspection:Provided;Place of Origin:Beijing, China;
Brand Name:RECI LASER;Condition:New;
After-sales Service Provided:Video technical support;Spare Parts Type:CO2 Laser Tube;

Model

W1

W2

W4

W6

W8

T1

T2

T4

T6

Rated Output Power(W)

75

90

100

130

150

75

90

100

130

Max Output Power(W)

90

100

130

160

180

90

100

130

160

Length(mm)

1100

1250

1400

1650

1850

1110

1250

1400

1650

Outer Diameter(mm)

Φ80

Φ90

Φ65

Catalyst

YES

Lifespan(h)

>15000

>10000

>8000

Warranty()

540

360

300

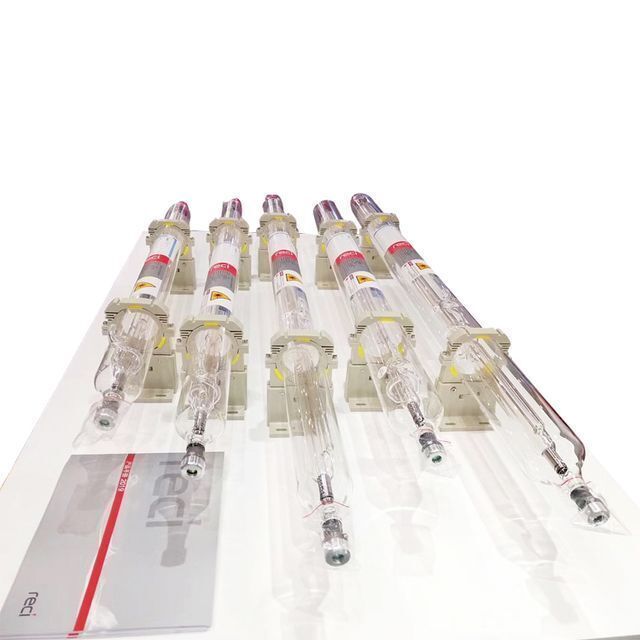

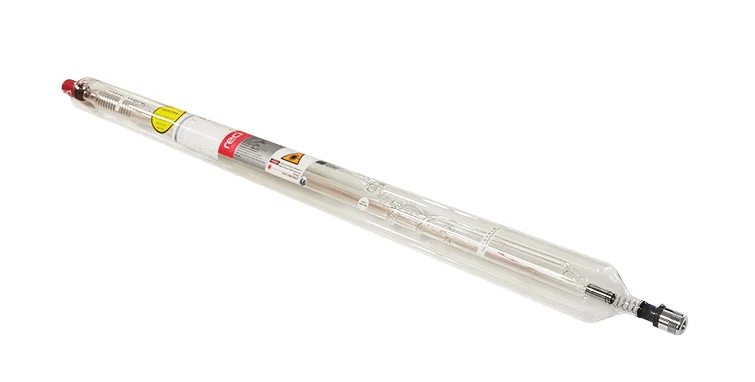

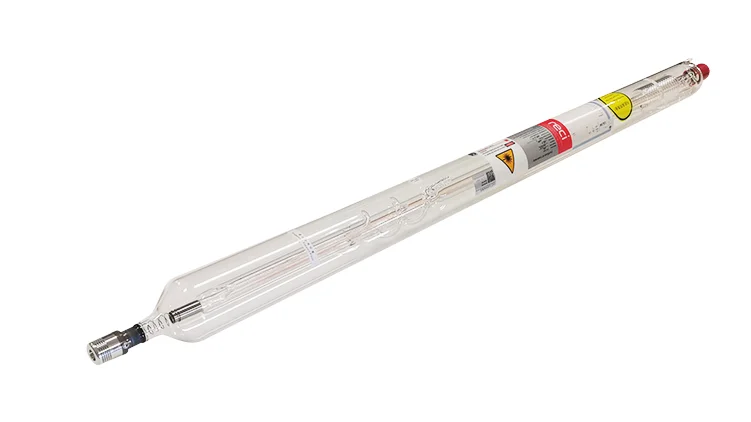

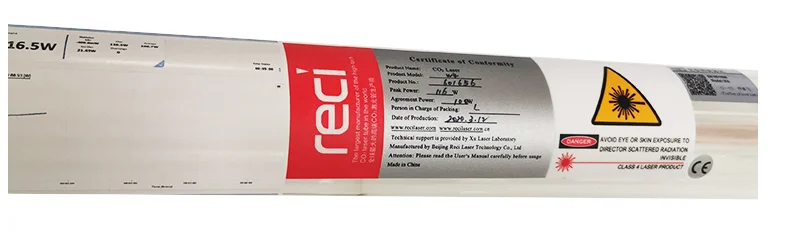

CO2 Laser Tube

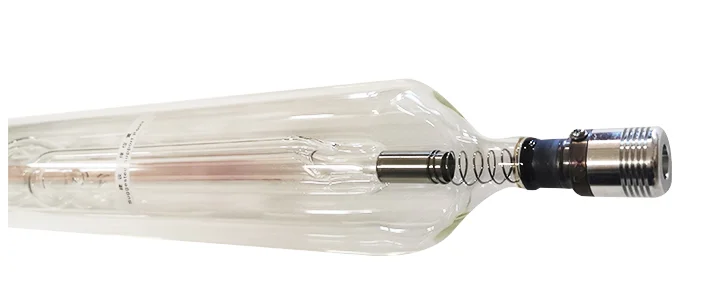

Reci upgrades and brings CO2 glass laser tube to 3.0 generation. Through the last ten years of development, the CO2 glass laser tube now develops to the third generation. The third generation of laser tube cancels the adjusting screws at both tube ends. Instead, the metal parts are made by high-precise CNC machine. New firing technology is used to join metal parts and glass parts together directly. This new technology makes the high stability in W series laser tubes.









+



Company Information



Packaging & Shipping



Our Services







FAQ





Q: How can I clean when the laser tube lens polluted?

A: Blow the lens surface obliquely with balloon. If the above no effect, user needs to remove the lens and use a cotton ball with a little alcohol to rotate the lens. No need too much alcohol, but the glue layer of the adhesive lens cannot be touched in case of gas inside escaping. The laser cannot be used till alcohol evaporating.



Q: How can I store the laser tubes when I do not use it?

A: The cooling liquid must run out in storage or transportation; The output must be covered with a dust-proof plastic wrap; The storage temperature should be kept between 2-40°C and the humidity between 10-60%.



Q: I want to customize the Fiber diameter. Can you do it?

A: Yes, we can do 20/30um for FSL1000 and 30/50um for FSC1500 and FSC2000. You can text me if you have other special requirements.
