small seed cotton gin cotton fiber trial testing machine cotton seed extracting machine

Supplier: Yangzhou Nuodi Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms LISA DU
Price: $350.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New;	Warranty:	1 Year;
Dimension(LWH):	340320340mm;	Port:	QINGDAO,NINGBO,SHANGHAI,TIANJIN,GUANGZHOU,YIWU;
Capacity:	500g/15second;	Video outgoing-inspection:	Provided;
Machinery Test Report:	Provided;	Packaging Detail:	small seed cotton gin cotton fiber trial testing machine cotton seed extracting machine 1set/exported wooden case;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Alibaba;	Warranty of core components:	1 Year;
Application:	Cotton Seed Seperator;	Weight:	22 KG;
Suitable for:	Separate Unginned Cotton;	Brand Name:	NUODI;
Function:	Automatic Cotton Gin Machine;	Hot sell in:	Cotton Farms;
Raw material:	Cotton Seeds Ginning Ginned Seeds;	Package Preview:	;
Power:	0.26kw;	Voltage:	220V/380V;
Power supply:	Electric Cotton Ginning machine;	Core Components:	Motor;
Usage:	Seed Cotton Ginning Machine;	Keywords:	cotton seed separating removing machine;
Supply Ability:	10000 Sets per Month small seed cotton gin cotton fiber trial testing machine;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Type:	small seed cotton gin cotton fiber trial testing machine,Cotton ginning machine;	Showroom Location:	None;
Place of Origin:	Jiangsu, China;	Marketing Type:	Ordinary Product;

Product Description

1.There are sawtooth cotton ginning machine and roller type cotton ginning machine.

2.The difference between hem is that the roller type cotton ginning machine separates the cotton fiber from the cotton seed by the traction of the roller. The sawtooth gin uses sawtooth to hook the cotton fiber to separate the fiber and cottonseed.

Advantages and disadvantages:

1.The cotton fiber processed by roller gin is longer and tougher than the cotton fiber processed by the sawtooth gin, but there are many impurities. It seems that the gloss is not high.

Principle: Rough but well-arranged rubber rollers pull the cotton fibers off, and a fixed blade separates the fibers and cotton seeds.

2.A large amount of cotton is generally processed by a sawtooth gin in the industry. The cotton fiber processed by a sawtooth gin is shorter than that of a roller gin and has a slightly lower toughness than a roller gin. However, it has less impurities and looks high gloss.

Principle: There are dozens of circular saw blades installed in the gin, and the fine serrations hook the cotton fiber off, and the fiber and cotton seed are separated by a fan.

Details Images

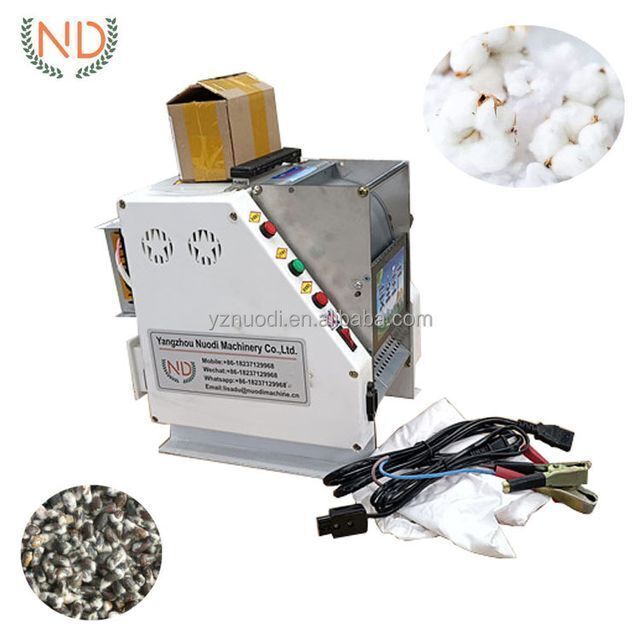

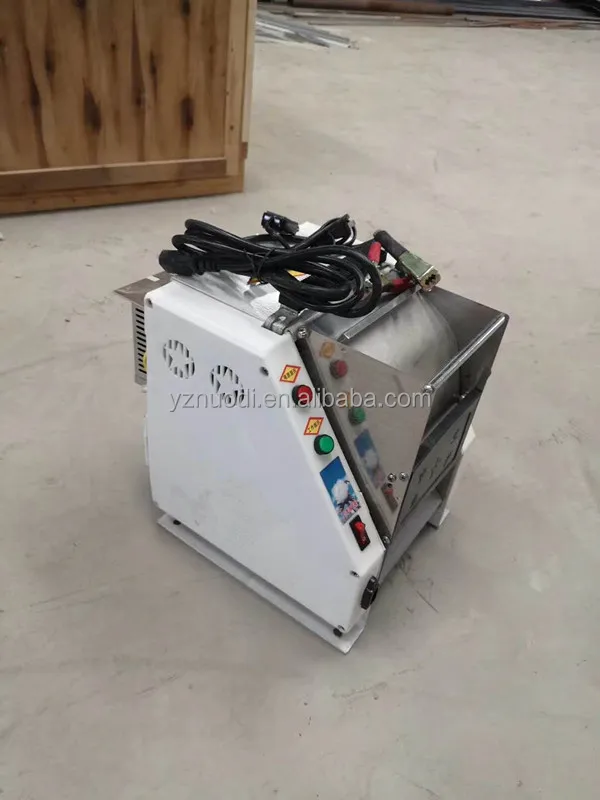

A.Cotton gin testing machine for lab

B.Roller type cotton ginning machine

Model	ND-RYH20A	ND-RYH50A	ND-RYH80A	ND-RYH100A
Capacity	10-20kg/h	30-60kg/h	60-80kg/h	110kg/h
Cotton ginning power	0.37kw	1.5-2.2kw	2.2-3kw	2.2-3kw
Speed	1440rpm	1440rpm	1400rpm	1440rpm
Roller size	115*205mm	140*505mm	150*805mm	160*1005mm
Seed breaking rate	<=2%	<=2%	<=2%	<2%
Rollers speed ratio	1:3:9	1:3:10	1:3:14	1:3.6:10.8
Weight	55kg	220kg	260kg	280kg
Size(mm)	450450740	1020850970	1250950980	13501030980
