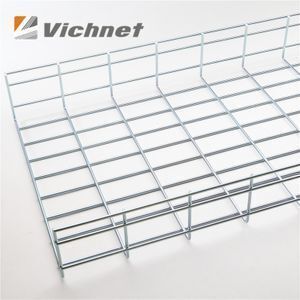

Hot Dipped Galvanized Cable tray

Supplier: Ningbo Vichnet Technology Co., Ltd.
Region: Zhejiang, China
Contact: Ms jenny liang
Price: $1.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Supply Ability:	100000 Piece/Pieces per Month;	Delivery Detail:	40HQ - 25 Days after Received Order (Depending on Order Amount);
Safe factor:	1.5;	Guarantee:	10 years;
Width:	50mm~1000mm;	Material:	Steel;
Place of Origin:	Zhejiang China (Mainland);	HDG thickness:	≥60;
Length:	Maximum3000mm;	Surface Finish:	hot dip galvanized,powder coating;
Type:	Wire Mesh;	Port:	Ningbo;
Max. Working Load:	Depends on the wire diameter,material.;	Brand Name:	VICHNET;
Side Rail Height:	25mm,50mm,75mm,100mm,125mm..;	Raw material:	Q235B;
Safe work loading:	BS EN 61537:2007 Cable Management Clause 10.4;	Electro zinc thickness:	≥12;
color:	zinc color;	Model Number:	Cable tray;
Salt Spray Tests time:	≥720hrs;	Payment Terms:	L/C,T/T;

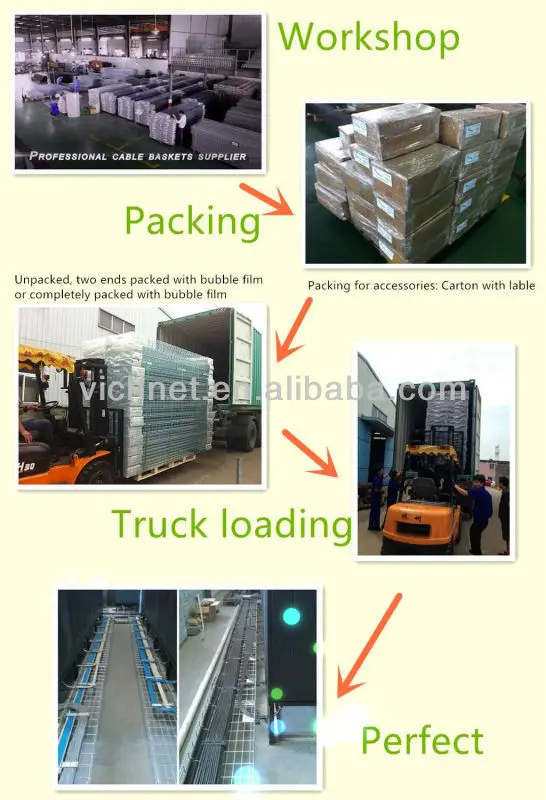

Packaging Detail:	Bubble film two ends wrapped for EZ & hot dipped galvanized wire mesh cable tray Double layers bubble film wrapped and with four corners card boar wrapped for SS304 & LCL shipping Pallets is optional Carton for accessories Cable tray(UL.CUL.CE);

Company Information

Vichnet is professional in manufacturing wire mesh cable tray, The company is located in the beautiful coastal city of Ningbo, Zhejiang Province.

Our wire mish cable tray is windy used by Google ,Cocacola,Siemens ,Mircrosoftect, famous company

Our company has ISO9001:2008 and GMC. Wire mesh cable tray has UL, CUL, CE certificates and passed Rohs, loading capacity, welding strength etc. tests

Our slogan is “Reliable wire mesh cable tray ! Reliable Vichnet!”. At vichnet, we do our best to win the satisfaction of our customers.

Material:

Q235B Steel (Chinese standard steel)

Surface Finish:

Electro zinc plated wire mesh cable tray – for indoor use to BS EN 12329-2000, 12microns thick.

Powder coated wire mesh cable tray- for indoor use to JG/T3045-1998, between 60 and 100 microns thick

Hot Dipped Galvanized wire mesh cable tray – for outdoor use to BS EN 1461-1999, between 60 and 80 microns thick

Electrolytic Polishing wire mesh cable tray – for stainless steel use

Material	Surface finishing	Thickness of coating	Application environment
Q235 Steel	Electro zinc plating	>=12um	Indoor
Q235 Steel	Hot dip galvanized	>60um	Indoor, Outdoor
Q235 Steel	Powder coating	>60um	Indoor, need colors
SS304	acid washing	N/A	Indoor, Outdoor
SS316	acid washing	N/A	Indoor, Outdoor, high corrosion occasions.
SS316L	acid washing	N/A	Indoor, Outdoor, high corrosion

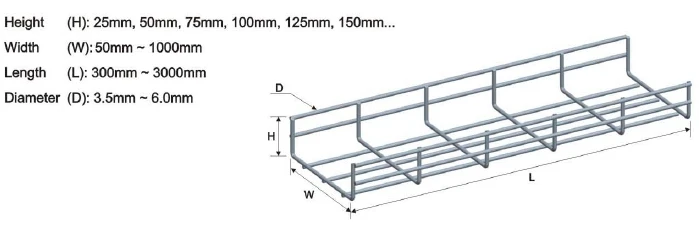

Dimensions: (Available for customized)

Wire mesh cable tray dimensions are all internal size.

Wire cable basketss are constructed with a 50mm x 100mm, 50mm x 50mm, and 40mm x 40mm mesh grid.

Installation Notice:

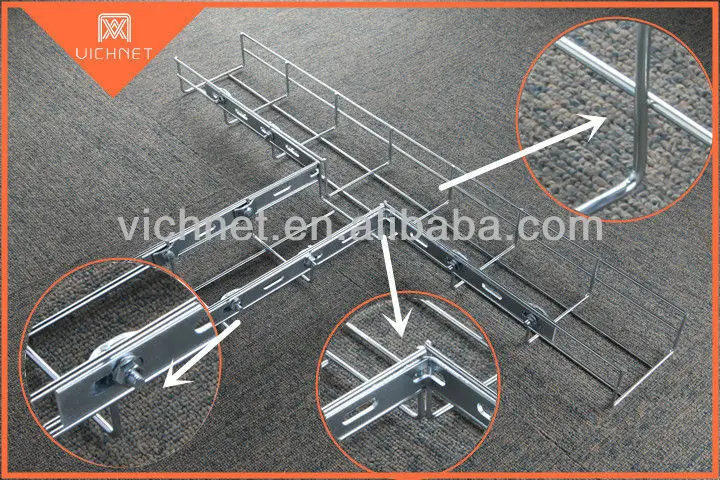

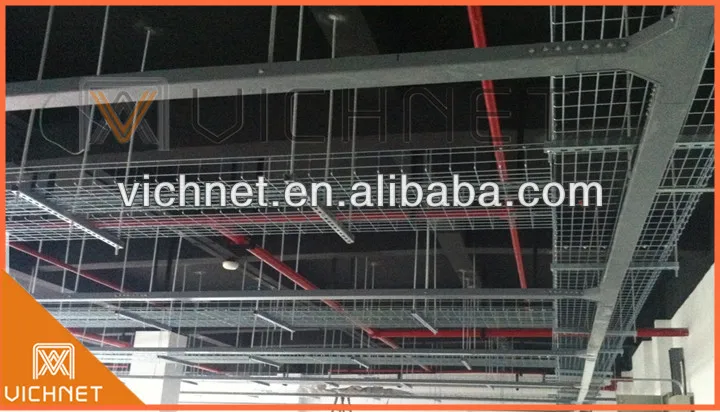

Bends, Risers, T Junctions, Crosses and Reducers can be made from perforated cable tray (UL.CUL.SGS.CE) straight sections flexibly in project site.

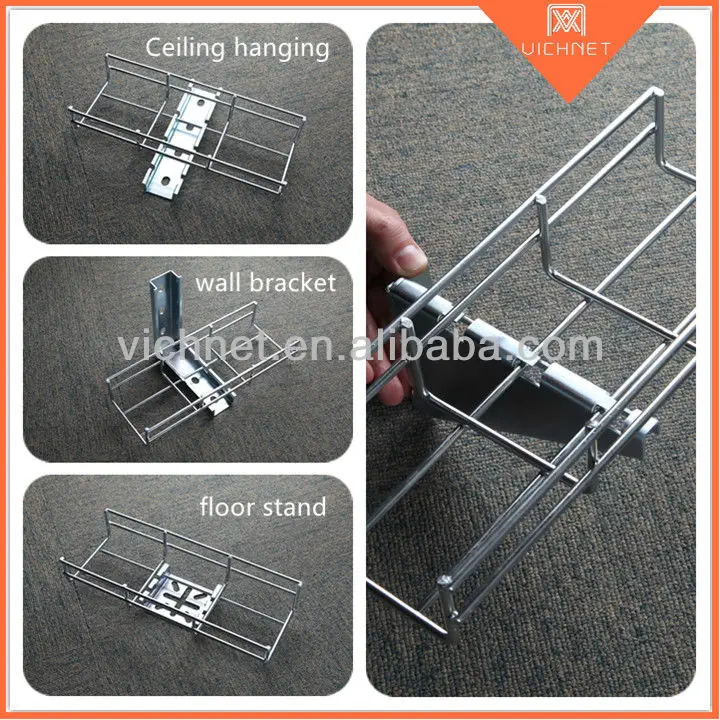

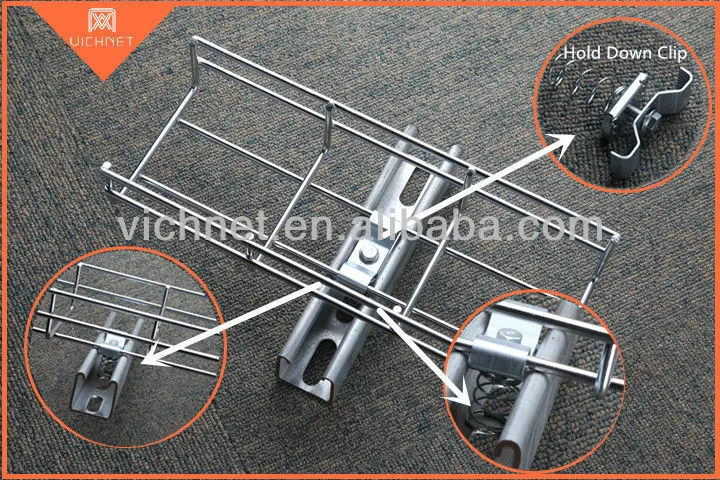

perforated cable tray (UL.CUL.SGS.CE) should be supported at a normally span 1.5m by trapeze, wall, floor or channel mounting methods (Maxium span is 2.5m).

perforated cable tray (UL.CUL.SGS.CE) can be safely applied in places where the temperature ranges between -40°C and +150°C without any change to their characteristics

Our Advantages

1. Vichnet is a leading wire mesh cable tray (UL.CUL.SGS.CE) manufacturer in China.

2. Siemens and Google specified wire mesh cable tray (UL.CUL.SGS.CE) supplier.

3. ISO9001:2008/UL/CUL/CE, passed Rohs test.

4. Wire cable baskets EZ>12u.HDG>60 ,PC>60

5. Vichnet provides all solution for Cable tray(UL.CUL.CE ) , provide the technical guide movie.

6. Advanced design team, OEM service accepted.

7.There is no tolerance of wire diameter.

8.Zinc coating is non-toxic. It can be passed Rohs test

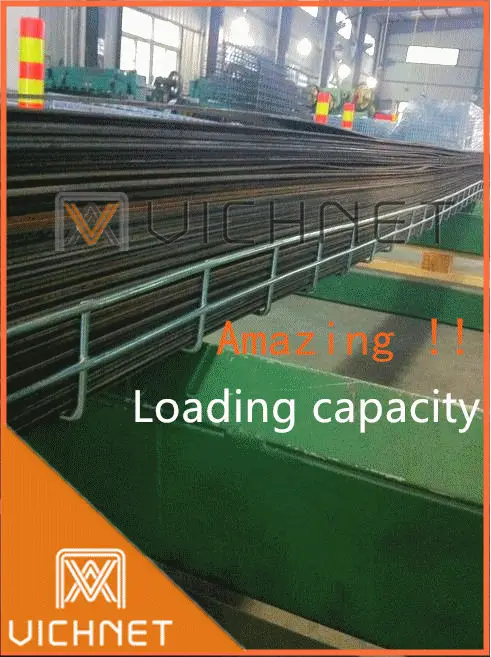

9.Welding Capacity and Loading capacity

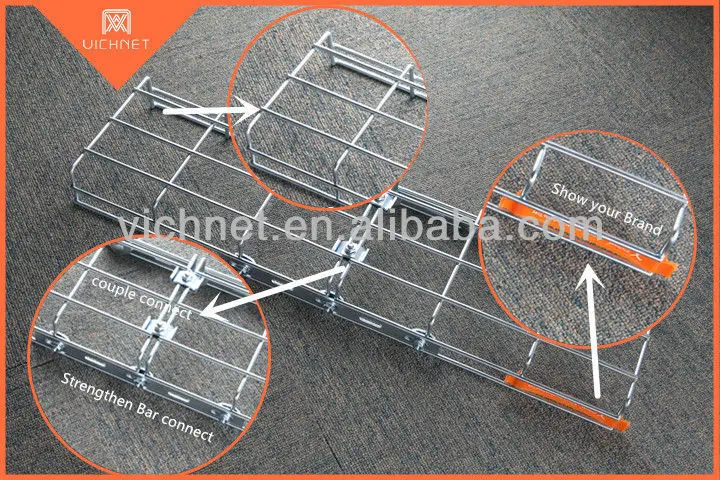

Produce Show

Welcome to choose our high quality perforated cable tray (UL.CUL.SGS.CE) ! More information of our company please contact us!!
