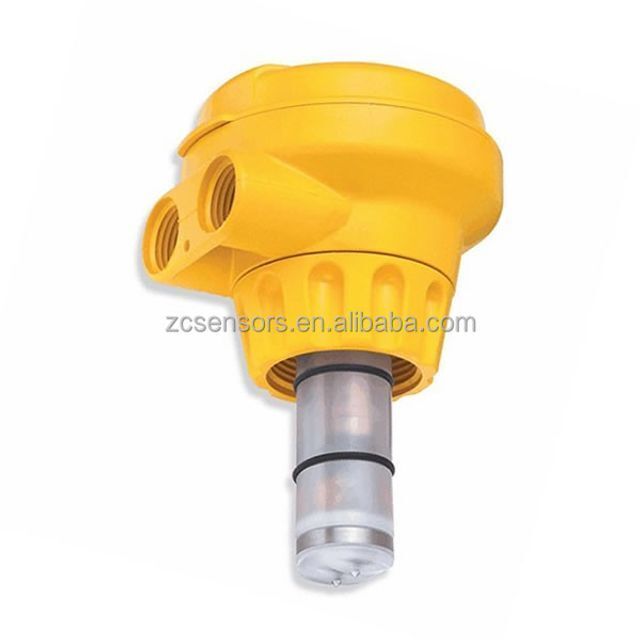

  Signet 2551 Magmeter

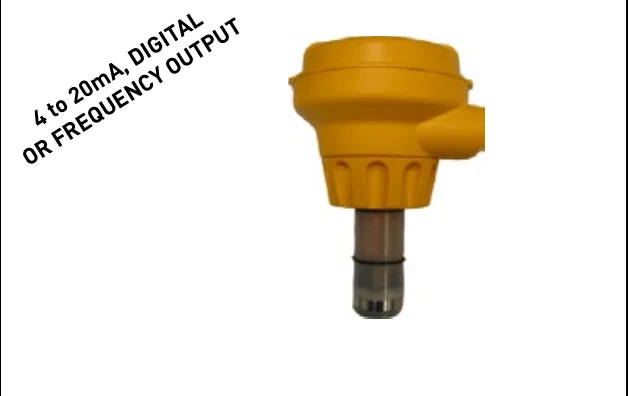

Description The Signet 2551 Magmeter is an insertion style magnetic flow sensor that features no moving parts. All versions are constructed of corrosion-resistant materials to provide long-term reliability with minimal maintenance costs. Utilizing the comprehensive line of Signet installation fittings, sensor alignment and insertion depth are automatic. These versatile, simple-to-install sensors deliver accurate flow measurement over a wide dynamic range in pipe sizes ranging from DN15 to DN200 (0.5 to 8 inches), satisfying the requirements of many diverse applications. Signet 2551 Magmeters offer a variety of output options for use with Signet flow instrumentation using a frequency or digital (S3L) output. The blind transmitter (4 to 20 mA output) or digital sensor interface is available for long distance signal transmission. Flow velocity measurement is compensated for temperature via an integrated temperature sensor.

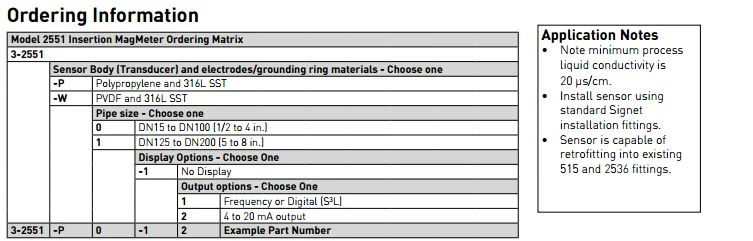

Part Number      Code

3-2551-P0-11    159 001 105
3-2551-P0-12    159 001 110
3-2551-W0-11   159 001 230
3-2551-W0-12   159 001 231

3-2551-P1-11    159 001 106
3-2551-P1-12    159 001 111
3-2551-W1-11   159 001 232
3-2551-W1-12   159 001 233

Accessories and Replacement Parts

Mfr. Part No.         Code         Description

O-Rings
1220-0021     198 801 186      O-ring, FPM (Viton ® )
1224-0021     198 820 006      O-ring, EPDM
1228-0021     198 820 007      O-ring, FFPM (Kalrez ® )
Replacement Transducers
3-2551-P0    159 001 211       PP/316LSS, DN15 to DN100 (0.5 to 4 in.) pipe
3-2551-P1    159 001 212       PP/316LSS, DN125 to DN200 (5 to 8 in.) pipe
3-2551-W0   159 001 234       PVDF/316LSS, DN15 to DN100 (0.5 to 4 in.) pipe
3-2551-W1   159 001 235       PVDF/316LSS, DN125 to DN200 (5 to 8 in.) pipe
Replacement Electronics Modules
3-2551-11     159 001 215      Magmeter Electronics, frequency or digital (S3L) output
3-2551-12     159 001 216      Magmeter Electronics, 4 to 20mA output
Other
3-0232       159 000 865  RS232 Converter with set-up software
7300-7524 159 000 687 24VDC Power Supply 7.5W, 300mA
7300-1524 159 000 688 24VDC Power Supply 15W, 600mA
7300-3024 159 000 689 24VDC Power Supply 30W, 1.3A
7300-5024 159 000 690 24VDC Power Supply 50W, 2.1A
7300-1024 159 000 691 24VDC Power Supply 100W, 4.2A

3-2551-P0-11 32551P011 Polypropylene and 316L Stainless Steel DN15 to DN100 (1/2 to 4 in.) No display Frequency or Digital (S3L)

3-2551-P0-12 32551P012 Polypropylene and 316L Stainless Steel DN15 to DN100 (1/2 to 4 in.) No display 4-20 mA output

3-2551-P0-41 32551P041 Polypropylene and 316L Stainless Steel DN15 to DN100 (1/2 to 4 in.) With display Frequency or Digital (S3L)

3-2551-P0-42 32551P042 Polypropylene and 316L Stainless Steel DN15 to DN100 (1/2 to 4 in.) With display 4-20 mA output

3-2551-P0-21 32551P021 Polypropylene and 316L Stainless Steel DN15 to DN100 (1/2 to 4 in.) With display, 2 SPDT relays, 1 solid state relay Frequency or Digital (S3L)
3-2551-P0-22 32551P022 Polypropylene and 316L Stainless Steel DN15 to DN100 (1/2 to 4 in.) With display, 2 SPDT relays, 1 solid state relay 4-20 mA output

3-2551-P1-11 32551P111 Polypropylene and 316L Stainless Steel DN125 to DN200 (5 to 8 in.) No display Frequency or Digital (S3L)

3-2551-P1-12 32551P112 Polypropylene and 316L Stainless Steel DN125 to DN200 (5 to 8 in.) No display 4-20 mA output

3-2551-P1-41 32551P141 Polypropylene and 316L Stainless Steel DN125 to DN200 (5 to 8 in.) With display Frequency or Digital (S3L)

3-2551-P1-42 32551P142 Polypropylene and 316L Stainless Steel DN125 to DN200 (5 to 8 in.) With display 4-20 mA output

3-2551-P1-21 32551P121 Polypropylene and 316L Stainless Steel DN125 to DN200 (5 to 8 in.) With display, 2 SPDT relays, 1 solid state relay Frequency or Digital (S3L)

3-2551-P1-22 32551P122 Polypropylene and 316L Stainless Steel DN125 to DN200 (5 to 8 in.) With display, 2 SPDT relays, 1 solid state relay 4-20 mA output

3-2551-P2-11 32551P211 Polypropylene and 316L Stainless Steel DN250 to DN300 (10 to 12 in) No display Frequency or Digital (S3L)

3-2551-P2-12 32551P212 Polypropylene and 316L Stainless Steel DN250 to DN300 (10 to 12 in) No display 4-20 mA output

3-2551-P2-41 32551P241 Polypropylene and 316L Stainless Steel DN250 to DN300 (10 to 12 in) With display Frequency or Digital (S3L)

3-2551-P2-42 32551P242 Polypropylene and 316L Stainless Steel DN250 to DN300 (10 to 12 in) With display 4-20 mA output

3-2551-P2-21 32551P221 Polypropylene and 316L Stainless Steel DN250 to DN300 (10 to 12 in) With display, 2 SPDT relays, 1 solid state relay Frequency or Digital (S3L)

3-2551-P2-22 32551P222 Polypropylene and 316L Stainless Steel DN250 to DN300 (10 to 12 in) With display, 2 SPDT relays, 1 solid state relay 4-20 mA output

3-2551-V0-11 32551V011 PVDF and Hastelloy C DN15 to DN100 (1/2 to 4 in.) No display Frequency or Digital (S3L)

3-2551-V0-12 32551V012 PVDF and Hastelloy C DN15 to DN100 (1/2 to 4 in.) No display 4-20 mA output

3-2551-V0-41 32551V041 PVDF and Hastelloy C DN15 to DN100 (1/2 to 4 in.) With display Frequency or Digital (S3L)

3-2551-V0-42 32551V042 PVDF and Hastelloy C DN15 to DN100 (1/2 to 4 in.) With display 4-20 mA output

3-2551-V0-21 32551V021 PVDF and Hastelloy C DN15 to DN100 (1/2 to 4 in.) With display, 2 SPDT relays, 1 solid state relay Frequency or Digital (S3L)

3-2551-V0-22 32551V022 PVDF and Hastelloy C DN15 to DN100 (1/2 to 4 in.) With display, 2 SPDT relays, 1 solid state relay 4-20 mA output

3-2551-V1-11 32551V111 PVDF and Hastelloy C DN125 to DN200 (5 to 8 in.) No display Frequency or Digital (S3L)

3-2551-V1-12 32551V112 PVDF and Hastelloy C DN125 to DN200 (5 to 8 in.) No display 4-20 mA output

3-2551-V1-41 32551V141 PVDF and Hastelloy C DN125 to DN200 (5 to 8 in.) With display Frequency or Digital (S3L)

3-2551-V1-42 32551V142 PVDF and Hastelloy C DN125 to DN200 (5 to 8 in.) With display 4-20 mA output

3-2551-V1-21 32551V121 PVDF and Hastelloy C DN125 to DN200 (5 to 8 in.) With display, 2 SPDT relays, 1 solid state relay Frequency or Digital (S3L)

3-2551-V1-22 32551V122 PVDF and Hastelloy C DN125 to DN200 (5 to 8 in.) With display, 2 SPDT relays, 1 solid state relay 4-20 mA output

3-2551-V2-11 32551V211 PVDF and Hastelloy C DN250 to DN300 (10 to 12 in) No display Frequency or Digital (S3L)
3-2551-V2-12 32551V212 PVDF and Hastelloy C DN250 to DN300 (10 to 12 in) No display 4-20 mA output

3-2551-V2-41 32551V241 PVDF and Hastelloy C DN250 to DN300 (10 to 12 in) With display Frequency or Digital (S3L)

3-2551-V2-42 32551V242 PVDF and Hastelloy C DN250 to DN300 (10 to 12 in) With display 4-20 mA output

3-2551-V2-21 32551V221 PVDF and Hastelloy C DN250 to DN300 (10 to 12 in) With display, 2 SPDT relays, 1 solid state relay Frequency or Digital (S3L)

3-2551-V2-22 32551V222 PVDF and Hastelloy C DN250 to DN300 (10 to 12 in) With display, 2 SPDT relays, 1 solid state relay 4-20 mA output

3-2551-T0-11 32551T011 PVDF and Titanium DN15 to DN100 (1/2 to 4 in.) No display Frequency or Digital (S3L)

3-2551-T0-12 32551T012 PVDF and Titanium DN15 to DN100 (1/2 to 4 in.) No display 4-20 mA output

3-2551-T0-41 32551T041 PVDF and Titanium DN15 to DN100 (1/2 to 4 in.) With display Frequency or Digital (S3L)

3-2551-T0-42 32551T042 PVDF and Titanium DN15 to DN100 (1/2 to 4 in.) With display 4-20 mA output

3-2551-T0-21 32551T021 PVDF and Titanium DN15 to DN100 (1/2 to 4 in.) With display, 2 SPDT relays, 1 solid state relay Frequency or Digital (S3L)

3-2551-T0-22 32551T022 PVDF and Titanium DN15 to DN100 (1/2 to 4 in.) With display, 2 SPDT relays, 1 solid state relay 4-20 mA output

3-2551-T1-11 32551T111 PVDF and Titanium DN125 to DN200 (5 to 8 in.) No display Frequency or Digital (S3L)

3-2551-T1-12 32551T112 PVDF and Titanium DN125 to DN200 (5 to 8 in.) No display 4-20 mA output

3-2551-T1-41 32551T141 PVDF and Titanium DN125 to DN200 (5 to 8 in.) With display Frequency or Digital (S3L)

3-2551-T1-42 32551T142 PVDF and Titanium DN125 to DN200 (5 to 8 in.) With display 4-20 mA output

3-2551-T1-21 32551T121 PVDF and Titanium DN125 to DN200 (5 to 8 in.) With display, 2 SPDT relays, 1 solid state relay Frequency or Digital (S3L)

3-2551-T1-22 32551T122 PVDF and Titanium DN125 to DN200 (5 to 8 in.) With display, 2 SPDT relays, 1 solid state relay 4-20 mA output

3-2551-T2-11 32551T211 PVDF and Titanium DN250 to DN300 (10 to 12 in) No display Frequency or Digital (S3L)

3-2551-T2-12 32551T212 PVDF and Titanium DN250 to DN300 (10 to 12 in) No display 4-20 mA output

3-2551-T2-41 32551T241 PVDF and Titanium DN250 to DN300 (10 to 12 in) With display Frequency or Digital (S3L)

3-2551-T2-42 32551T242 PVDF and Titanium DN250 to DN300 (10 to 12 in) With display 4-20 mA output

3-2551-T2-21 32551T221 PVDF and Titanium DN250 to DN300 (10 to 12 in) With display, 2 SPDT relays, 1 solid state relay Frequency or Digital (S3L)
