Warranty: | 5 years; | Brand Name: | Nanolink; |
Feature: | Anti Scracth; | Thickness: | 7.6mil(190micron); |
Material: | TPU; | MOQ: | 1 Roll; |
Design Style: | Brief & Single Color; | Application: | Car Paint Protection; |
Advantage: | fast recovery self-healing; | Place of Origin: | Jiangsu, China; |
Single package size: | 160X20X20 cm; | Use: | Body Stickers; |
Function: | Anto repair film; | Selling Units: | Single item; |
Package Preview: | ; | Size: | 1.52M (60") & 15M(50'); |
Feature 2: | No yellowing; | TPU ORIGIN: | Mitsui JP; |
Single gross weight: | 13.000 KG; | Model Number: | TPU-HPM8S; |
Glue Type: | Ashland Glue; | Durability: | 5 year; |

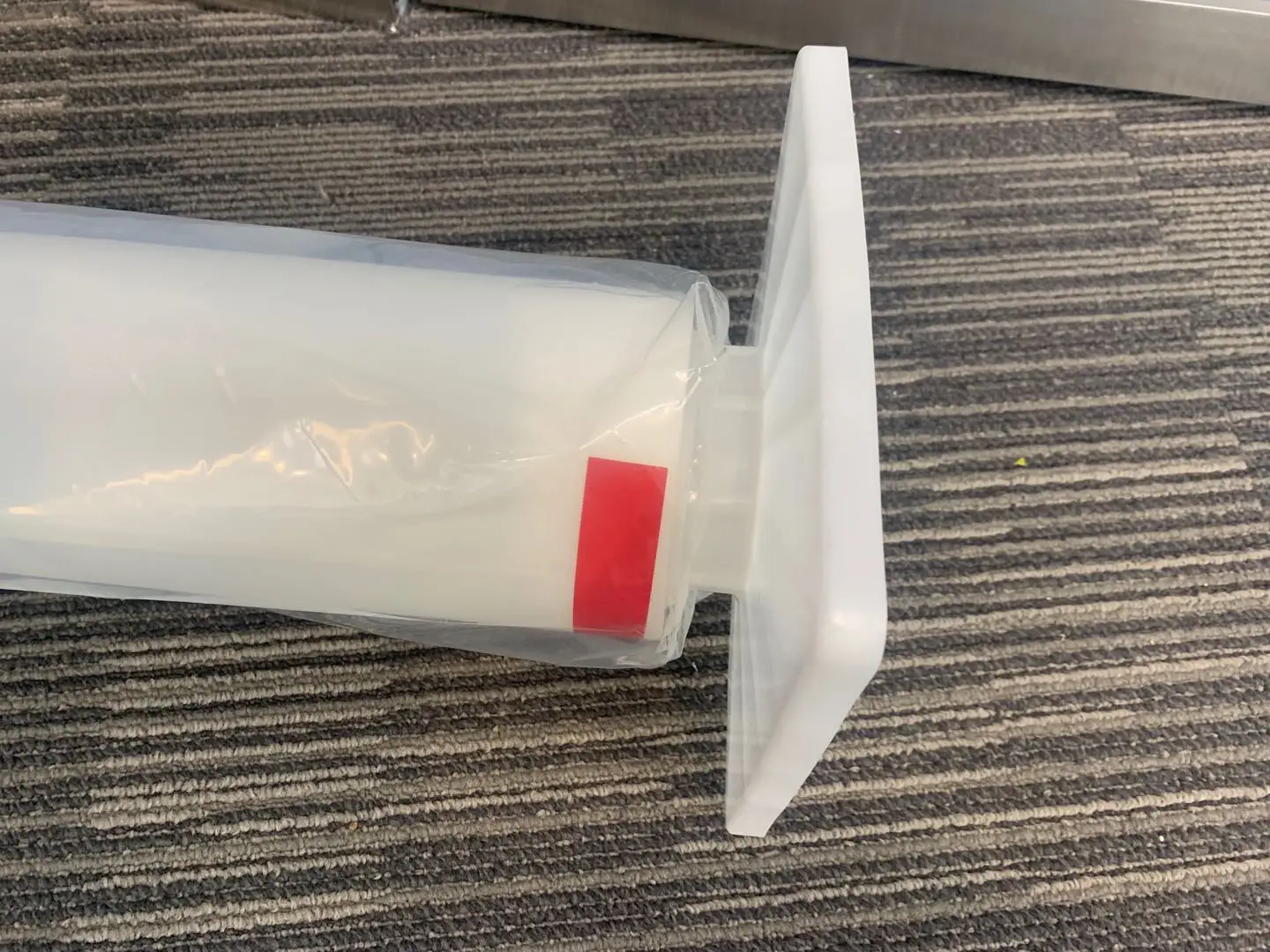

Type: | Logo / Badge; | Packaging Detail: | Hard Cartons Can be customized; |
Product Structure
The product has five layers. The first layer is surface protective film, the second layer is self-repairing coating, the third layer is TPU film, the fourth layer is adhesive layer, and the fifth layer is release film.

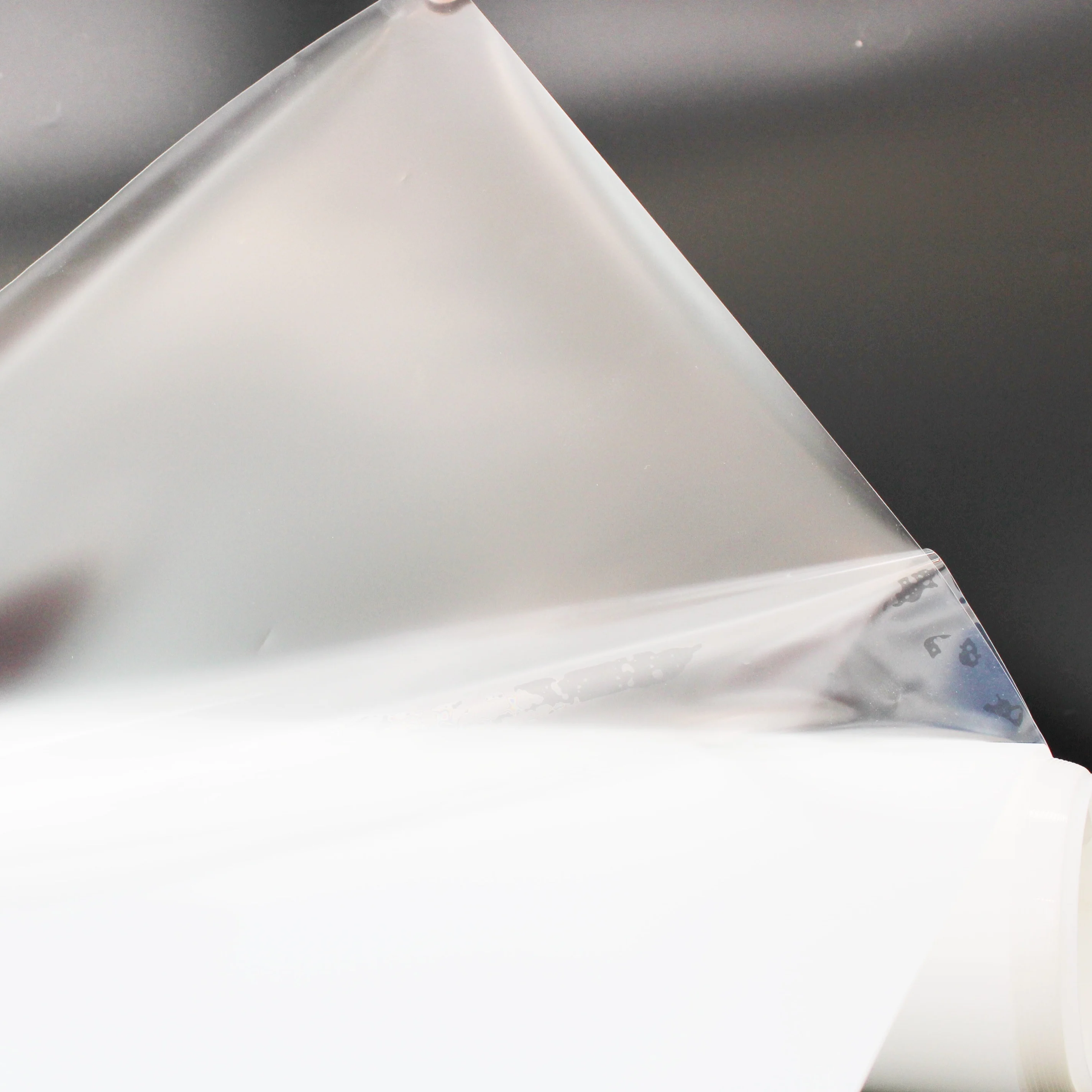

Product Material
TPU film (thermoplastic polyurethane elastomer) material as the substrate,and precision coating nanometer repair coating and high - performance pressure sensitive adhesive coating products,both plastic and rubber excellent characteristics.
In the PPF market,you must have heard of Argotec (USA). It was the main TPU raw supplier of LLumar, Xpel and so on. NANOLINK exported the same TPU film production equipment with Argotec. At present, we are the only one in China with this advanced equipment. Our tech and production is very mature in PPF field. The product quality is stable and reliable, flatness reaches 3-5% level. And it reaches 8% from Matai Japan. Our technical level and production line have reached the world's leading standards.

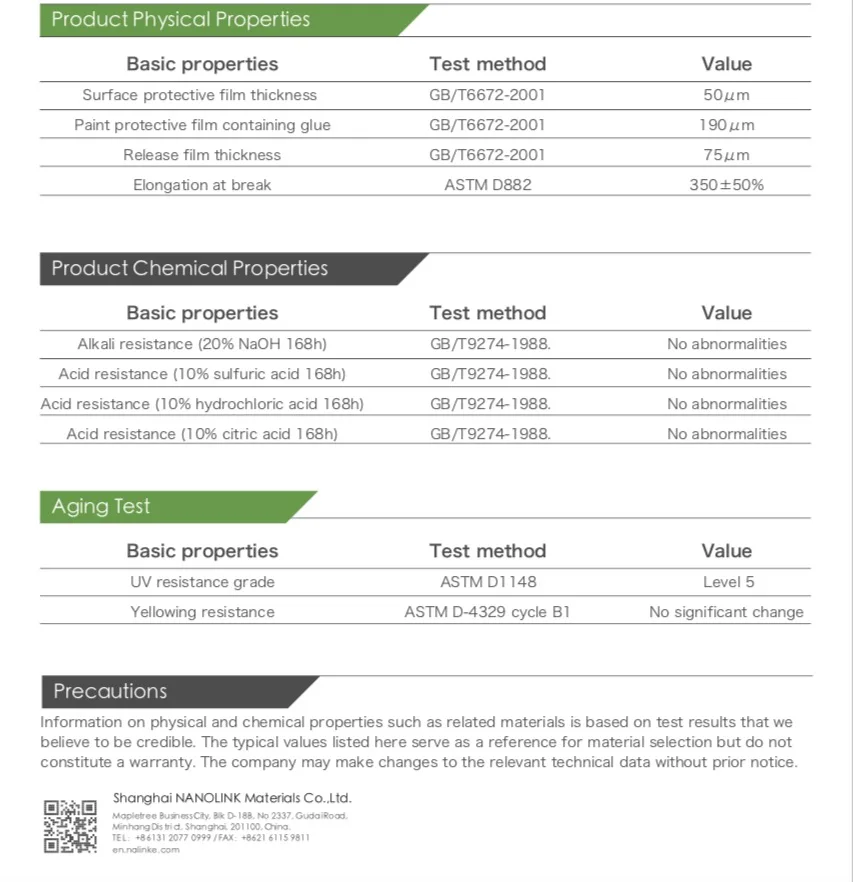

TPU FILM | ||||
Testing Items | Specs | Testing Method | ||
TPU thickness | 150±15 um | Idometer | ||
Total thickness | 190±15 um | Idometer | ||
TPU raw material brand | Japan and USA | Document | ||
Gum | Ashland(USA) | Document | ||
Release film | One side matte release film one side pet clear 125±5um | Idometer | ||
Tensile property | 300kg/cm² | ASTM D412 | ||
Elongation | 350% |
ASTM D412
| ||
Glossiness | >90% | Gloss Meter @60° | ||
Black paint surface | Applied on black paint surface for 10 min | |||
Light Transmittance | Clarity | Applied on transparent acrylic sheet | ||
Data | Color meter/transmittance meter | |||
Scratch resistance (5pt) | 4pt | Dry towel, Brass Brush | ||
Thermal Self-healing | 100% Self-healing | Dry towel, brass brush 70℃ hot water | ||
Hydrophobic Property | R9-R10 | JIS P-8137 / Japan Standard JIS P-8137 | ||
Stain Resistance(normal temperature) | Can be removed by tissue | Oil- ased marker (deli S552) | ||
Anti-yellowing | △E<1.2 | QUV accelerated aging test (6500W) 2000h colorimeter | ||
Warranty | 5 years | Yellowing, existing gum, breaking surface |

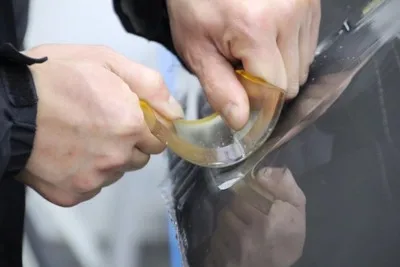

Yes. The car paint protection film used exported removable glue and can be easily remove and do not damage
the car paint.
