Type: | 2016 Large Wood Shavings Machine for animal bedding; | Model Number: | TYS-145; |
application: | Wood shaving machine for animal bedding; | Voltage: | 380V/50HZ; |
website: | www.zzbroad.com; | Certification: | ISO; |
Application: | shaving making machine; | Power: | 200KW; |
Dimension(L*W*H): | 2900*850*1200mm; | Weight: | 2850kg; |
Brand Name: | TIANYUAN; | Payment Terms: | L/C,T/T; |
Place of Origin: | Henan, China; | Warranty: | 12 Months; |
Delivery Detail: | Within 20-30 day when the order proceeds wood shaving machine; | Supply Ability: | 30 Sets per Month; |
Service: | OEM service; | After-sales Service Provided: | No overseas service provided; |
color: | as per client request; | Port: | China Port; |
Packaging Detail: | Large Wood Shavings Machine packed by wooden case or in bulk; | Condition: | New; |
Production Capacity: | 1.5~2.0 Tons; | commodity: | Wood shaving machine; |
2016 Large Wood Shavings Machine for animal bedding
Wood shaving machine can make logs,tree branch edge and processed wood into wood shaving
final product used for animal bedding.
Usage:
1. It can be used for shaving board. or as the biological fuel.
2. Raw material of wood pulp paper in paper-making plant.
3. Shipping company used a fillings for shipping fragile things.
4. Used in animal beds fillings in farm plant for cow,pig,horse,sheep or all kinds of animals.
5. Used in shaving board plant,board millt,paper-making plant.
6. The automatic feeding equipment,greatly improved the speed of production.
Model TYS145 shaving machine Model 135 shaving machine
Model | TYS135 | TYS145 |
Feed material length(cm) | 120 | 140 |
Feed material width(cm) | 45 | 45 |
Cutter roller (pcs) | 2 | 4 |
Blade (pcs) | 8 | 24 |
Speed (r/min) | 4500 | 4500 |
Diameter (mm) | 140 | 140 |
Power (kw) | 15 | 37 |
Shavings thickness(mm) | 1-5 mm | 1-5mm |
Feed speed ( Hydraulic) | 6-15m/min | 6-15m/min |
Dimension (W×L×H)(m) | 3.2*1.25*1.8 ,1.3*1.25*2 | 5.15*1.15*1.8 |
Weight (kg) | 3650 | 2850 |
Shavings usage :

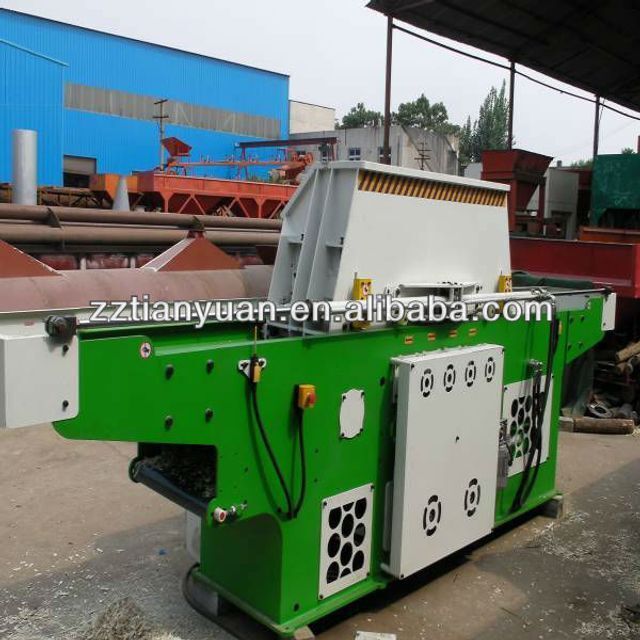

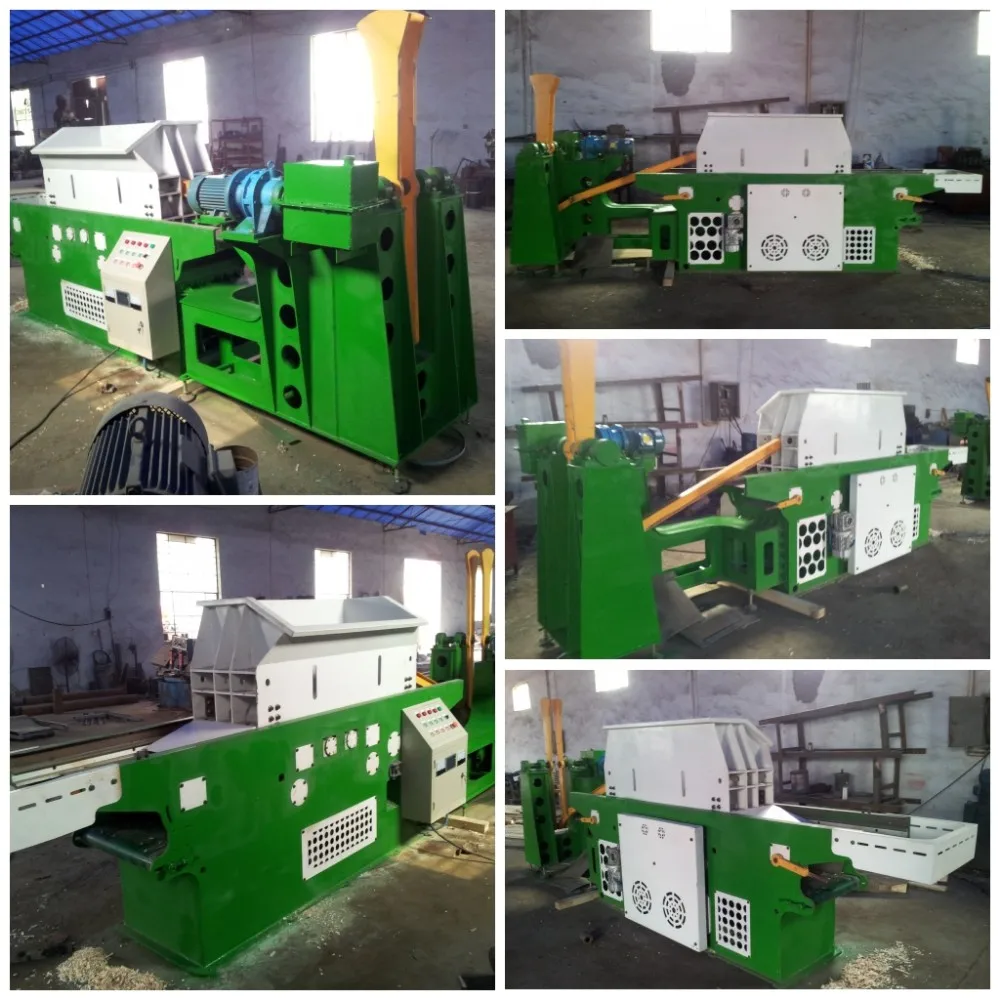

TYS145 Shaving machine Photos:

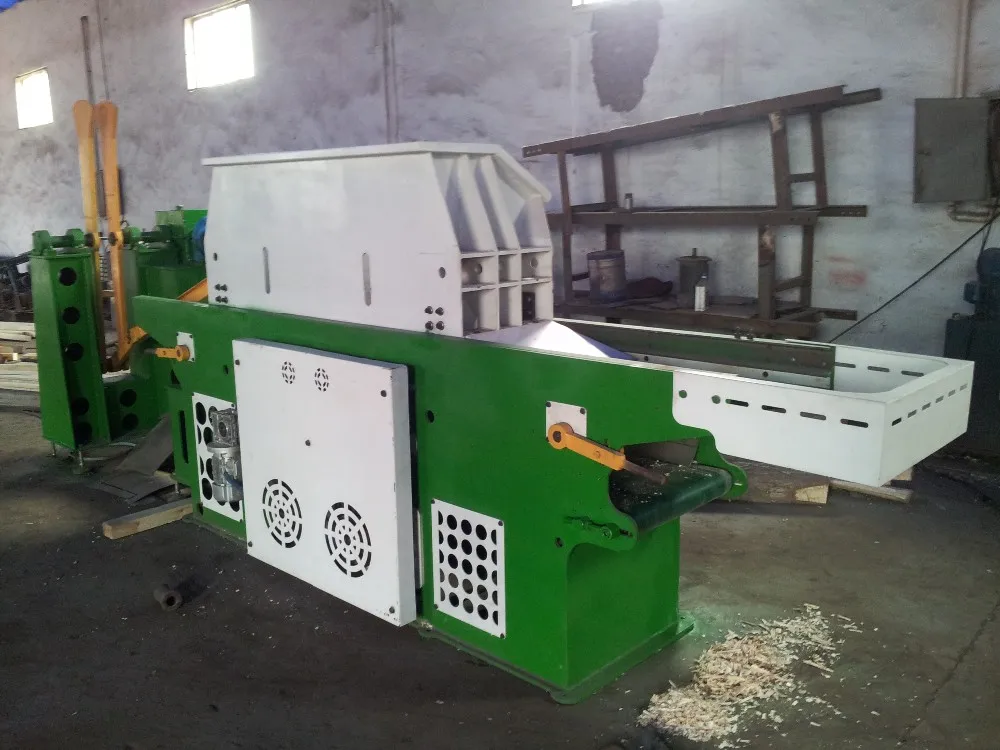

TYS135 Shaving machine photos:
