desk top mini bench drill press machine 13mm SP5213A

  • Supplier: Shanghai Sumore Industrial Co., Ltd
  • Region: Shanghai, China
  • Contact: Ms Sarah Tian
  • Price: $45.00 / 20 - 199 pieces
    $43.00 / 200 - 499 pieces
    $38.00 / >=500 pieces
  • Min. Order: 20 pieces
Product details
Payment Terms:L/C,D/A;Port:Shanghai;
Max Spindle Speed:2000RPM;Supply Ability:1000 Sets per Month drill press machine;
Packaging Detail:wooden box desk top mini bench drill press machine 13mm SP5213A;Table Size:160X160mm;
Customized support:OEM;raw material:Aluminium ,copper,steel, metal,wood;
certificate:CE;Model Number:SP5213A;
Motor Power:250/350W;Warranty:1;
Power Source:Electric;Name:desk top drill press machine;
customized request:Color,voltage,brand, accessories;Max Working Height:20IN,10in;
Function:drilling,Threading,Turning,Knurling;Voltage:110V-240V;
Name1:drilling machine;key word:Vertical Drill Press;
Place of Origin:China;Certification:GS;
Package Preview:;Chuck Capacity:1/2in,5/8in,1 1/4IN;
After-sales Service Provided:Engineers available to service machinery overseas;
SUMORE
Twenty years of experience in industry and trade integration.
The fastest delivery cycle in the industry.
100% response rate of customer service online at any time.<view more>
Product Description

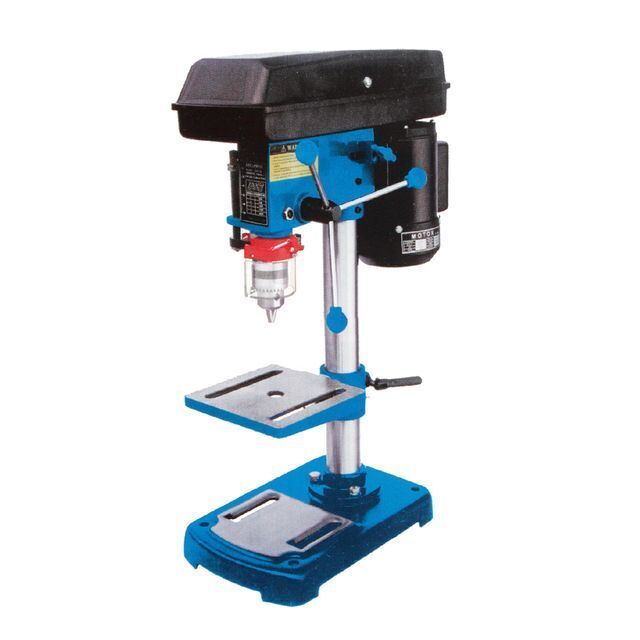

desk top mini bench drill press machine 13mm SP5213A
1. High Rigid Construction
2. Easy Operation and Extended Durability
3. Different Sizes and Replaceable Worktables
4. Considerable Safety Design
5. 1/2" (13mm) max chuck capacity
6. 210mm swing
7. - 45 degree ~ 0 degree ~ + 45 degree table tilt L&R
8. 5 spindle speeds
9. chuck guard is standard accessories
10. Optional micro-switch for CE requirement
Specification
Model
SP5213A
Drilling Capacity
13 mm (1/2 '')
Swing
210 mm
Spindle Taper
B16
Spindle Travel
50 mm
Spindle Speeds Steps
5 Steps
Spindle Speed
620 - 2,620 / 740 - 3,140 rpm
Maximumn Distance from Spindle Axis to Surface of Column
105 mm
Maximumn Distance fron Spindle End to Surface of Worktable
220 mm
Maximumn Distance from Spindle End to Surface of Base
300 mm
Column Diameter
46 mm
Height
580 mm
Worktable Size
160 x 160 mm
Worktable Rotate Angle (Left / Right)
+/- 45°
Base Size
290 x 290 mm
Motor Power
250 / 350 w
Net / Gross Wieght
16 / 17 kg
Packing Size
435 x 340 x 230 mm
