Applicable Industries: | Farms; | Waterproof: | IP67; |

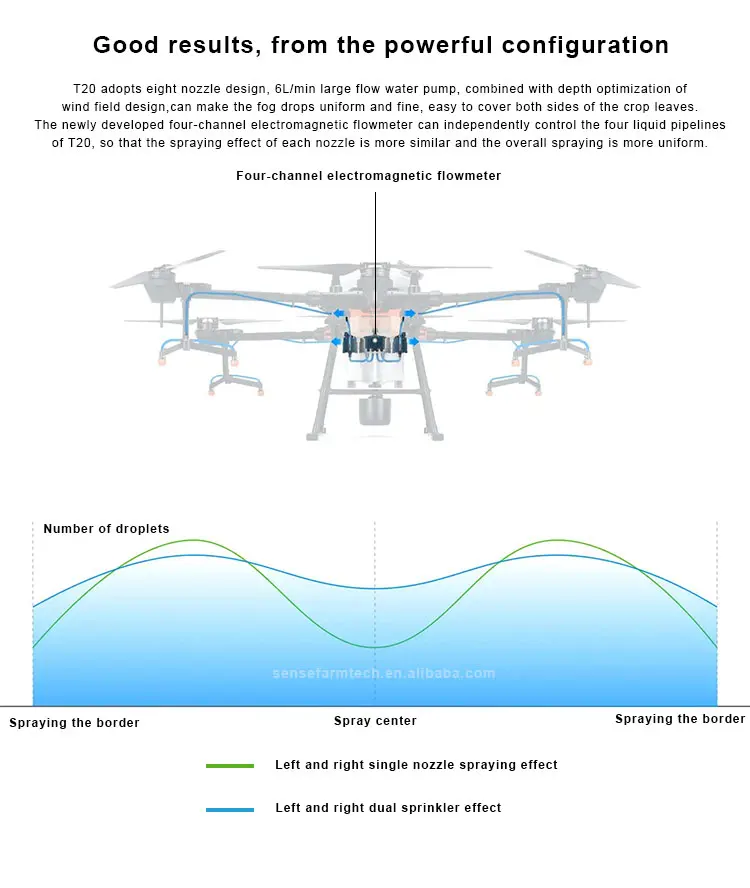

Nozzle: | SX11001VS (standard) , SX110015VS (optional), XR11002VS (optional); | Diameter: | 20 cm; |
Showroom Location: | None; | Machinery Test Report: | Not Available; |
Package Preview: | ; | Brand Name: | SENSE; |
Warranty: | 1 Year; | Keywords: | Agriculture drone, agricultural sprayer, spraying drone; |

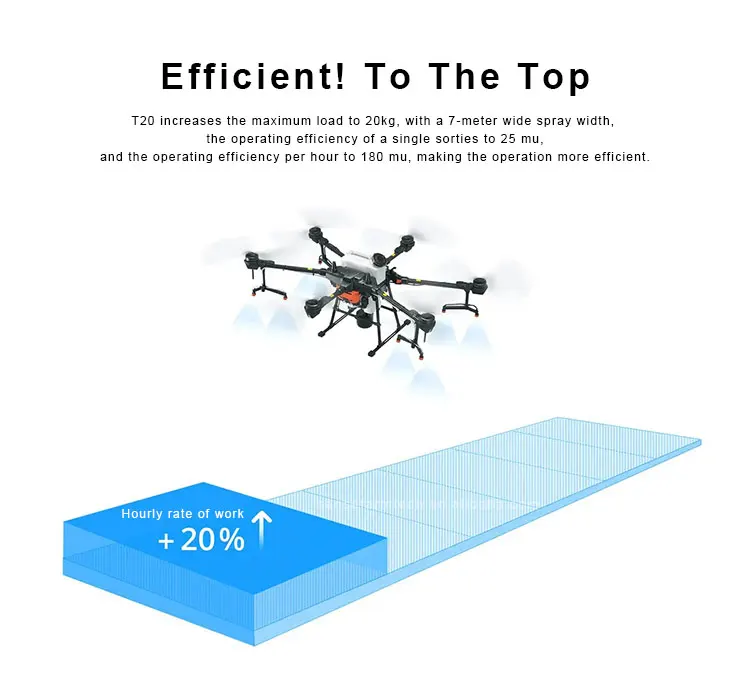

Spray Width: | 7m; | Key Selling Points: | High efficiency; |
Feature: | Intelligent; | Core Components: | Others; |
Single gross weight: | 68.000 KG; | Power: | battery; |

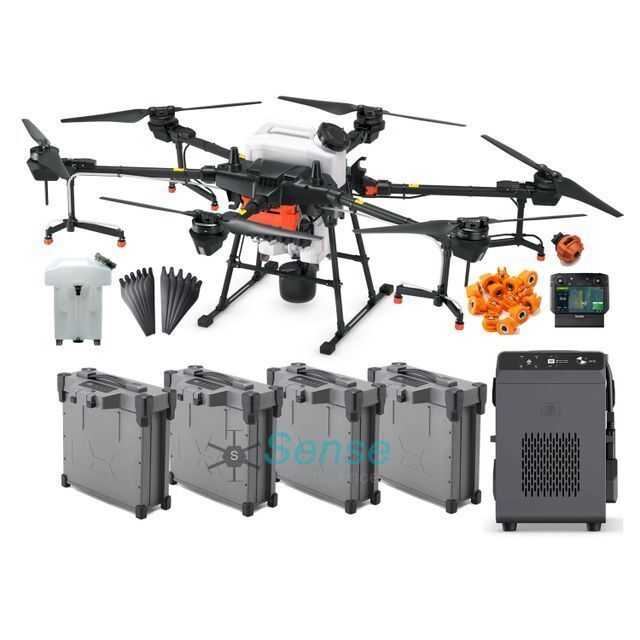

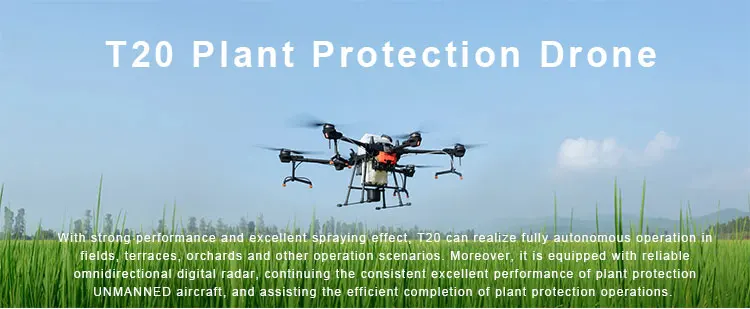

Usage: | Agriculture; | Product Name: | Agras T20 Crop Protection Drone; |
Condition: | New; | Place of Origin: | Guangdong, China; |
Tank capacity: | 20 L; | Single package size: | 58X60X55 cm; |

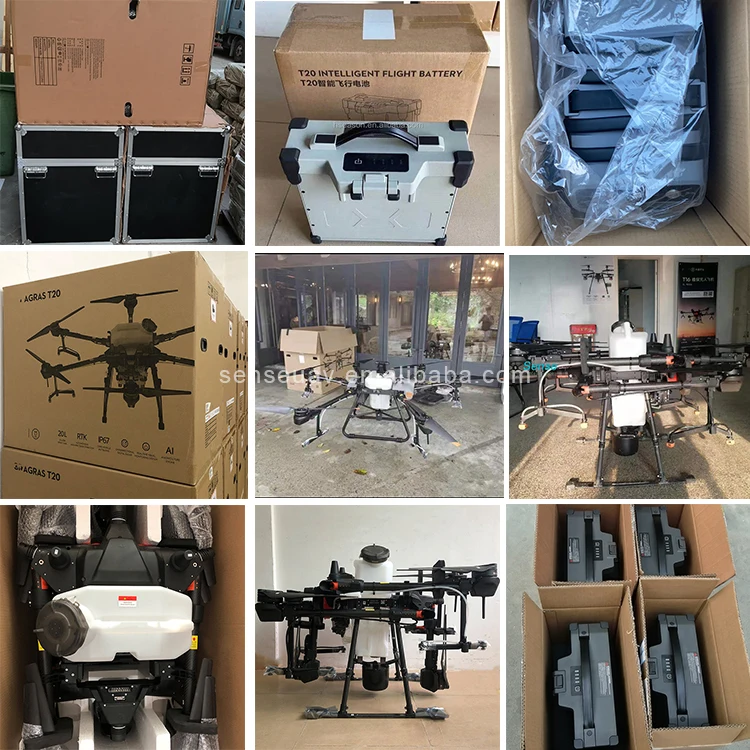

Packaging Detail: | Carton & Wooden Box; | Marketing Type: | New Product 2021; |
Weight: | 40 KG; | Version: | International vision; |
Battery: | 18000mAh; | Warranty of core components: | 1 Year; |
Video outgoing-inspection: | Not Available; | Sprayer Type: | Pump; |
Work Efficency: | 12 hectare/hour; | Selling Units: | Single item; |
Overall weight (excluding batteries) | 26.3 kg |
Maximum take-off weight | Maximum spraying take-off weight: 66.5 kg (near sea level) maximum seeding take-off weight: 78 kg (near sea level) |
Hovering accuracy (good GNSS signal) | D-rtk enabled: horizontal ± 10cm, vertical ± 10cm Disabled: horizontal ± 0.6m, vertical ± 0.3m (Radar function enabled: ± 0.1m) |
RTK/GNSS uses the frequency band | RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1/B2, Galileo E1/E5GNSS: GPS L1, GLONASS F1, Galileo E1 |
The power consumption of the largest | 13000 W |
Hover time | 20.5min (@29000 mAh & take-off weight 36.5 kg) 7.8min (@29000 mAh & take-off weight 66.5 kg) |
Maximum pitch Angle | 15 ° |
Maximum operational airspeed | 7 m/s |
Maximum flat flight speed | 10 m/s (good GNSS signal) |
Maximum wind speed | 8 m/s |
Maximum flight altitude | 4500m |
Recommended working environment humidity | < 93% |
Recommended operating temperature | 0 ℃ to 45 ℃ |

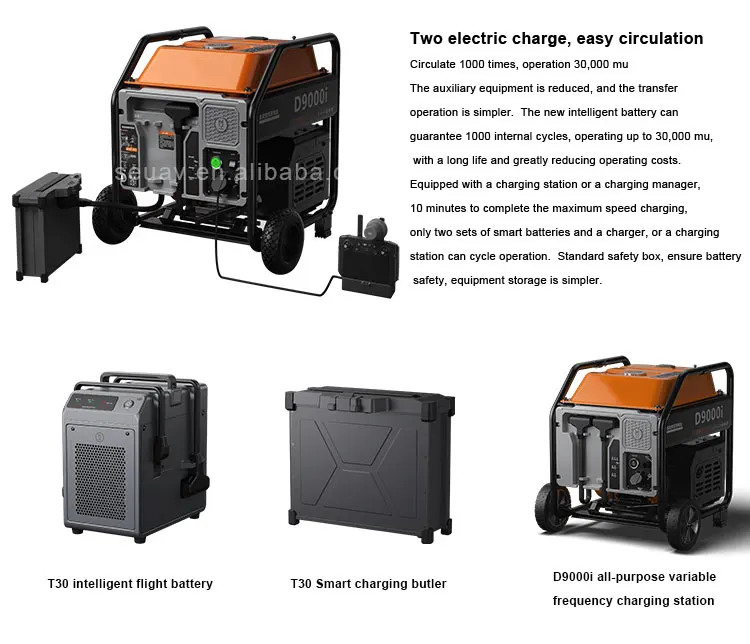

D9000i all-purpose variable frequency charging station | ||
Size | 610 * 520 * 625 mm | |
The weight of the | 65 kg | |
Output channel | 1. Dc charging output 2. 220V 300W auxiliary AC output | |
Dc output parameters | 40V-60 V120 A | |
Ac output parameter | 220/100 V (subject to shipping area) | |
Charging power | 7200W | |
Battery charge time | Charge one battery in 9-12 minutes (T30 battery) | |
Fuel tank capacity | 25 L | |
Start the way | Start with one button and start with hand | |
Charge ripple voltage | 200 mV | |
Maximum engine displacement | 420 CC | |
Maximum engine power | 9000 W | |
Engine rated speed | 3600 RPM | |
Fuel type | 92 # gasoline | |
Refer to the fuel consumption | 0.6L/each T30 smart battery * Charged from 30% to 95% | |
The oil type | SAE 10W-30 |
