Brand Name: | ROADSKY; | N.W: | 500kg; |
Place of Origin: | Jiangsu, China; | Marketing Type: | Ordinary Product; |
Packaging Detail: | Export and sea-worthy is standard special packing for Asphalt Crack Sealing Machine; | Applicable Industries: | Home Use,Retail,Construction works ; |
After Warranty Service: | Video technical support,Online support; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal; |
Fuel Type: | Diesel; | Showroom Location: | Philippines; |
Local Service Location: | Philippines; | Supply Ability: | 100 Sets per Month asphalt crack sealing machine; |
Machinery Test Report: | Not Available; | Material Tank Volume: | 100L; |
Certification: | ISO9001; | Product name: | RS-100; |
Heating Medium: | Conduction Oil; | Warranty of core components: | 1 Year; |
Walking Mode: | Hand Push; | Core Components: | Engine,Gear,Pump; |
Port: | china port; | Video outgoing-inspection: | Provided; |
Power: | 2.2kw; | Weight: | 500 kg; |
UNIQUE SELLING POINT: | High operating efficiency; | Warranty: | 1 Year,1 Year; |
Ejection Speed: | Adjustable; | Condition: | New; |
Generator Model: | Honda ER2500CX; | Dimension(L*W*H): | 1900*1050*1300MM(748*413*512); |
After-sales Service Provided: | Engineers available to service machinery overseas,Video technical support,Online support; |

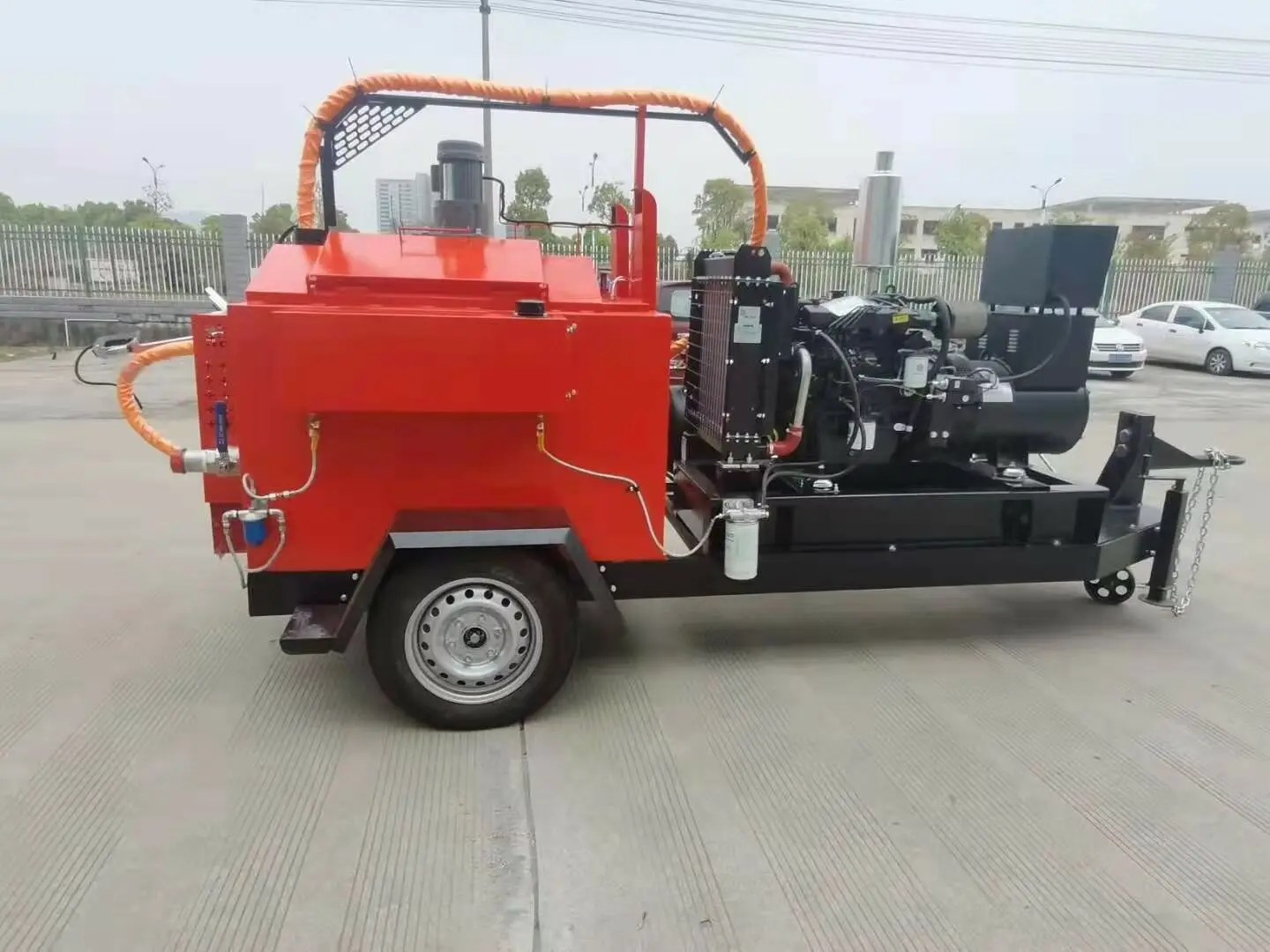

RS-100 asphalt crack sealing machine is mainly used for irregular cracks of asphalt pavement,concrete pavement, bridge expansion joints, sewer, gas pipe buried and paving road links waterproof processing.
Model |
RS-100 |
RS-200 |
Size(L*W*H) |
2150*1250*1460mm |
2150*1300*1450mm |
Weight |
500kg |
700kg |
Volume |
100L |
200L |
Heat Condition Oil Volume |
45L |
45L |
Shaft Length |
Standard4.5m(6moptional) |
EL3600CX/2.8KW |
Generator Set |
Honda ER2500CX |
Honda ER2500CX |
Control System |
ECC |
ECC |
Heating Source |
Diesel Combust |
Diesel Combust |
Molten Material Time |
45minutes |
45minutes |
Sealing Speed |
0-25m/min |
0-25m/min |
Applicable Material |
Asphalt, crack sealing material |
Asphalt, crack sealing material |
Ferry Way |
Trailer Type |
Trailer Type |
Pattern of Movement |
Hand Push |
Hand Push |
Main Parts:
1. Small body, strong function, light weight, convenient operation, easy to move for construction;
2. Heat conduction oil indirect heating material,circulation heat preservation, imported diesel engine as heating source, the material is heated evenly, intelligent sensor detect temperature automatically , make the material not charring,in-variance,shorter melting time, economic, safety and environmental;
3. Whole journey electrical heating discharge hose, free cleaning, fully bending degree, maximally meet the demand of the transverse and longitudinal crack in construction,to ensure the biggest construction area;
4. Whole journey electronic control ,the heating temperature, discharge tube heating,burning machine working,asphalt pump working, fuel status,and so on are all real-time displayed, realize the integration of electronic automatic control;
5. International famous brand gasoline generator, provides a stable and efficient output for the whole machine , works stably and reliably;
6. Humanization design of cracking sealing gun handle,equipped electronic control on the gun handle, the handle can remote control asphalt pump, avoid wasting, healthy and clean;

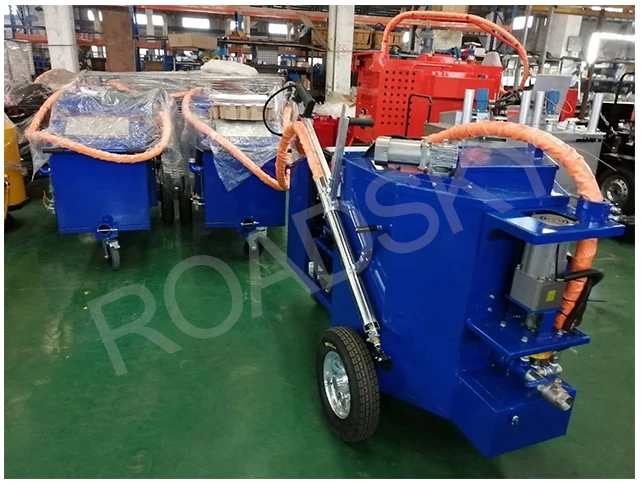

RS-60 asphalt crack sealing machine is deal for repairing in roads, pavements, driveways, concrete foundations, parking lots and other asphalt or concrete surfaces. It’s also suitable of sealing joints of concrete plates and sealing after road excavation works.
Specifications:
Model |
RS-60 |
Generator Model |
YAMAHA ET950 |
Walking Mode |
Hand Push |
Material Tank Volume |
60L |
Fuel Type |
Liquefied Gas |
Heating Medium |
Conduction Oil |
Ejection Speed |
Adjustable |
N.W |
165kg |
Packing Size |
1500X800X1250mm |

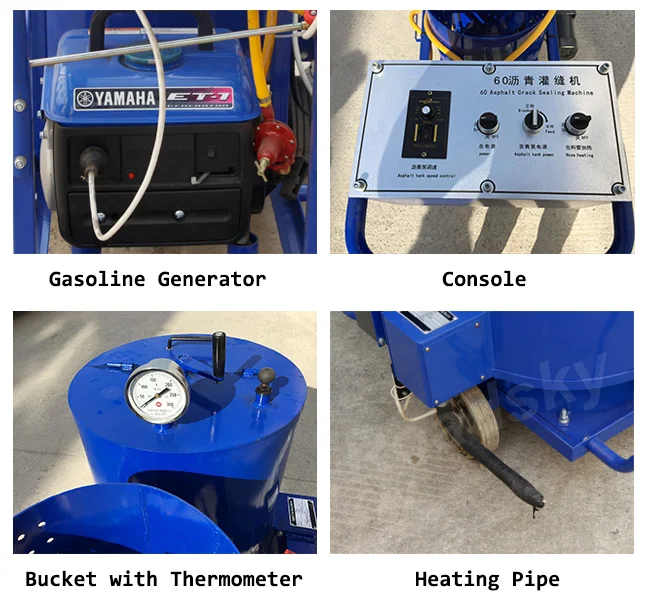

Features:
1. Famous brand electric motor, stable performance, YAMAHA Generator.
2. Liquefied gas heating, easy to operate, concrete road crack sealing machine.
3. Large asphalt tank.
4. All the working process heating without blocking.

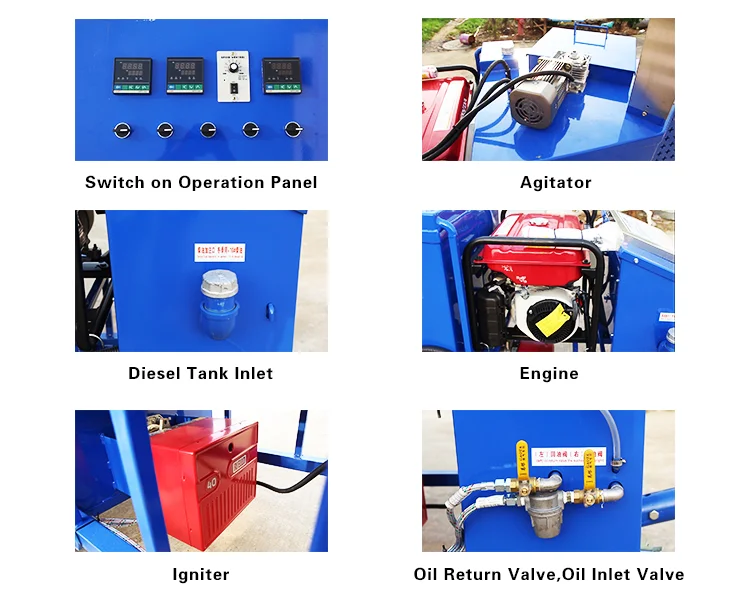

Main Parts:

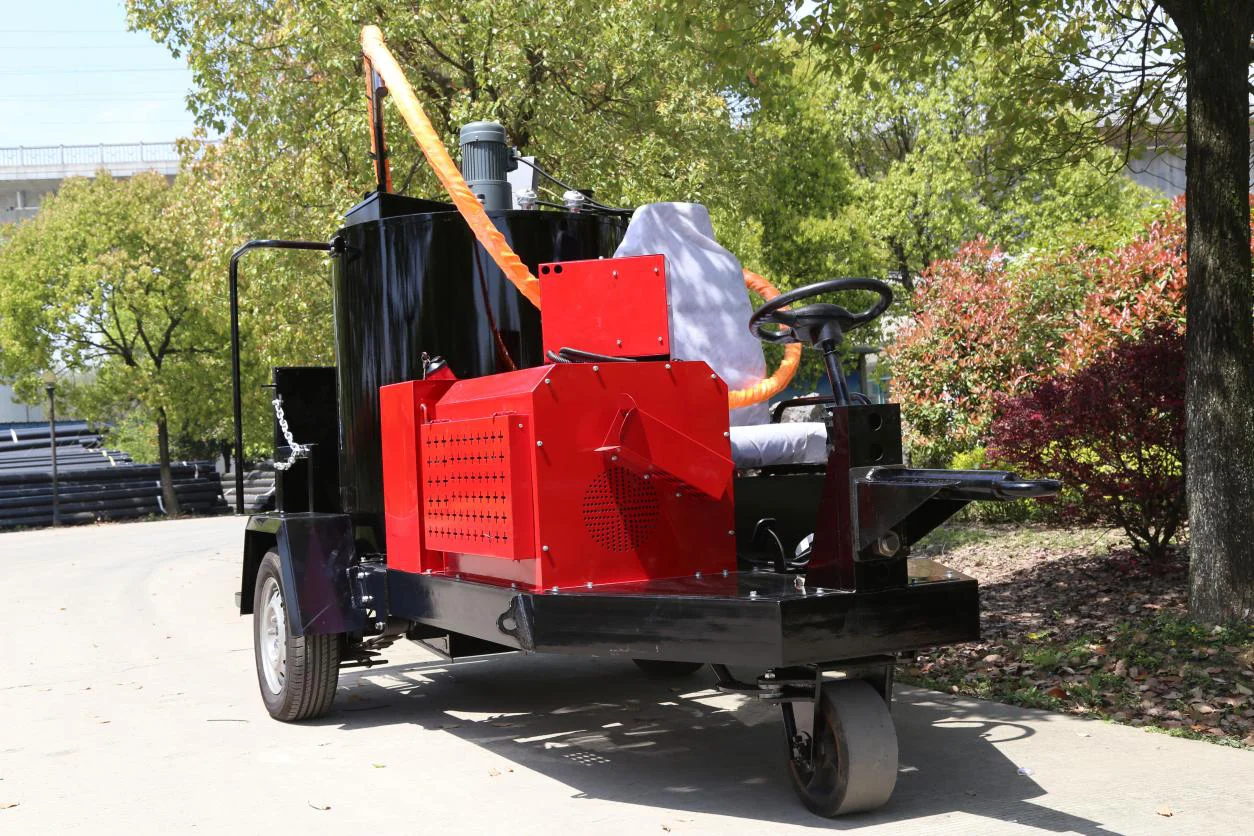

RS-350
Specifications:
Filling material capacity |
350L |
Heating time |
30~40min |
Temperature control range |
0~240℃ |
Output capacity |
adjustable |
Engine group |
Honda 6KW |
Walking mode |
electric drive (driving type) |
Burner |
Imported Italian 445T1 diesel burner from Lia Road, with high combustion efficiency, safety and environmental protection |
Constant temperature control |
SLA-5000 intelligent digital temperature controller, automatic constant temperature control |
Electric heating tube |
7 meters electric heating discharge hose |
Hot melt kettle |
Equipped with a safety device with a thermal oil jacket 350 litre hot melt kettle, and equipped with a safety valve for full circulation, heating faster and more evenly |
Size |
4000*1560*2160mm |
Weight |
1000kg |
RS-500
Size |
390*174*210cm |
Weight |
1850kg |
Engine Power |
30KW |
Engine type |
4 cylinder diesel engine |
Fuel |
Diesel oil |
Diesel fuel capacity |
50L |
Working Pressure |
6-9Mpa adjustable |
Combustor |
Italian RIELLO 445T1 |
Volume |
500L |
Structure of tank | Double layer high insulation structure, insulation layer thickness of 80mm |
Burner ignition mode | Automatic electronic ignition |
Feeding port size | 680mmx350mm, |
Heating mode | The hot melting kettle with protective heat conduction oil sleeve adopts diesel burner to heat the heat conduction oil indirectly to heat the material. The heating is uniform and the material is not easy to age |
Material of pump | 1.The feeding pump is external and hidden in the constant temperature box, synchronizing with the temperature of the rubber material in the kettle to ensure the patency of the rubber material transportation. 2.The connecting pipe between the pump and the electric heating pipe is placed in the kettle, synchronizing with the temperature of the glue material, and equipped with adjustable pressure valve to ensure the safety of personnel. |
Output flow | Maximum output flow of 32 L/min, stepless speed control by the governor. |
RS-600
Thermal oil capacity |
80L |
Generator set |
Honda |
Filling pressure |
6-9Mpa |
Voltage |
220V/380v |
Power |
6KW+6.5KW |
Speed |
3600r/min |
Adjustable discharge speed |
0.5t/h |
Electric heating tube |
7m |
Stirring method Electric stirring |
750W, intermittent stirring |
Hot melt kettle volume |
600L |
Walking mode |
Self-driving, with traction rod |
Burner |
Riello 445T1 |
Constant temperature control |
SLA-5000 intelligent digital temperature controller, automatic constant temperature control |
Heating method |
Indirect heating of heat conduction oil and circulating heating of external oil pump |
Heating time |
40-50 minutes |
Temperature control range |
0-230℃ |
Size |
4014*1660*2160 mm |
Weight |
1650kg |
