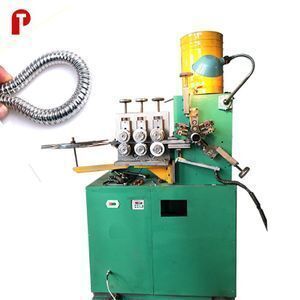

Interlock Corrugated Galvanized Steel Sanitary Connectors Like Shower Hose Conduit Making Machine

Supplier: Platinum Overseas Trade Inc.
Region: Jiangsu, China
Contact: Mr Sotu Zhu
Price: $4850.00 /set
Min. Order: 1 set

Click here to contact

Product details

Diameter range:	8mm-200mm;	Control system:	Control by inverter;
Brand Name:	BOBO;	Thickness of material:	0.17mm-0.50mm;
Port:	Shanghai, China.;	Power(W):	7.5kw;
Delivery Detail:	About 30 days;	Model Number:	FH series;
Production Capacity:	2-3m/min;	Lock profiles:	Interlock or square lock;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,galvanized steel shower hose machine;	Pipe Material:	Carbon Steel;
Certification:	ISO,CE;	Supply Ability:	9 Set/Sets per Month galvanized steel shower hose machine;
Electric system:	380V, 50Hz, 3Phase;	After-sales Service Provided:	Engineers available to service machinery overseas;
Place of Origin:	Jiangsu China (Mainland);	Condition:	New;
Raw material:	Galvanized steel, Stainless steel;	Dimension(LWH):	800X800X1250;
Type:	Galvanized steel;	Paint colour:	Customized;
Packaging Detail:	Interlock Corrugated Galvanized Steel Sanitary Connectors Like Shower Hose Conduit Making Machine will be packed in wooden box.;	item:	galvanized steel shower hose machine;
Weight:	740KG;	Voltage:	440V or CUSTOMIZE;
Forming way:	Spiral lock forming;	Warranty:	12 months;
Application:	cable casing, sanitary hose;	Cutting way:	Manual cutting;

Product Description

What's the product ?

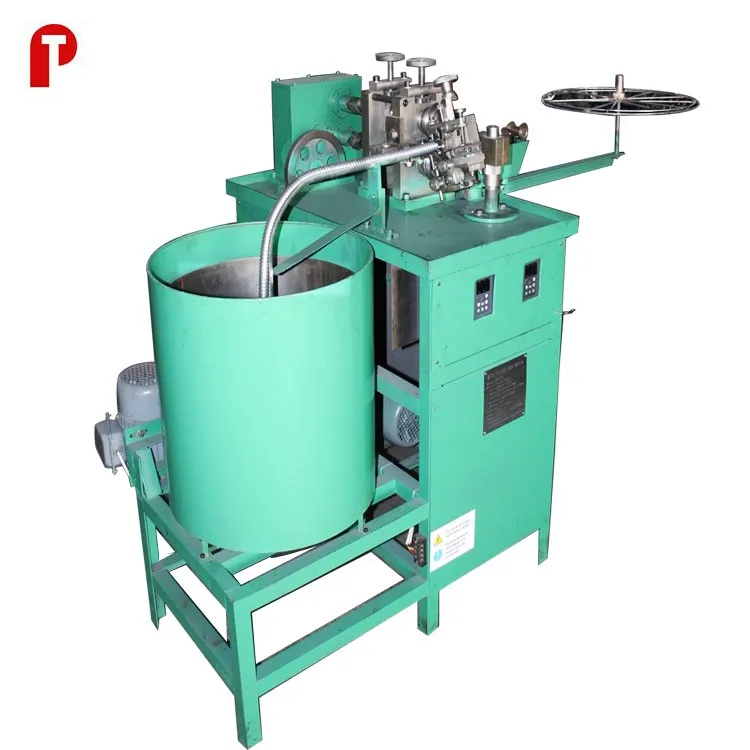

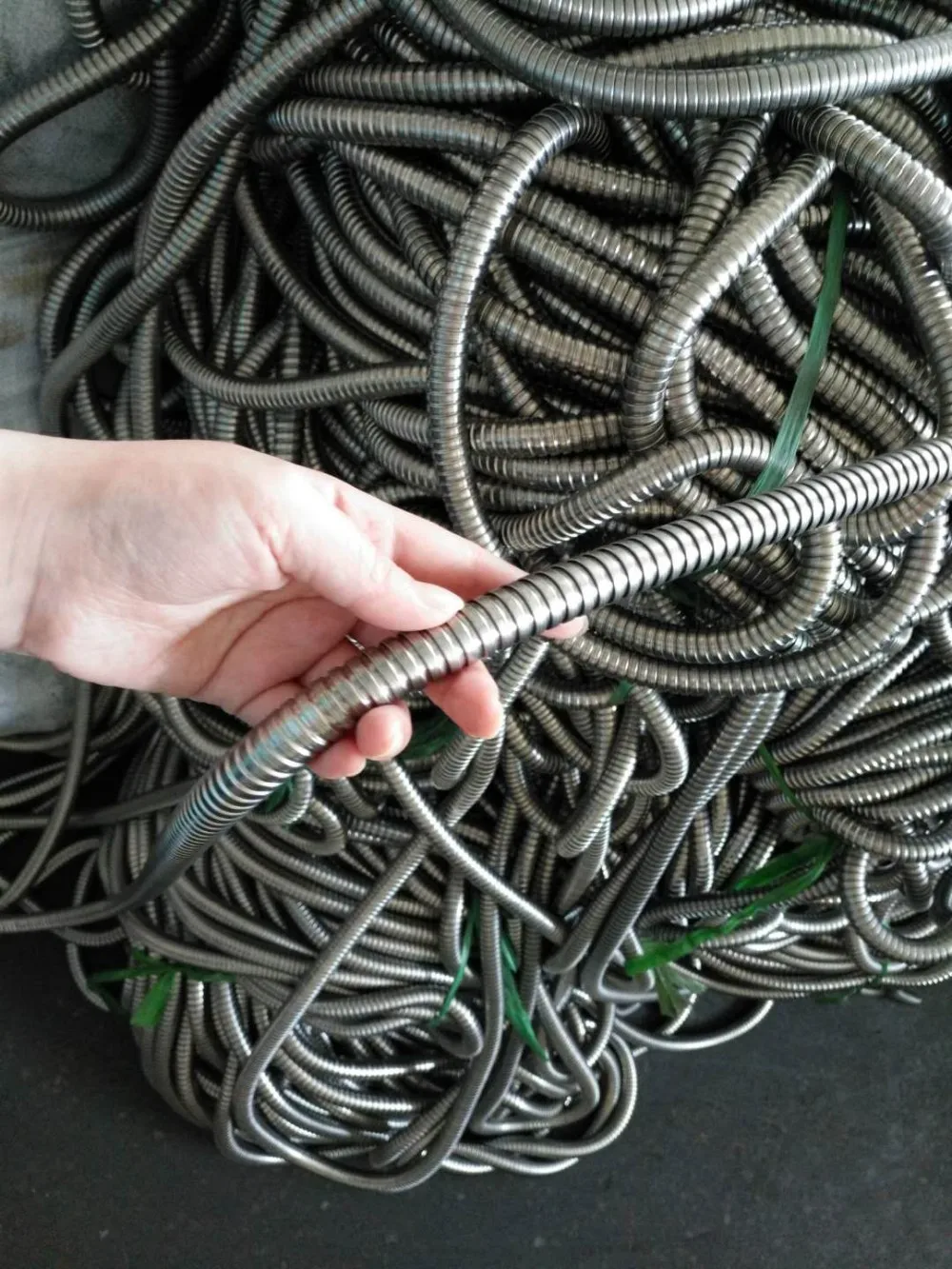

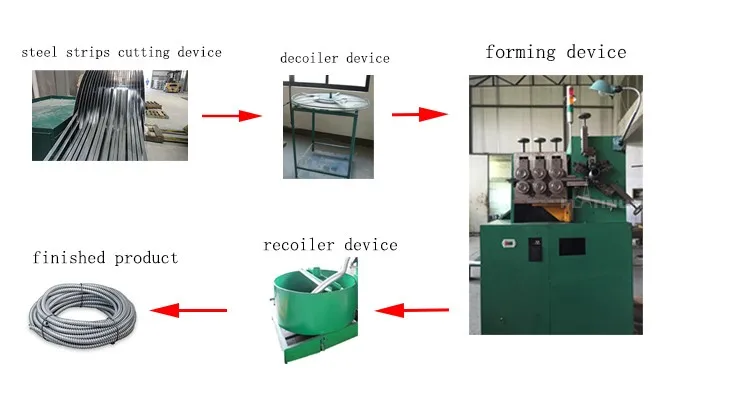

Flexible Stainless Steel Hose Making Machine is used to produce flexible hose from metal strip by spiral lock forming, the metal strip can be stainless steel, galvanized steel and aluminum, etc. And the finished flexible hose will be widely used for electric cable protection casing, shower hose, etc.

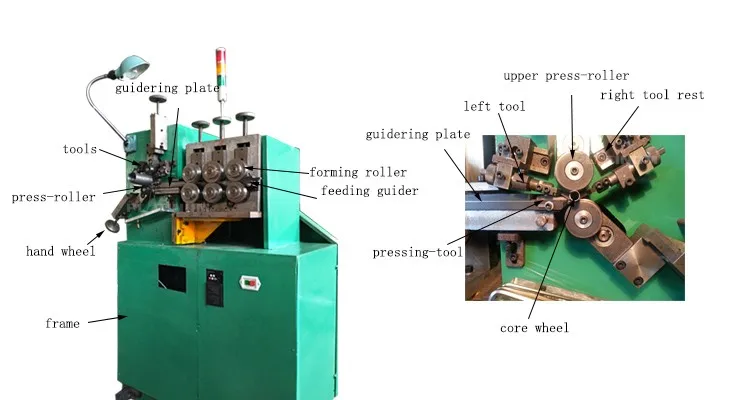

Detailed Images

Main Technical Data
No.	Parameter	Data
1	Diameter range	￠8mm-￠200mm
2	Width of material	8.8-25.5mm
3	Thickness of material	0.17mm-0.50mm
4	Production speed	2.0-2.5m/min
5	Motor power	1.1
6	Electric system	380V, 50Hz, 3Phase
7	Dimension	950mm x 850mm x 1400mm
8	Weight	660-1250kg

How To Work Together

Step 1.

Showing me all your diameter of the hoses you want firstly (If you have pictures will be best ), and then telling me all your requirements.

Step 2.

We will check and recommend you the most suitable machines through communication, then offer to you.(Don't worry about the operating, we can supply the free training here in our plant in China.)

Step 3.

Your satisfied with the price ,quality and our services ,then we have the deal and friendship!

FAQ

1. What’s the suitable material for the flexible hose making?

Re: The suggested material is the galvanized steel strip and the stainless steel strip.

2. What’s the metal strip size do we used for flexible hose making?

Re: The strip width and thickness will be suggested for different hose diameter, we will check and back to you during communication.

3. What’s the difference between interlock (double lock) and square lock (single lock)?

Re: The interlock flexible hose will be more stable compare to square lock profile. It is mainly used for high value product. But the material consumption will be higher also.

4. Can we add the cotton thread or rubber wire inside the lock seam?

Re: Yes, we can add the thread/wire feeding device for such application.

5. How many sets machines do we need for required hose diameter?

Re: For the square lock flexible hose making, we suggest you one machine for one size separately, and for the interlock one, one machine can be used for serval size in range.

6. How to adjust the machine for different diameter?

Re: For different sizes, the forming moulds can be changed accordingly

7. Can you supply the machine for metal strip preparing?

Re: yes, we can supply the strip slitter going with machine for different size stip.

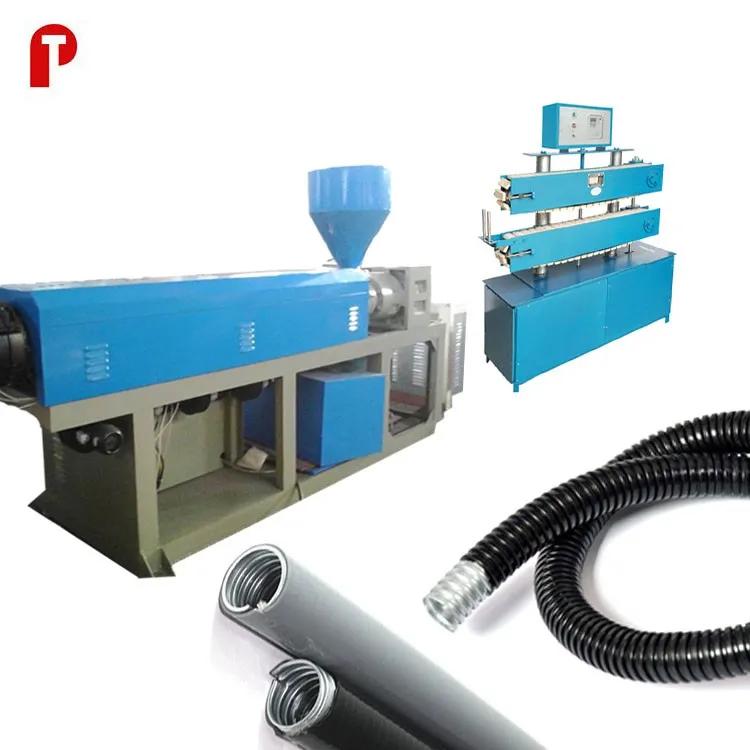

8. Can you supply the machine for hose coating process?

Re: yes, we can supply the PVC coating machine for flexible hose coating, the can be used for up to 8inch hose.

9. Can you supply the operation manual for instructions?

Re: yes, we will supply the operation manual in English going with machine, also we will supply the video for your operation guiding.

10. How about the after-sale service?

Re: we can supply the free training here in our plant in China. Also we can send technicians to your site for installation and training, just the relevant cost should be borne by you.

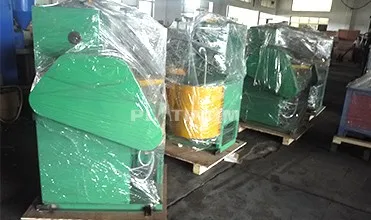

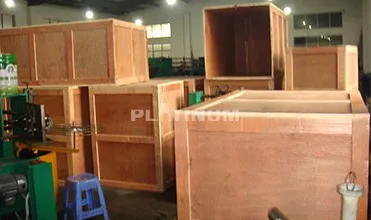

Packing & Delivery
