208V/415V 3phase 100A 125A Power Distribution Unit 24 connectors 90KW C19 PDU for Mining

Click here to contact
Product details
Single gross weight:12.000 KG;Place of Origin:Guangdong, China;
Product Name:Mining PDU;Material:Sheet Metal;
Size:1718*85*80mm;color:Black;
Certificate:ETL CE ROHS SAA;Grounding:Standard Grounding;
Color:Black;Rated Voltage:208V-415VAC;
Package Preview:;Single package size:200X18X18 cm;
Selling Units:Single item;Model Number:OIT-PDU-C1924-OP-LT-125A;
Brand Name:Orient;Warranty:2 Years;
Current:125A;Max output current:375A;
Packaging Detail:PE bag,inner box and outer carton box.;Voltage:208v-415v;
Products Description

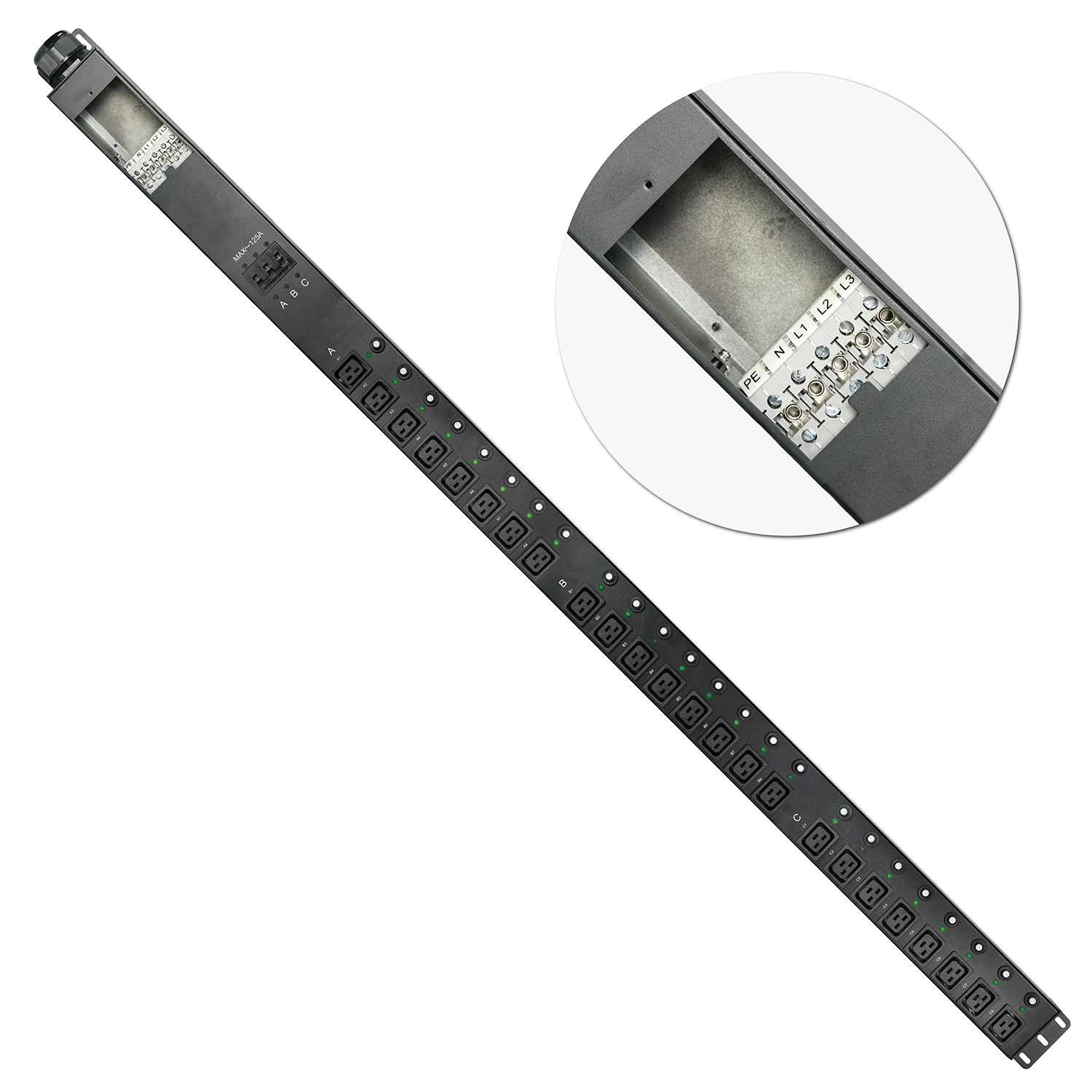

Basic mining PDU 24 ports C19 16A each outlet with Individual Overload Protector
Basic mining PDU 24 ports C19 16A each outlet with Individual Overload Protector
10A to160A Power Distribution Units PDU For mining farm and data center.
* Easily create any rack size by stacking and connecting units
* Can hold any 19'' network switch
* Facilitates cable management, with extra cable gutter
* Central shelve has adjustable height so it can hold different miner types
* C13 or C19 plug or Customized
* Can be Customized with your logo
Input characteristics
Model
OIT-PDU-C1924-OP-LT-125A
Input Voltage
208V 3Phase(LLG)to 208V Delta

380V 3Phase(LLLNG)to 220V Single Phase

415V 3Phase(LLLNG)to 240V Single Phase

208V 3Phase(LLLNG)to 120V Single Phase
Input connector
150Ax5wires (or juction box ,input breaker optional)
frequency
50/60Hz
Total Current
Max 125A
Rating output Voltage
208-300VAC
Max output power for each outlet
Under 280V, Max 3328W per Outlet
Under 240V, Max 3840W per Outlet
Total output power
Max 4432Wx24
Soket Standard
24pcs C19(Customized)
Breaker
125A 3P breaker with UL or CE
Demensions
L*W*H=1718*85*80mm
Net weight
12KG
Certification
ETL Ca/US
Wire specification
UL certification , with flame retardant function
Test items
hi-pot test
PASS
Grounding
PASS
IR
PASS
Product color& material
Product color:
Silver white or black
Plastic flame retardant rating
UL94V-0 grade
Details Images
We can offer: 1)19 inch or actual size PDU 2) Mounting method : Horizontal or vertical installation 3)color:black or silver white 4) 1U or 1.5U 1U=45mm Wide 1.5U=62mm Wide 5) Power Cable :1.5mm2 or 2.5mm2 or other,2 meter or 3 meter cable or other. 6) China,USA,UN,UK,Germany,French, South Africa ,Australia ,IEC C13,IEC C19 Type or comprehensive . 7)Function:OP(Overload protection ),SH(Off-Live Off-Naught switch) ,CB(Mini-Circuit Breaker),OP-SH(Switch of overload protection),LT(Power indicator light) ,FU(Fuse) ,AV(Current and voltage dual digital display),SH-1(Switch overload protection with a protective cover),SP(Multi-functional anti-light anti-surge device) ,or comprehensive .
