100L lab use chemical jacketed glass reactor chiller reactor

Supplier: Shanghai Linbel Instrument Co., Ltd.
Region: Shanghai, China
Contact: Mr Jack zhang
Price: $2299.00 / 1 - 9 sets
$1999.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

After Warranty Service:	Spare parts;	Warranty of core components:	1 Year;
Video outgoing-inspection:	Provided;	Single gross weight:	130.000 KG;
After-sales Service Provided:	Overseas third-party support available;	Brand Name:	Linbel;
Name:	100L lab use chemical jacketed glass reactor chiller reactor;	Material:	304 Stainless Steel;
Machinery Test Report:	Provided;	Condition:	New;
Capacity:	100L,100L;	Key Selling Points:	Easy to Operate;
Showroom Location:	United States;	Automatic Grade:	Automatic;
Type:	Reaction Kettle;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Home Use,Retail,Printing Shops,Construction works ,Energy & Mining;
Single package size:	80X120X140 cm;	Packaging Detail:	WOODEN CASE;
Warranty:	One Year;	Product name:	Chemical Reactor;
Weight:	128;	Power:	180;
Voltage:	220V/50HZ;	Application:	Labs Research;
Core Components:	PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;	Marketing Type:	Ordinary Product;
Dimension(LWH):	8007102600mm;	Glass Material:	Borosilicate Glass 3.3 (GG-17);
Selling Units:	Single item;	Package Preview:	;
Place of Origin:	Shanghai, China;	Heating method:	Electricity Heating;
Machine type:	Double Layer;

100L lab use chemical jacketed glass reactor chiller reactor

Product Description

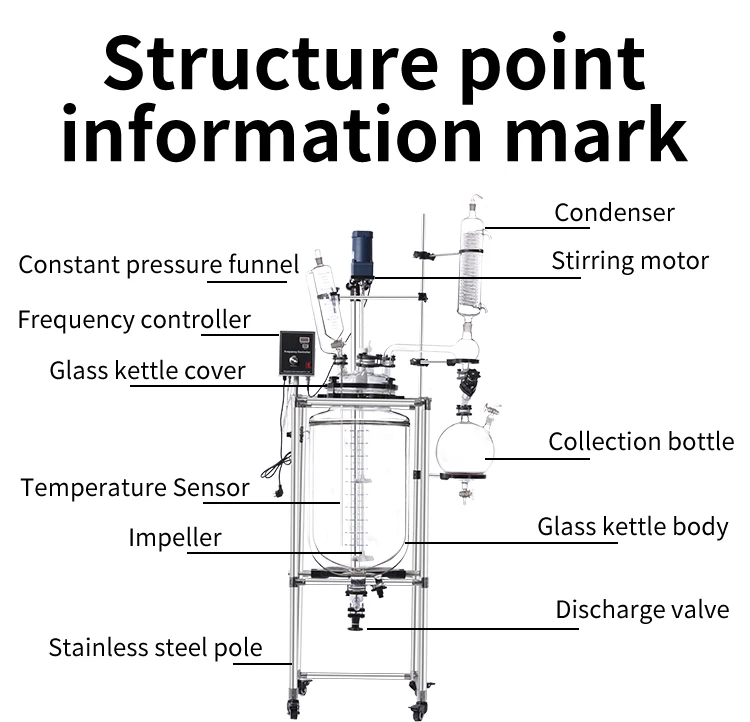

Jacketed glass reactor is mainly applied in Bio-chemical, Pharmaceutical & Fine-Chemical Trades. It can be jointed with vacuum pump, chilling circulator , heating circulator is widely used in the process like Combination, Reaction, Separation,Concentration, etc It is adopted in the industry of chemical products, advanced material synthesis experiment, etc.

Model		GR-100L
Volume(L)		100
Jacket volume(L)		30
Condensation area(m²)		1.1
Feeding tank volume(L)		2L
Recovery tank volume(L)		20
Kettle cover diameter	Impeller diameter	60# flangetype
	Temperature sensor diameter	40# flangetype
	Condenser connection	50# spherical grinding
	Liquid feed inlet	34# standard grinding×1
	Feeding tank interface	40# standard grinding
	Solid feed inlet	80# flangetype
Glass assembly		High borosilicate glass 3.3
Main frame		SUS304
Stirring paddle		Paddle agitator, internal stainless steel, external polytetrafluoroethylene (PTFE), titanium
Motor		For viscous materials, high-power motors can be used
Move method		Lockable casters
Working temperature(℃)		-120℃~300℃
Maximum temperature difference(℃)		≤60
Pressure in kettle(MPa)		-0.1~0.1
Jacket pressure resistance(MPa)		≤0.1
Pressure rise rate of vacuum system		≤2kPa/h
Mixing motor power(W)		Common 200W/ explosion proof 370W
Speed regulation mode		Frequency control
Speed adjustment range(rpm)		0~600
Temperature sensor		PT100
Temperature display accuracy(℃)		±0.1
Temperature range		Water: RT~90℃
		Oil: RT~300℃
Interface size of stainless steel insulation hose		½in external screw thread
Seal material		PTFE
Installation height of discharge valve(mm)		450
Power		220V/110V,50/60Hz
Environment temperature(℃)		5~35
Relative humidity(%)		≤ 65
Size(mm)		800W×710D×2600H
Weight(kg)		128

Main Products

If you are interested in our products, please feel free to contact us.We will do our best to service you.

Company Information

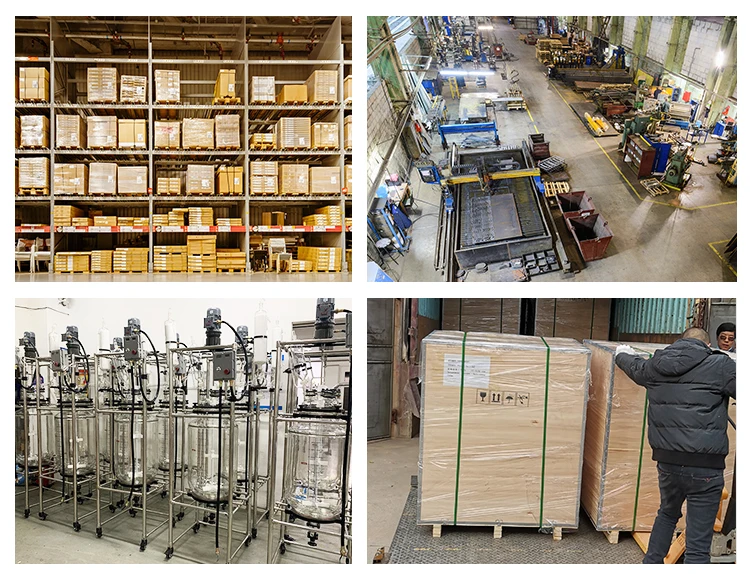

Shanghai Linbel Instrument Co., Ltd. is a high-tech company which has internationally advanced R&D, production and sales ability. Workshop is equipped with modern production lines and world's leading production equipment and computer-controlled monitoring system.our products are low temperature cooling liquid circulating pump, high and low temperature circulation tank, rotary evaporator, glass reactor and low temperature reaction vessel.Integrity management has always been our strategy, with advanced technology to reduce costs and be rewarded high-performing So we look forward to working with you to bring you the best results.

FAQ

Q1. What is your products range?

• Industry water chiller, recirculating cooling chiller, rotary evaporator, alcohol recovery equipment, short path distillation kit, glass molecular distillation equipment, falling film evaporator, jacketed glass reactor and other lab equipment.

• Know more

Q2. Are you trading company or manufacturer?

• We are professional manufacture of lab equipment and we have our own factory.

Q3. Do you provide samples? Is it free?

• Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we will give you our best price including shipping cost.

Q4. Do you have warranty?

• Yes, we offer 1 year warranty for the spare part.

Q5. How long is your delivery time?

• Generally it is within 7 working days after receiving the payment if the goods are in stock. Or it is 15 working days if the goods are not in stock, depending on order quantity.

Q6. What is your terms of payment?

• Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.

(If you are concerned about payment security for the first order, we advise you can place Trade Assurance Order via Alibaba. you will get 100% payment refund if we can't meet agreed delivery time.)

Jack Zhang

Email: info@linbel.com

Web: linbel.en.alibaba.com

cnlinbel.en.alibaba.com

linbel.com

Add: 1000 Chengliu Middle Road, Jiading Dist, Shanghai, China

Don't hesitate to contactg us, this is the product you need. Please click "Send" immediately!
