Single gross weight: | 5.000 KG; | Application: | Industrial; |
Model Number: | DT-6650; | Brand Name: | CEM; |
Insulation: | 1000V; | Power: | Electronic; |
Place of Origin: | Guangdong, China; | Packaging Detail: | wooden case or other security package; |
Product name: | Multifunction Installation Tester; | LOOP Resistance: | 0.00~999Ω; |
Continuity Beeper: | Continuity; | Color: | Blue or Gray; |
Voltage and Frequency: | 80-500V/(45-400Hz); | Customized support: | OEM,ODM,OBM; |
Package Preview: | ; | Single package size: | 55X40X26 cm; |
RCD Testing: | Test current; | Selling Units: | Single item; |
Display: | 3.5" TFT color LCD display with 320x240 pixels; | Low OHM: | 4 .0Ω, 40.00 Ω,400.0Ω; |

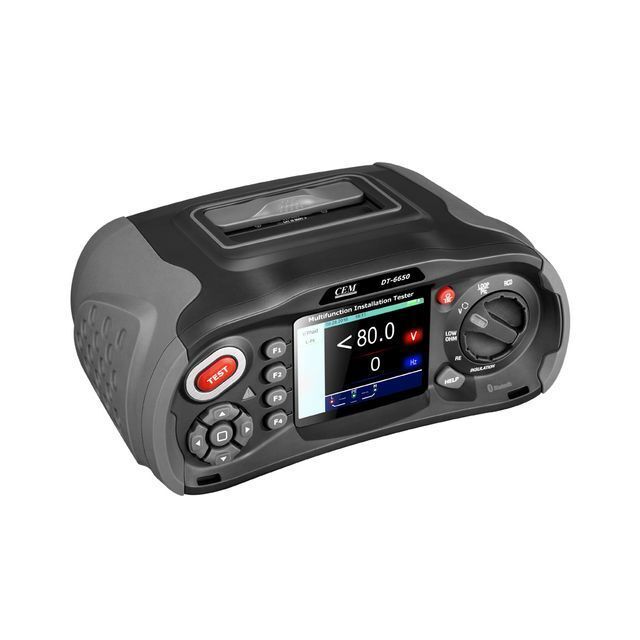

Multifunction Installation Tester
DT-6650 rugged Multifunction Installation Tester with 3.5" TFT color LCD display, provides insulation resistance, earth resistance, loop impedance, voltage, RCD, PFG and PSC testing. It is designed with software system and ensure the safety of electrical installations in domestic, commercial and industrial applications. 6650 series can ensure the fixed wiring is safe and correctly installed. It's fast sampling and dual display, clear symbols and exceptionally wide viewing angle are for easy and safe readings.
Features |
3.5" TFT color LCD display with 320x240 pixels |
Fast high current loop test |
Variable RCD current mode for customized settings |
PASS/FAIL indication for RCD tests |
Select voltage measurement between L-N, L-PE and N-PE |
Support SD memory and USB and Bluetooth interface |
Internal Memory |
Safe Earth Volt Touchpad detects raised earth voltages >50 V, indicating potential dangerous situations. |
Slim probes designed with test button |
For easy, always reliable and accurate compensation of test leads and mains cords. |
Specifications | |||||
Insulation | |||||
Terminal Voltage | Range | Max Resolution | Accuracy | Test Current | Short circuit current |
125V (0% ~ +10) | 0.125~4000MΩ | 0.001MΩ | ±(2%+10) | 1mA@load 125kΩ | ≤1mA |
250V (0% ~ +10) | 0.250~4000MΩ | 0.001MΩ | ±(2%+10) | 1mA@load 250kΩ | ≤1mA |
500V (0% ~ +10) | 0.500~4000MΩ | 0.001MΩ | ±(2%+10) | 1mA@load 500kΩ | ≤1mA |
1000V (0% ~ +10) | 1.000~4000MΩ | 0.001MΩ | ±(3%+10) | 1mA@load 1MΩ | ≤1mA |
Low OHM | |||||
Range | Resolution | Accuracy | Max. open Circuit Voltage | Overload Protection | |
4.000Ω | 0.001Ω | ±(1.5%+30) | 5.8V | 250Vrms | |
40.00Ω | 0.01Ω | ±(1.5%+3) | |||
400.0Ω | 0.1Ω | ||||
Continuity Beeper | |||||
Range | Resolution | Operation Resistance | Max. open Circuit Voltage | Overload Protection | |
Continuity | 0.01Ω | Resistance≤35Ω | 5.0V±1VDC | 250Vrms | |
Short circuit current | ≥200mA | ||||
LOOP Resistance | |||||
L-PE (Hi-Amp) | |||||
Range (Ω) | Max. Resolution (Ω) | Accuracy | |||
0.00~999 | 0.01 | ±(4% of reading+6 digits) | |||
L-PE(No Trip): Measuring Current:15mA / Range of the Voltage Used: 195V a.c.~260V a.c.(56,60Hz) | |||||
Range (Ω) | Resolution (Ω) | Accuracy | |||
0.00~999 | 0.01 | ±(5% of reading+6 digits) | |||
L-N: Measuring Current:2.0A / Range of the Voltage Used:195V a.c.~260V a.c.(56,60Hz) | |||||
Range (Ω) | Max. Resolution (Ω) | Accuracy | |||
0.00~999 | 0.01 | ±(4% of reading+4 digits) | |||
RCD Testing | |||||
Test current | Accuracy | ||||
x1/2, x1, x2, x5 | 1.5%~ -9% | ||||
Voltage and Frequency | |||||
Measurement Range (V)/ AC-DC | Resolution | Accuracy | |||
80-500V/(45-400Hz) | 1V | ±(2% of reading+2 digits) |
Size (H x W x D): 220mm x 96.5mm x 60.5mm
Weight: 631g
Accessories: Test leads, 8 x1.5V“AAA” batteries, USB cable and Software, gift box with carrying case.
