abrasive electroplated diamond coated steel hand file

Supplier: Tianjin Shanfeng Tools Co., Ltd.
Region: Hebei, China
Contact: Ms Jessie Cao
Price: $0.50 / >=50 pieces
Min. Order: 50 pieces

Click here to contact

Product details

File shape:	10 different shapes;	Type:	Mini Files,Knife Edge Files,NEEDLE FILES,Rectangle Files,Half Round Files,Round Files,Square Files,Triangle Files,File Cleaners;
Shape:	Round,Square,Flat,triangle,Taper,Half Round,Single triangle,Knife shape,Pointed plate,Oval;	Package Preview:	;
Diamond size:	120 mesh;	size:	5mm180mm,4160mm,3*140mm;
Name:	Electroplated diamond files;	Selling Units:	Single item;
Single package size:	20X2X2 cm;	Shank length:	180mm(Other models160mm,140mm);
Place of Origin:	Tianjin, China;	Handle Type:	Round Plastic;

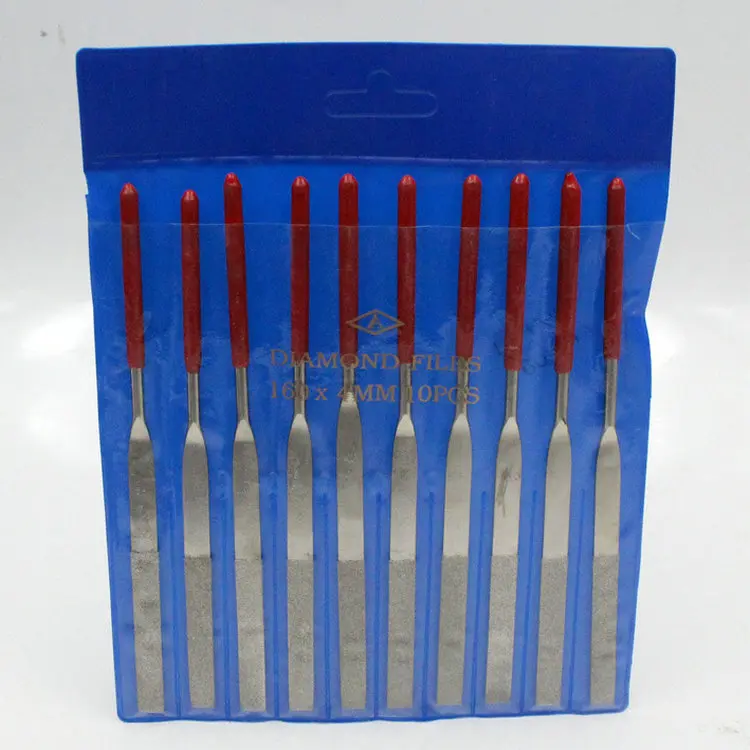

Customized support:	OEM;	Packaging Detail:	abrasive electroplated diamond coated steel hand file Plastic packaging,Carton;
knife handle:	45# steel;	Model Number:	D5mm*180mm;
Style:	diamond file;	Thickness:	Other;
Material:	diamond sand;	Single gross weight:	0.030 KG;
Finish:	Electroplated nickel;	Grade:	high quality;

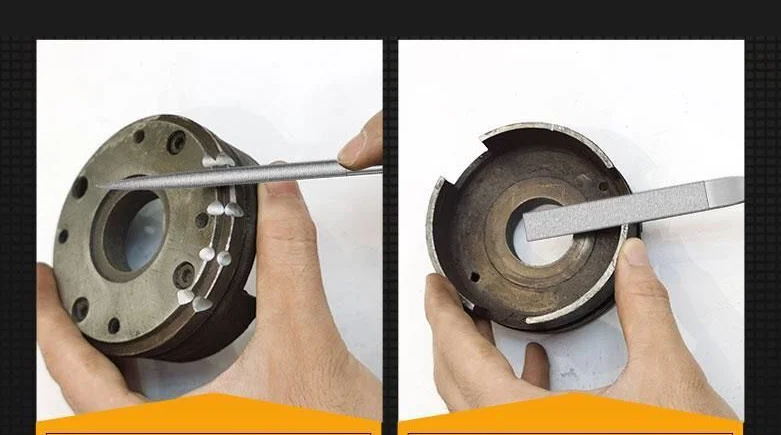

Brand Name:	shanfeng;	use:	remove burrs, create fillets, expand holes, file grooves, etc.;
Shank diameter:	D5mm(D4 mm, D3mm);	processing technic:	Iron shank electroplated nickel,;

product name :

abrasive electroplated diamond coated steel hand file,The use of diamond files

Diamond file

product specification :

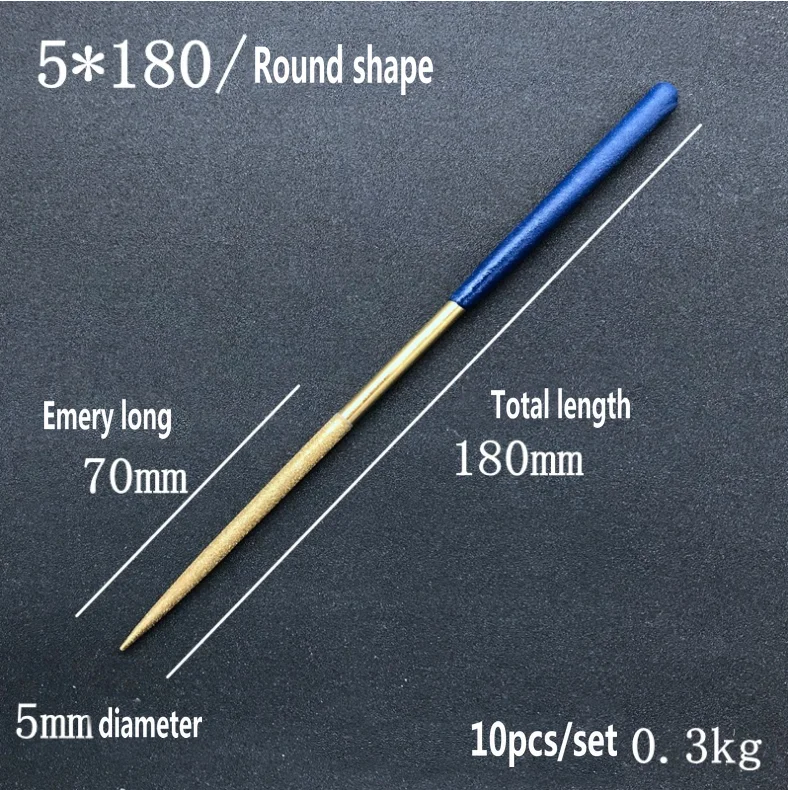

D5 mm*180mm*70mm

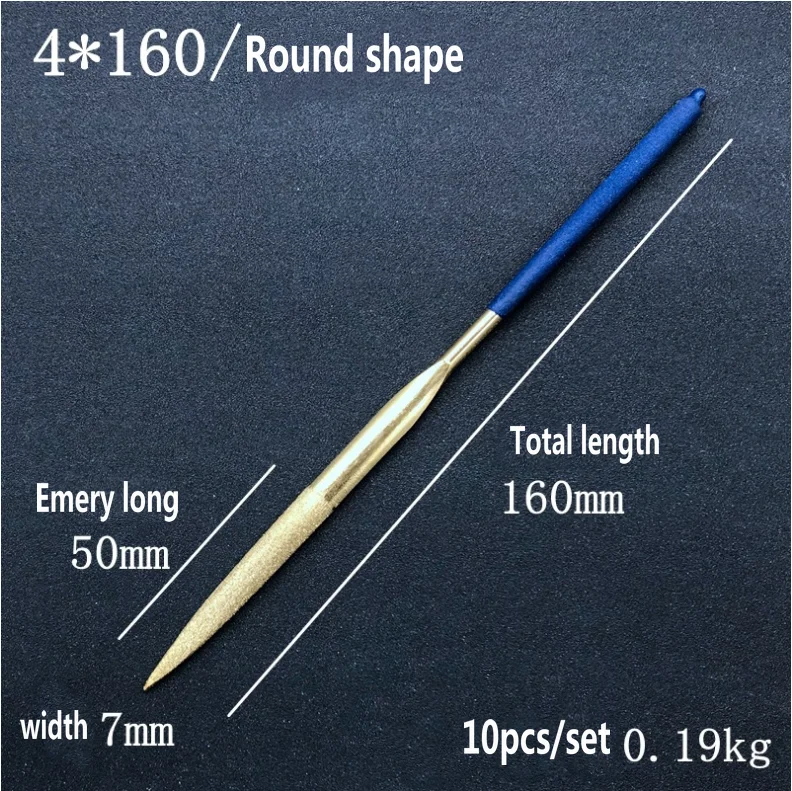

D4 mm*160mm*60mm ,

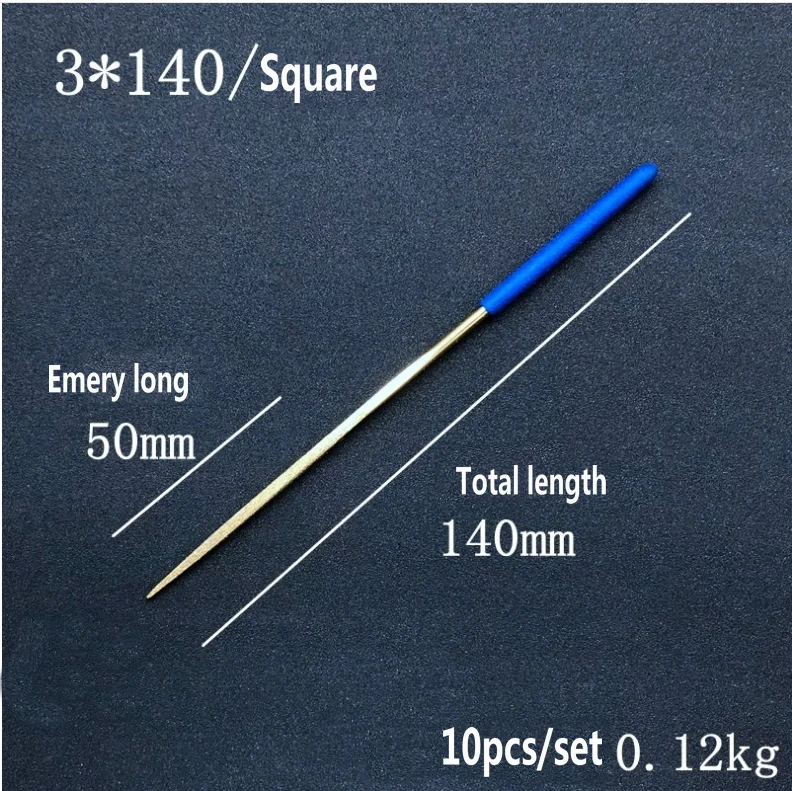

D3 mm*140mm*50mm )

Product details :

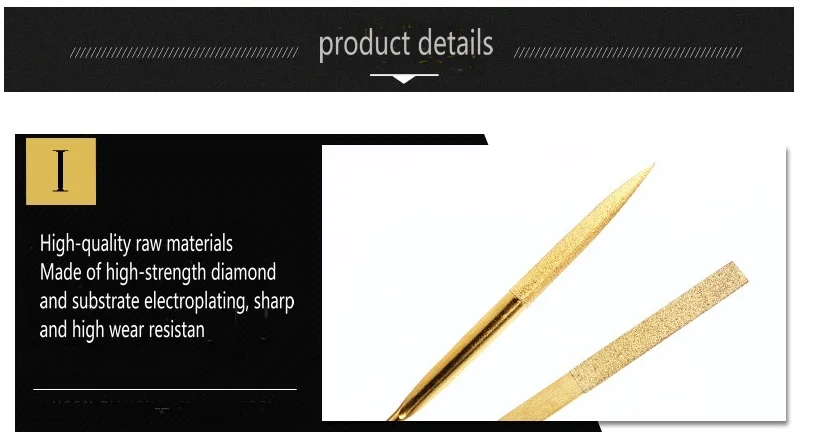

plating diamond sand on the surface of the 45# steel .Good wear resistance , efficient , it’s suitable for high hardness metal filing .

Feature :

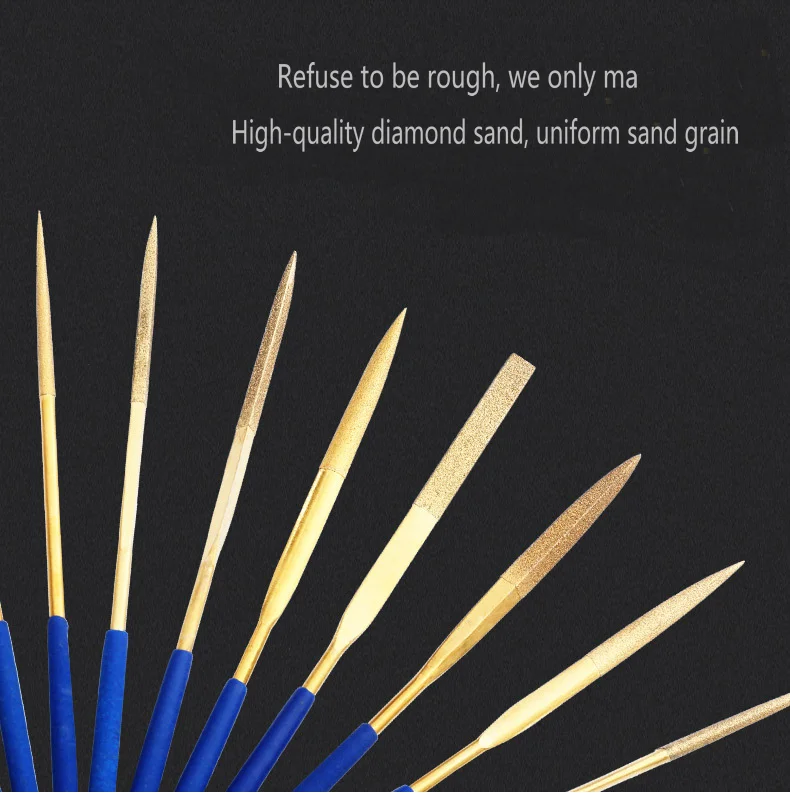

wear resistance , closely arranged diamond sand , not easy to fall off , keep sharp , permanent wearability .

Surface finish :

Nickel plating of matrix , shone , high finish ; the finish of file part affected by emery grain size . Emery finer , rasp finish better . Grain size are 120# and 150# .

Electroplated diamond triangle, flat plate, file
Material:	electroplated diamond sand
Diamond size:	120 mesh (Other models150mesh)
knife handle	45# steel
Shank diameter	D5mm (Other models D4 mm, D3mm)
Shank length	180mm ( Other models160mm,140mm)
Length of working surface	70mm ( Packaging,50mm)
Purpose:	can file any metal, trim the details of small tools

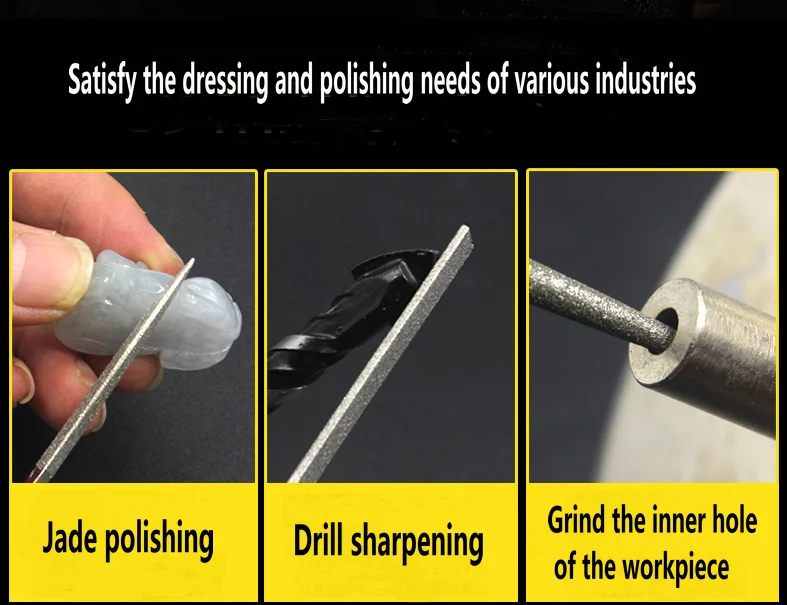

The use of diamond files

( 1 ) Used for grinding ordinary flat glass , frosted glass , sandblasted glass , embossed glass , wired glass , hollow glass , sandwich glass , glass brick . Grain size is between 120 - 150 . Not collapse , high efficiency . After polishing the glass surface bright and clean.

( 2 ) Used for cutting and grinding granite , basalt , limestone , dolomite , sandstone , marble etc. Sharp enough, grinding speed, for long hours using , not collapse . After polishing the stone surface is bright and clean.

( 3 ) Used for grinding over glaze , under glaze , blue and white , wall tile , tile , sanitary ware , ceramic knob , silicate containing products , silicon wafer etc . Sharp , for short hours using , not collapse . After polishing the ceramic surface bright and clean .

4 ) Used for polishing other metal products , such as aluminum , stainless steel etc . If polishing rapid steel and tungsten steel , plating CBN sand , because CBN sand is more sharp .

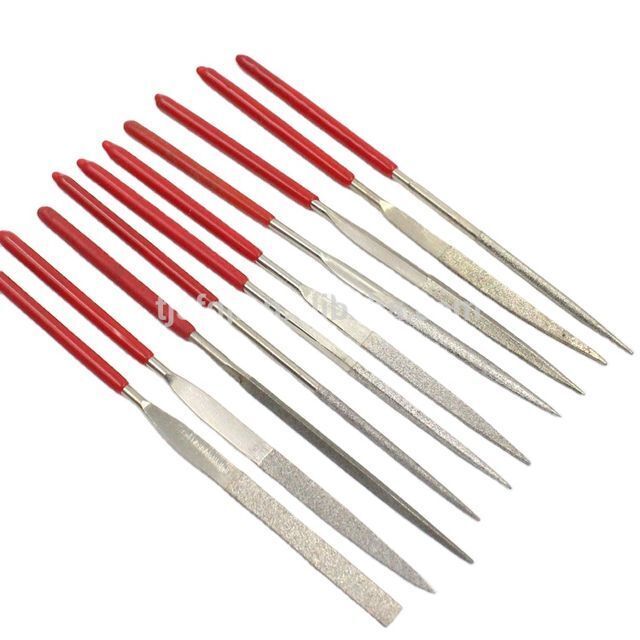

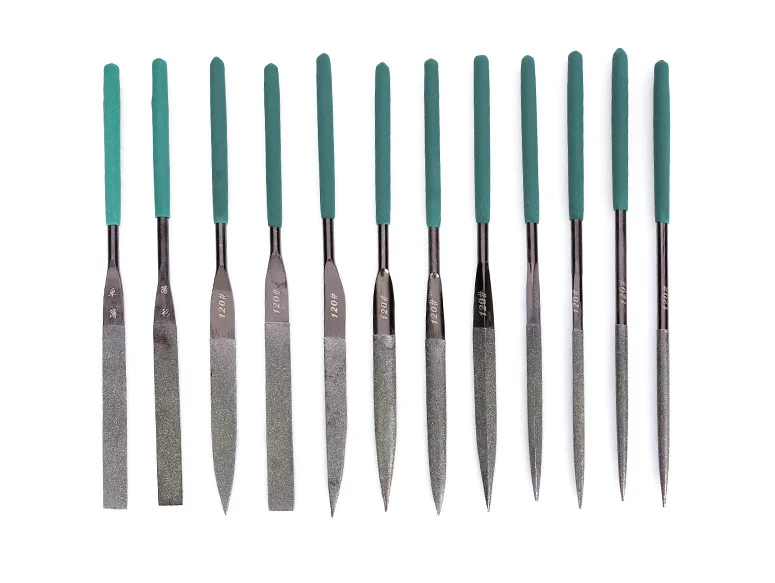

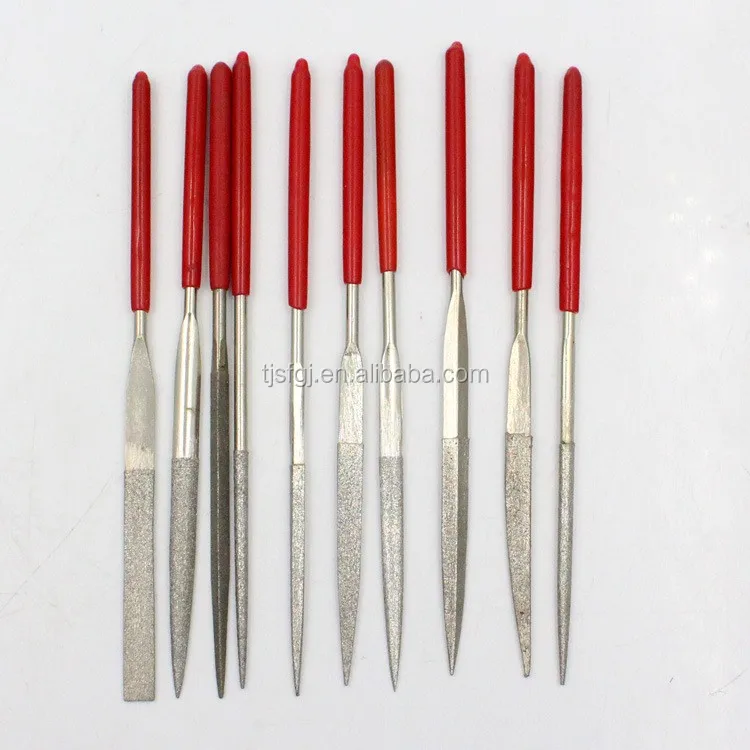

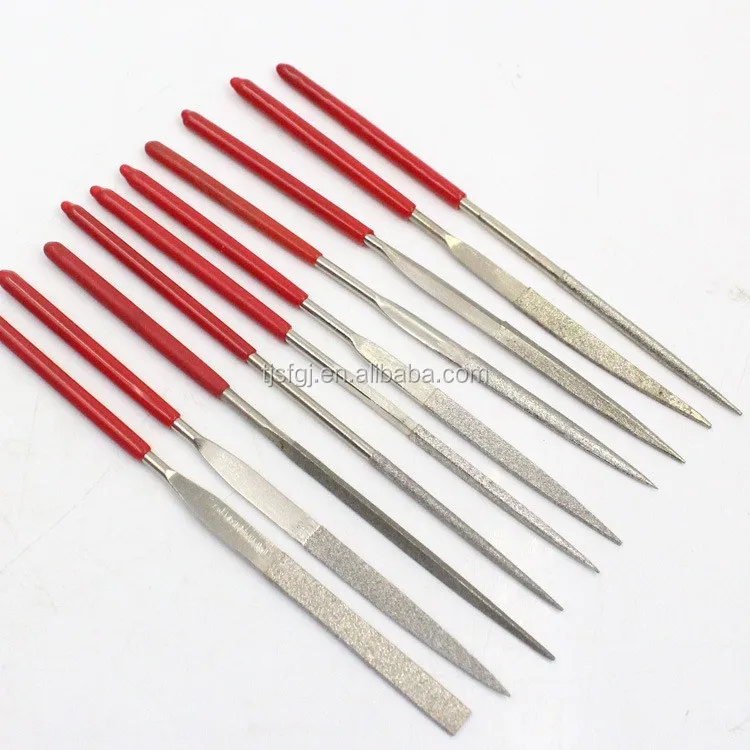

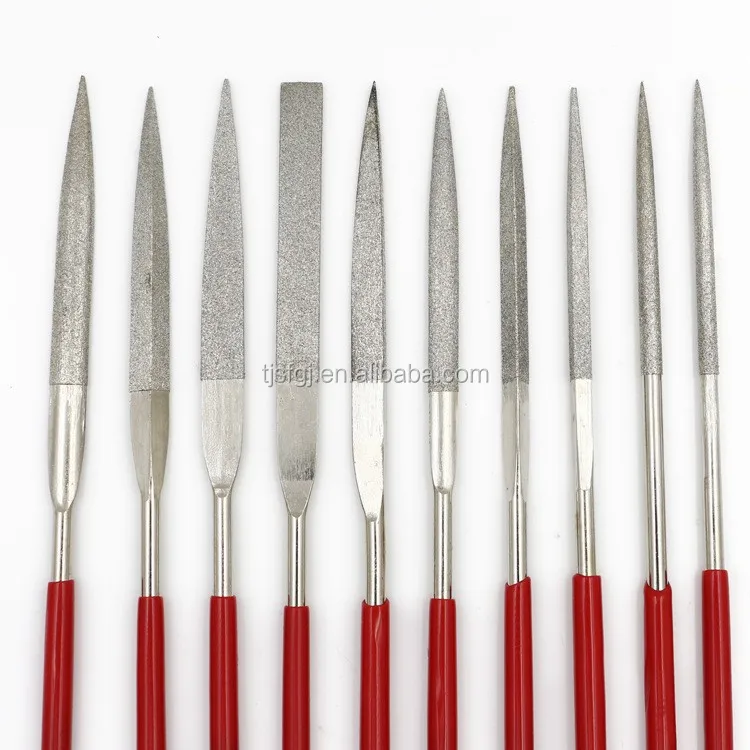

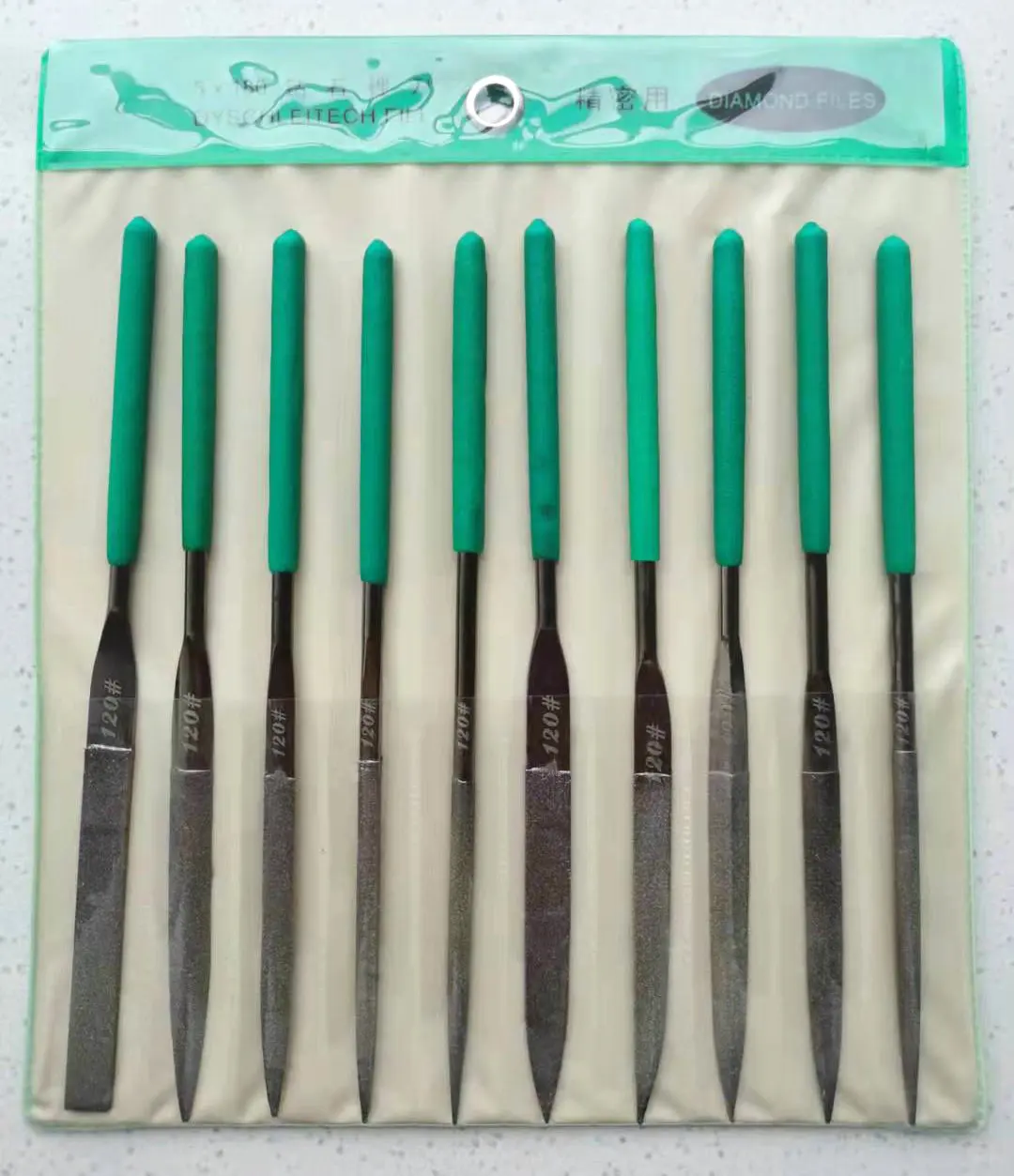

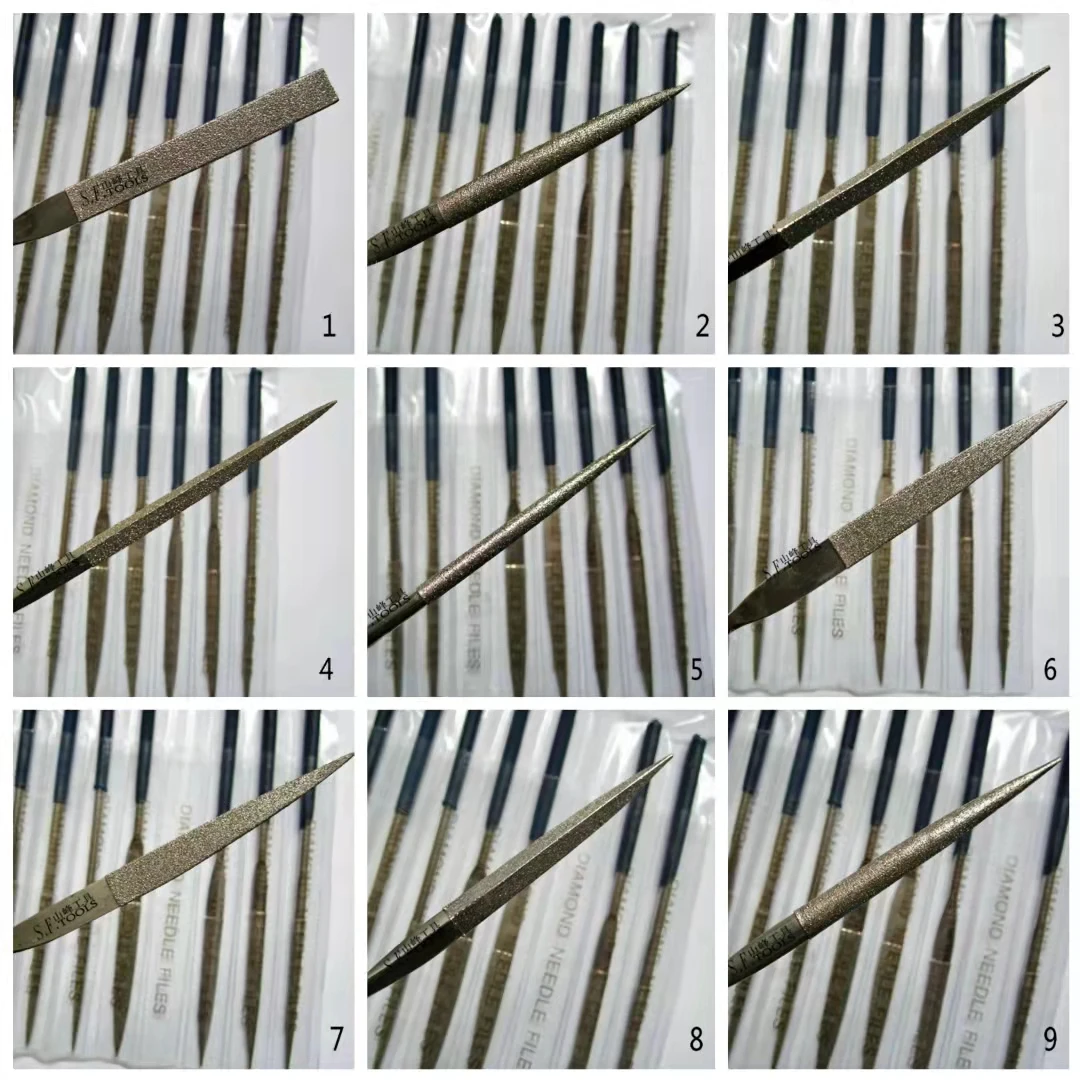

Electroplated diamond file of three kinds of specifications 10 shapes of diamond files:
1. Square flat file
2. Half-round file
3. Triangular file
4. Square file
5.Round file
6. Pointed flat file
7. Knife file
8. Single triangle file
9. Double-sided semicircular file

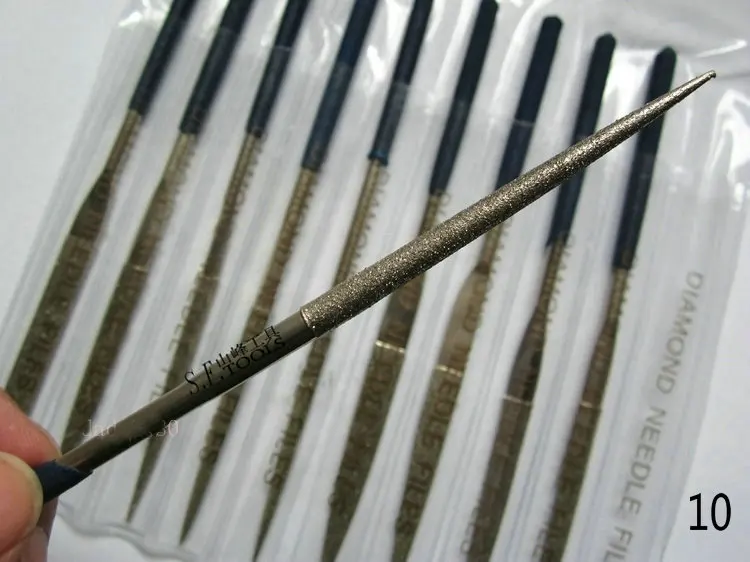

10. Oval file

There are many different shapes of the diamond file , for grinding various shapes of workpiece.

Especially for process ceramic and mold have played a great role.

Our company is specialized in producing diamond grinding wheel dressing tools and PCD / PCBN blades, knives companies, we have 20 years of production history, has been to develop high-tech as the leading diamond tools, and now a semi-automated large-scale professional production advantages. In recent years, we continue to introduce advanced technology and equipment, strict control of production processes, quality improvement, now has been a number of units designated as supporting units

The main products are diamond grinding wheel dressing tools, measuring tools, measuring tools, grinding tools, and PCD \ PCBN inserts, CNC tool. These products are automotive, instrumentation, machine tools, bearings, hydraulic machinery industry precision machining ideal dressing tools.

Not only can we make any different size according to your request drawings, samples of customized products, but also on the diamond tool for restructuring and special design based on customer intent.
