laboratory industrial 6kw 9kw 12kw 18kw 24kw 36kw 48kw 72kw electric steam generator boiler machine

Supplier: Zhengzhou Nanbei Instrument Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Admin Zhang
Price: $660.00 /set
Min. Order: 1 set

Click here to contact

Product details

Structure:	Water Tube;	Single package size:	80X90X165 cm;
Output:	Steam;	Place of Origin:	Henan, China;
Showroom Location:	None;	Voltage (V):	380;
Single gross weight:	180.000 KG;	Brand Name:	Nanbei;
Machinery Test Report:	Provided;	Dimension:	735470920;
Core Components:	other;	Steam Production:	.;
Dimension(LWH):	735470920;	Packaging Detail:	Export standard packing for laboratory industrial 6kw 9kw 12kw 18kw 24kw 36kw 48kw 72kw electric steam generator boiler machine;
Temperature (℃):	151/170;	Evaporation capacity (Kg):	10;
Warranty of core components:	1 Year;	Video outgoing-inspection:	Provided;
Fuel:	electric heating;	Applicable Industries:	laboratory;
Usage:	Industrial;	Style:	VERTICAL;
Marketing Type:	electric steam generator;	Model:	NB-6;
Pressure:	High Pressure;	Power (KW):	6;
Condition:	New;	Weight:	KG;
Water volume(Kg):	16;	Steam pipe diameter(mm):	DN15;
Selling Units:	Single item;	Type:	Natural Circulation;
Pressure (Mpa):	0.4/0.7;	Warranty:	1 Year;
Key Selling Points:	Automatic;

Products Description

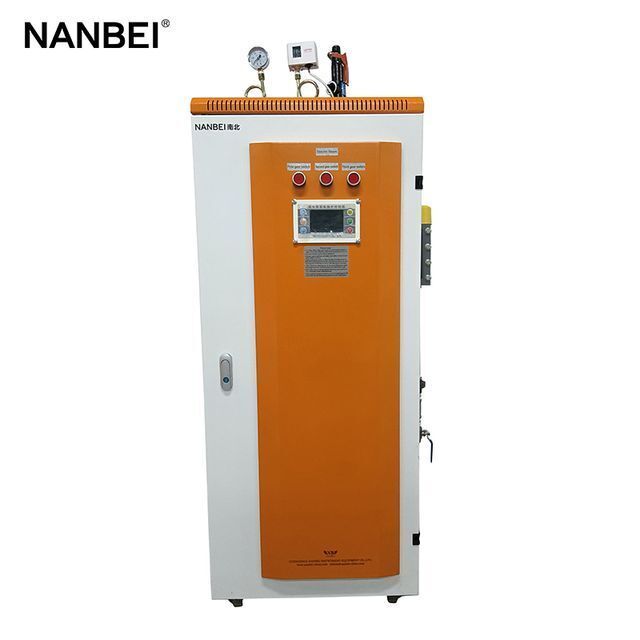

electric steam generator boiler

This kind of electric steam can be widely applied in school biological laboratory, washing equipment (drycleaning machines, washing machines, ironing machine, iron, etc.), biological equipment (reactor, fermentation, sterilization tank), packaging machinery equipment (hotels, hostels, Schools, mixing station),
hot water supply, canteen steamed rice, food sterilization, legumes food processing, maintenance and other concrete surfaces.

Contact Us For More Details

Feature

6kw 12kw 24kw 36kw 48kw 72kw electric steam generator

1. Products fitted with a safety valve by boiler inspection institute, even in the case where the control system is not flexible, when the pressure exceeds the set pressure, safety valve will open automatically to prevent the boiler explosion due to excessive pressure.
2. The product is equipped with low water protection, when water supply is stopped, the boiler will automatically stop working, to prevent the boiler dry electric heating element damage and even lead to burnout phenomenon.
3. The products contains leakage protection, even in the case of a short circuit caused by improper operation of the boiler, the boiler will drain automatically cut off the circuit, timely good control lines.

Related Products

Contact Us To Get The Latest Price

Specification

Model	Power	Evaporation capacity	Water volume	Temperature(℃)	Voltage	Pressure(Mpa)
NB-6	6KW	10Kg	16KG	151/170	380V	0.4/0.7
NB-9	9KW	16Kg	16KG	151/170	380V	0.4/0.7
NB-12	12KW	22Kg	20KG	151/170	380V	0.4/0.7
NB-18	18KW	33Kg	20KG	151/170	380V	0.4/0.7
NB-24	24KW	40Kg	24KG	151/170	380V	0.4/0.7
NB-36	36KW	48Kg	24KG	151/170	380V	0.4/0.7
NB-48	48KW	66Kg	29KG	151/170	380V	0.4/0.7
NB-72	72KW	102Kg	29KG	151/170	380V	0.4/0.7

Operation

1. The operating system of boiler is automatic controlling, the water tank connected to the boiler comes, boiler power is connected, just press the key, the boiler will run automatically 2. The detailed installation methods, operating procedures, maintenance and other information please contact us to get the "automatic electric heating steam boiler operating instructions".
