GAOKEView USB Portable Visualizer Classroom Portable Document Visualizer For Education And Business

Product details
Using:presentation;Certificate:CE,ROHS,ISO9000;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;Model Number:GK-9000V;
Optical zoom:10x;Place of Origin:Zhejiang, China;
Brand Name:Gaoke;Weight:3.5kg;
Port:Shanghai, Guangzhou, Hangzhou, Shenzhen, Ningbo or other Chinese ports;Size:490*375*135mm;
Control:RS-232, USB;Packaging Detail:Two pieces Visual Presenter per carton,with double kraft paper carton. Packing Size of Visual Presenter: 440*200*550mm Gross weight of Visual Presenter: 6kg Net weight of Visual Presenter: 5kg;
Digital zoom:10x;Supply Ability:5000 Sets per Month;
Sensor:Cmos;Resolution:720P,XGA,SXGA,1080P;
Color:Black or White;
Product Description

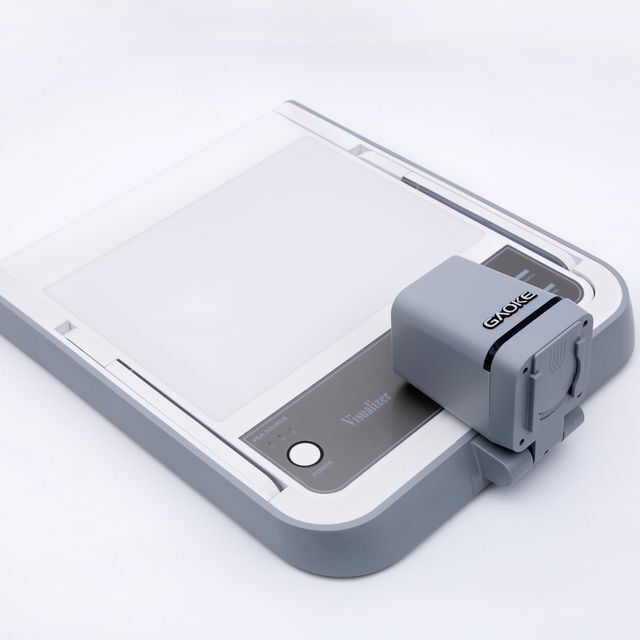

GAOKEView USB Portable Visualizer Classroom Portable Document Visualizer For Education And Business

Gaoke Visualizer hardware features:


1. 12V low-voltage power supply adapter.
2.  Freely retractable appearance, ultrathin appearance size, with certificate of appearance patented design.
3.  Long-life LED lighting system adapted.
4.  Touch controlling panel, with waterproof and dustproof.
5.  Output computer signal when Visualizer closed.
6.  With simple multimedia control function(optional).
7.  Remote controller is in card slot of visualizer, easy to get and store.
8.  Lens with negative slot.


Gaoke Visualizer software-Management system feature of high definition image scanning features:

1. Image and video capture (Auto create My Folder, various dealing with picture).
2. Picture can be switched to OFFICE document and saved, (including Word,Excel,Powerpoint),picture can     be also saved as PDF document.
3. Picture switched to Email.
4. Image-text recognization (OCR), can be printed and output.
5. Record video and generate AVI format to save.
6. Be used with whiteboard software, realize full screen ,dynamic, real-time mark and save.


Detailed Images
Model
GK-9000V
GK-9000V-II
GK-9800
Lens
3.2 mega pixels
22-26x optical zoom,10x digital zoom
3.2 mega pixels
22-26x optical zoom,10x digital zoom
8 mega pixels
22-26x optical zoom,10x digital zoom
Focus
auto
auto
auto
Light
LED side lights, base light(optional)
LED side lights, base light(optional)
LED side lights, base light(optional)
Input
VGA*2,video*1(optional),
audio
VGA*1,H DMI*1,video*1
(optional),audio
VGA*1,H DMI*1,video*1
(optional),audio
Output
VGA*2,video*1(optional),
audio
VGA*1,H DMI*1,video*1 (optional),audio
VGA*1,H DMI*1,video*1
(optional),audio
Control
RS-232
RS-232
RS-232
TV line
≥800TV lines
≥800TV  lines
≥1200TV lines
N.W./G.W.
5kg/6kg±0.5kg
5kg/6kg±0.5kg
5kg/6kg±0.5kg
Dimension
closed≤470*370*135(mm)
openning≤410*375*550(mm)
closed≤470*370*135(mm)
openning≤410*375*550(mm)
closed≤470*370*135(mm)
openning≤410*375*550(mm)
Package size
440*200*550(mm)
440*200*550(mm)
440*200*550(mm)
Control model
remote controller and touch panel
remote controller and touch panel
remote controller and touch panel
Digital function
screen split,freeze, auto focus,positive/negative,auto white balance,text/image mode,mirror image,image storage and replay,USB output
one key auto aujustment,
screen split,freeze, auto focus,positive/negative,auto white balance,text/image mode,mirror image,image storage and replay,USB output
support annotation without PC,screen split,freeze, auto focus,positive/negative,auto white balance,text/image mode,mirror image,image storage and replay,USB output
Power
12V DC power adapter
12V DC power adapter
12V DC power adapter
Optional :
1.3.5" LCD screen
2.card reader
3.streaming function(can read files in USB disk or play video)
4.MIC
5.simple controller
6.output function
7.TV function
8.aluminum alloy suitcase
